BUSSMANN Data Surge Protection Device: Single Phase, 48V DC, 1 Poles, 2 Wires, L-G/L-L - DIN Rail Internal-Mount Data & Signal SPDs
BUSSMANNDIN Rail Internal-Mount Data & Signal SPDs

BUSSMANN Data Surge Protection Device: Single Phase, 48V DC, 1 Poles, 2 Wires, L-G/L-L

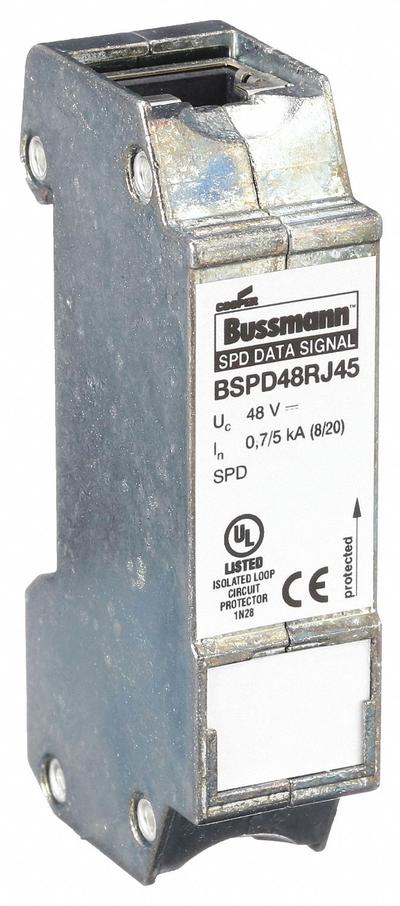

The BUSSMANN BSPD48RJ45 is a single-phase data surge protection device (SPD) designed for DIN-rail internal mounting. This 2-wire unit provides L-L mode protection with a max. continuing operating voltage of 48 V DC…

SKU 3G-OTH-23509

Merek
BUSSMANN
Item
Data Surge Protection Device: Single Phase, 48V DC, 1 Poles, 2 Wires, L-G/L-L
Kategori
DIN Rail Internal-Mount Data & Signal SPDs
Tersedia untuk Dipesan
Stok tersedia & bea cukai ditangani
  • 6–10 business days door-to-door; Bea Cukai clearance typically 3–5 business days.
  • Invoicing in IDR or USD. Bank transfer and corporate PO accepted.
  • Dikirim ke: Jakarta, Surabaya, Bandung, Medan, Batam
Harga dagang sesuai penawaran — balasan dalam 24 jam
Jumlah
WhatsApp seorang insinyur
Tidak perlu akun — permintaan penawaran Anda langsung masuk ke tim insinyur kami. Akun gratis memungkinkan Anda melacak penawaran dan memesan ulang lebih cepat.
Pengiriman ke Seluruh Dunia
Pengiriman udara & laut
Lembar Data Atas Permintaan
Spesifikasi teknis
Penawaran 1 Hari
Balasan dalam 24 jam

Spesifikasi Teknis

BUSSMANN
Manufacturer Part Number
BSPD48RJ45
Type
L-G/L-L
DC
48V
Poles
1
Wires
2
Voltage
48V DC
Filtering
No
Mounting Style
DIN-Rail
Number of Wires
2 Wires
Enclosure Material
Zinc Die Casting
Modes of Protection
L-L
Voltage Protection Rating
600V (L-G)
Max. Continuing Operating Voltage
48 V DC
Lihat Lembar Spesifikasi Lengkap

Dokumen Teknis

Tidak ada dokumen teknis yang tersedia untuk produk ini.
Minta dokumentasi →
Tidak yakin ini adalah suku cadang yang tepat? Minta rekomendasi.

Butuh bantuan pemasangan atau rekayasa?

Instalasi, komisioning, rencana pemeliharaan, desain sistem, dan penawaran produk + layanan bundel — satu tim menangani cakupan penuh.
Bicaralah dengan seorang insinyur

Ajukan pertanyaan

BUSSMANN Produk
3G Electric (S) Pte. Ltd. — Singapore

Deskripsi Produk

The BUSSMANN BSPD48RJ45 is a single-phase data surge protection device (SPD) designed for DIN-rail internal mounting. This 2-wire unit provides L-L mode protection with a max. continuing operating voltage of 48 V DC and a voltage protection rating of 600V (L-G). It features a zinc die-casting enclosure and does not include filtering.
