FAN04240 à 56

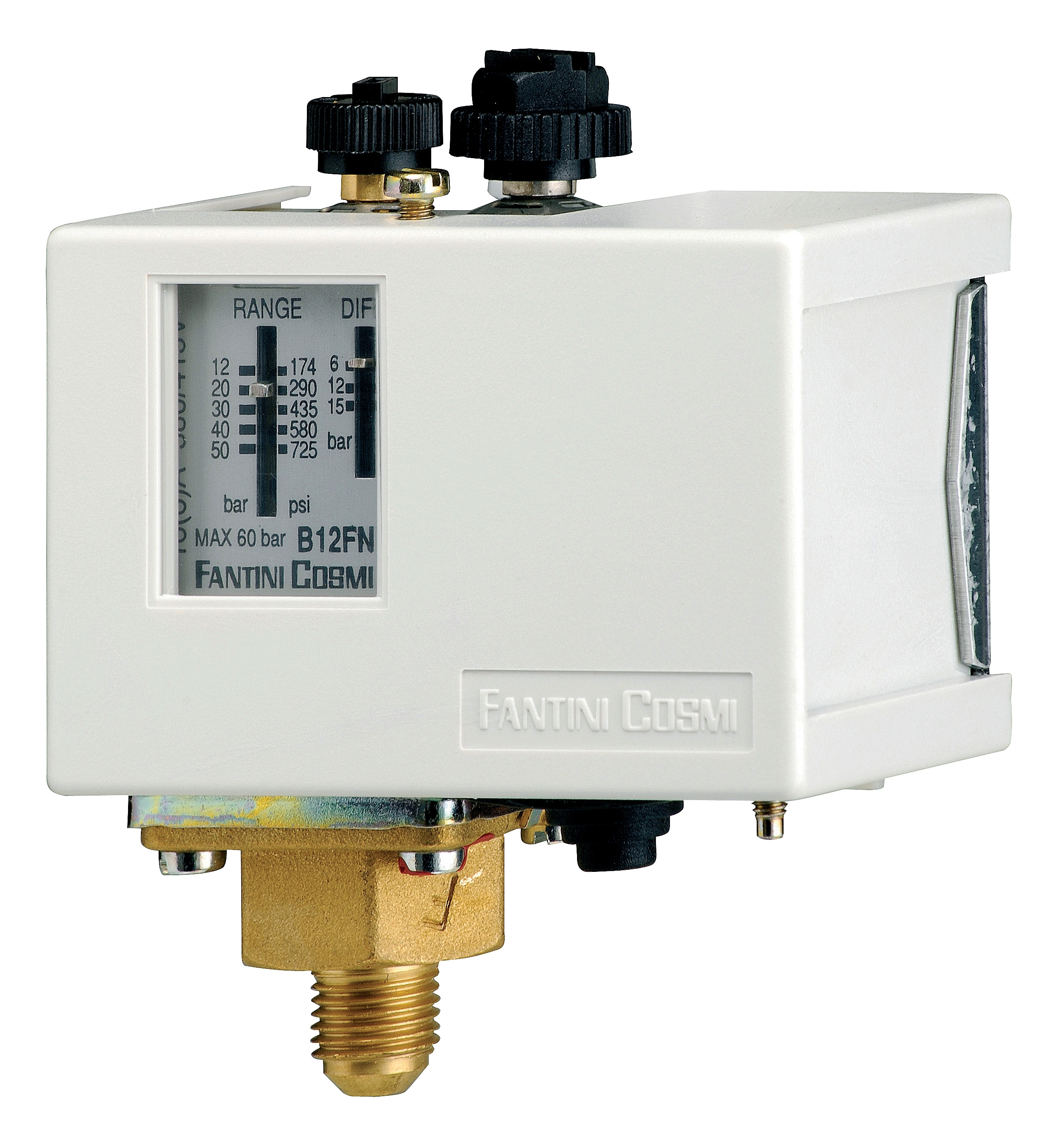

Pressure switches up to 300 bar
with adjustable differential
Pressure switches for control and regulation of all fluids and non-explosive gases. Suitable for compression
plants, boilers, tanks, autoclaves, ventilation plants, lubrication plants and in general whenever a pressure
up to 300 bar must be controlled.
88 49
59
105
Range Differential Sensitive element Connection Protection Availability
max. pressure G/14 degree
bar bar bar
B12FN 12 ÷ 50 6 ÷ 15 60 threaded IP40 in stock
B12GN 25 ÷ 150 12 ÷ 40 180 threaded IP40 in stock
B12HN 60 ÷ 300 40 ÷ 80 350 threaded IP40 in stock
WITH BLOCKING AND MANUAL RESET
B1FMN 12 ÷ 50 6 ÷ 15 60 threaded IP40 in stock
B12GMN 25 ÷ 150 12 ÷ 40 180 threaded IP40 in stock
B12HMN 60 ÷ 300 40 ÷ 80 350 threaded IP40 in stock
WATERPROOF CASING EXECUTION
100
4,5
123 47
B12FNY 12 ÷ 50 6 ÷ 15 60 threaded IP65 in stock
B12GNY 25 ÷ 150 12 ÷ 40 180 threaded IP65 in stock
B12HNY 60 ÷ 300 40 ÷ 80 350 threaded IP65 in stock
1 Bar = 100Kpa *The differential must be deducted from the range value.
ELECTRICAL FEATURES
Snap action SPDT microswitch, contacts in
EXAMPLE OF ELECTRICAL WIRING
AgCdO. P
1 4 2 1
2 4
Nominal insulation tension Ui 415V~ R - RESET
Continuous duty nominal current Ith 16A 0 - STOP
Operating nominal current Ie 220V- 380/415V~
Resistive load AC-1 - 16A P
Inductive load AC-3 - 6A A2
Continuous current DC-13 0,2A - 1 4 2
A1
HOMOLOGATION AND STANDARDS
Complies with EN 60947-4-1 standards.
INSTALLATION
Direct installation on the pipe. MOUNTING MODEL
If these devices are used as control pressostats (pressure lack), verify that maximum pres-
N° 2 fori M4
sure does not exceed maximum supported sensitive element pressure.
Possibility of mounting on metallic clamp, exept for the waterproof casing versions.
35 mm
OPERATION
When pressure increases: 1-2 opens, 1-4 closes.
In case of fluid temperatures higher than the maximum allowed, connect the pressure switch to the pipe by inserting a metallic
spiral between the pressure switch and the pipe to facilitate heat dispersion.
In the pressure switch with blocking and manual reset at maximum pressure, the reset takes place when the pressure is below
the value set on differential.
FEATURES
Piston sensitive element, brass connection.
Metallic frame.
Cover in shockproof thermoplastic material.
Output connections with PVC cable gland.
Adjustable differential.
Threaded connection G 1/4.
Maximum temperature of the controlled fluid: 80°C.
Pressure switch body admissible temperature: 60°C.
Storage and transport temperature: -35 ÷ 60°C.
Unit weight: 0,47 Kg B12FN-B12GN.
Unit weight: 0,46 Kg B12HN.
a)
. CEATSICALIONG € TESTING
CSI SpA
Sede Legale 9
20030 Senago - MI - 1
Cascina Traversagna 2?
Direzione, Uffici e Laborato Se
20021 Bollate - Mil - 1 cE RT
Vials Lombardia 20
Tel. +39 02 383301
Fax +39 02 3503940
WWM.csI-spa.com
#2... CERTIFICATO CE DI CONFORMITA’ DEL TIPO
Magee Aen TYPE EC CERTIFICATE OF CONFORMITY
Visto il Fascicolo Tecnico/Rreferring to the Technical File
n° 668/15 del/dated 25/02/2015
si certifica che la Societa/we certify that the Company
FANTINI COSMI S.p.A.
Via dell’Osio, 6 - 20090 CALEPPIO DI SETTALA (MI) - ITALY
ha realizzato il seguente Tipo di Insieme in pressione che soddisfa i Requisiti Essenziali di Sicurezza
dell’Allegato | e le procedure del Modulo B, Allegato III, della Direttiva 97/23/CE
has realized the following Type of pressure Assembly that meets the Essential Safety Requirements of Annex | and
the procedures of Module B, Annex Ill, of the 97/23/EC Directive
PRESSOSTATI DI REGOLAZIONE
Serie BOXXX, B1XXXX e VARIANTI “4”, RI, RN, Y
ADJUSTABLE PRESSURE SWITCHES
Series BO1XXX, B1XXXX and VARIANTS “4”, Rl, RN, Y
Campo di taratura/set range: PSmin -0,82 barg; PSmax 300 barg
Gruppo Fluido/Fluid Group 2 - Categoria/Ccategory IV
26/02/2015 Th 25/02/2025
Prima emissione Ultima emissione Scadenza
First issue Latest issue Expiring
Mod. M103
| Registrazione numero/Registration number PED/0497/2934/15
bol feoea
o—™~
ORUPFO ot Ing. R. Gatti uae:
Ima we > Csi __! | ut
an
Amm, DelegatosManag ing Director _ a
| Pagina/page
ioe
SEIT OF CS
Ws CORD AN, REMAIN HS
