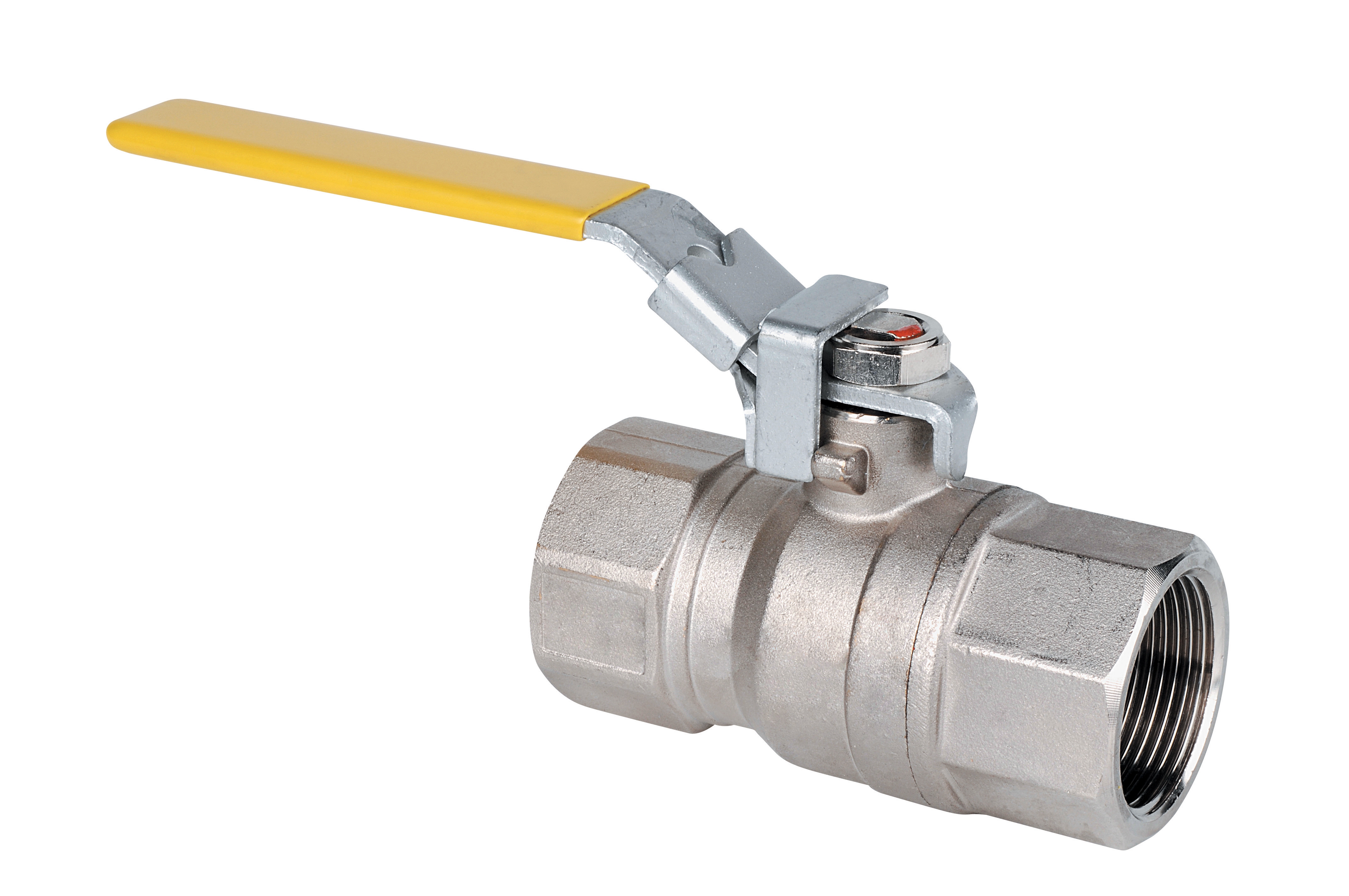

CBM Gas valve 3/4 Padlock

EN331 1/4″ – 4″ EN 10226-1 GAS HIGH TEMPERATURE RESISTANCE Now approved for HTB use (Hochtemperaturbeständigkeit) Class B 0,1 (0,1 bar @650°C for at least 30 minutes). Quality Flow • 24h 100% seal test guaranteed • Full port to DIN 3357 for maximum flow • Dual sealing system allows valve to be operated in either direction making installation easier Handle • No metal-to-metal moving parts • Geomet® carbon steel handle with thick PVC dip coating. Handle • No maintenance ever required coating offers both thermal and electrical protection • Handle clearly shows ball position • WARNING: do not exceed reasonable temperature and/or electrical load • Silicone-free lubricant on all seals • Handle removable with valve in service • Handle stops on body to avoid stress at stem • Chrome plated brass ball for longer life with rinse hole Working pressure & temperature Body • 40 bar (600 PSI) up to 2″, 30 bar (450 PSI) over 2″ non-shock cold working pressure • Hot forged sand blasted external nickel plated brass body and cap sealed • -40°C to +170°C (-40°F to +350°F) with Loctite® or equivalent thread sealant • For use with dangerous fluids temperature rating is -20°C +60°C and • Finest brass according to EN 12165 and EN 12164 specifications pressure rating is 5 bar / HTB Class B 0,1 • AS4617 Limitation for GAS: 2100 Kpa up to 2″ and 1500 Kpa from 2.1/2″ to 4″ Stem rated working pressure and 0°C/ +60°C temperature • Blowout-proof nickel plated brass stem • WARNING: freezing of the fluid in the installation may severely damage the • Maintenance- free, double FPM O-rings at the stem for maximum safety valve Sealing Options up to 2" size • Pure PTFE self-lubricating seats with flexible-lip design • Stem extension • T-handle Threads • Stainless steel handle (1.4016 / AISI 430) • Taper male by parallel female threads up to 4″ • EN 10226-1, ISO 228 parallel female by female threads • Oval lockable handle up to 2″, round over 2″ • Patented locking device for valves up to 4″ Upon request • Stubby handle • RuB memory stop designed to be installed with our stubby handle • Stainless steel ball (1.4401/AISI 316) • Glass filled PTFE seals • Custom design Approved by or in compliance with • The Australian Gas Association (Australia) PED directive • Factory Mutual (United States) • SVGW (Switzerland) • Assessment according to Pressure Equipment Directive 2014/68/UE module • GOST-R (Russia) B+D by ICIM (0425) • EAC – Declaration of conformity (Russia, Kazakhstan, Belarus) • BSI Group (United Kingdom) • RoHS Compliant (EU) • DIN-DVGW (Germany) – MOP 5 B 0,1 • ARGB-KVBG (Belgium) – MOP 5 bar for outside building gas installation, MOP 100 mbar for inside the buildings NOTE: approvals apply to specific configurations/sizes only.  PART DESCRIPTION Q.TY MATERIAL Nickel plated body (external nickel plated, unplated 1 1 CW617N inside up to 2") 2 Seat 2 PTFE Chrome plated ball with rinse hole (read rinse hole on 3 1 CW617N sizes from 3/4" up to 2") Nickel plated end-cap (external nickel plated, 4 1 CW617N unplated inside up to 2") 5 Nickel plated stem O-ring design 1 CW617N CB4FF 6 Geomet® nut 1 (EN10263-2) 7 O-Ring 2 FPM DD11 8 Yellow PVC coated Geomet® steel handle 1 (EN10111) 1.1/4” – 2” hollow ball DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4. Stem configuration of valves over 2” is slightly different. Ball valves are marked CE on handle from 1.1/4” to 2”, on body over 2” as follow: CE 0425 cat IIIB+D PS: 5 GAS TS1: -20°C TS2: +60°C Pressure-temperature chart Pressure drop chart AS4617 limitations for GAS: 2100 Kpa up to 2” and 1500 Kpa from 2. 1/2” to 4” rated working pressure and 0°C +60°C temperature
