CBM Ball valve DN32 P.max 16 bar - Gas Valves & Regulation
CBMGas Valves & Regulation

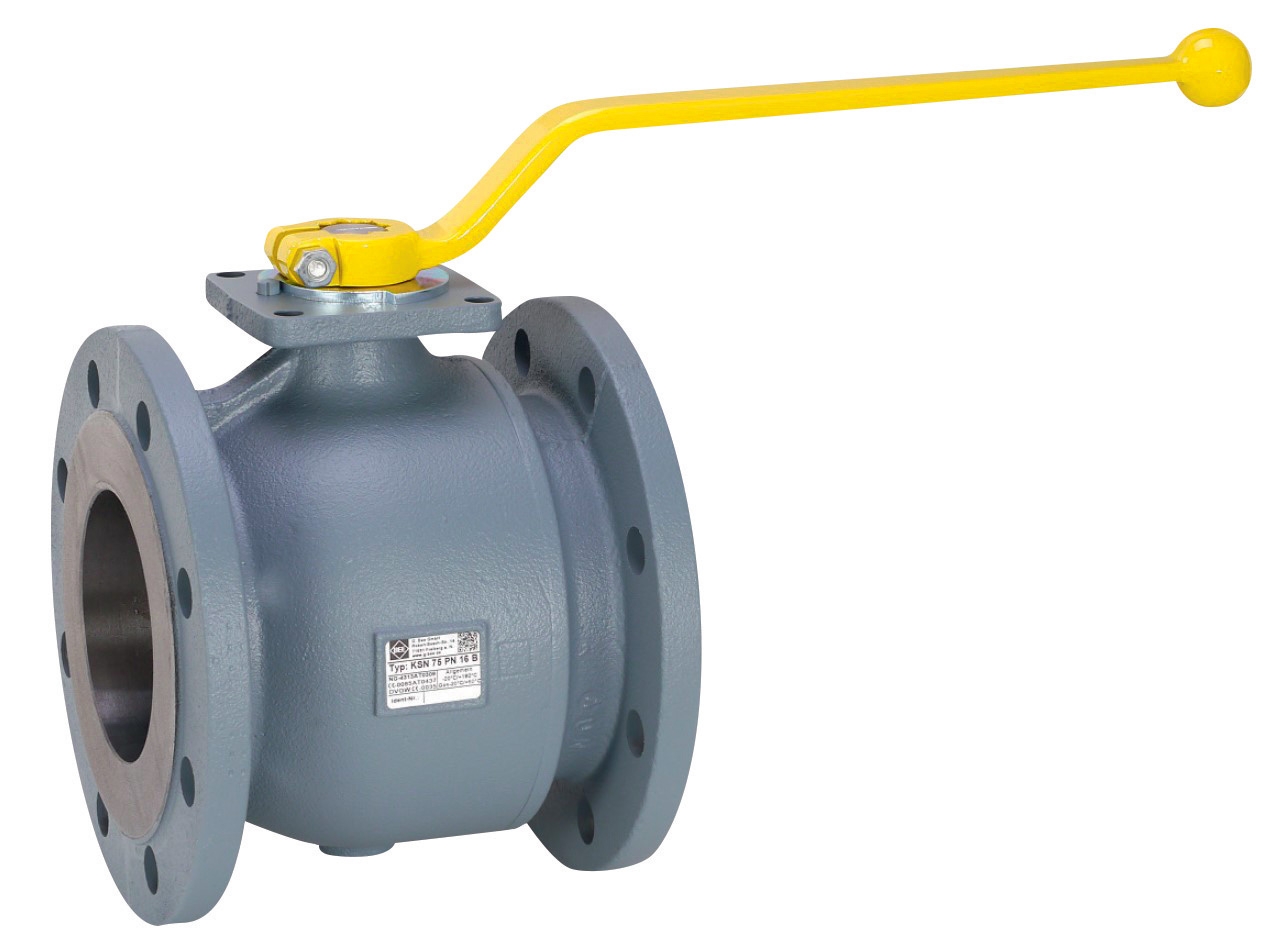

CBM Ball valve DN32 P.max 16 bar

Katup bola (ball valve) CBM model KSN75B dengan aktuasi lever handle dan sambungan flange, dirancang untuk aplikasi gas alam. Katup 2-way ini memiliki diameter nominal DN32 (32 mm) dan tekanan maksimal 16 bar, dengan…

SKU 3G-CBM-06180

Juga terdaftar sebagai: ROB 14004 · ROB-14004

Merek
CBM
Item
Ball valve DN32 P.max 16 bar
Kategori
Gas Valves & Regulation
UNSPSC
40141609 — Control valves
Tersedia untuk Dipesan
Stok tersedia & bea cukai ditangani
  • 6–10 business days door-to-door; Bea Cukai clearance typically 3–5 business days.
  • Invoicing in IDR or USD. Bank transfer and corporate PO accepted.
  • Dikirim ke: Jakarta, Surabaya, Bandung, Medan, Batam
Harga dagang sesuai penawaran — balasan dalam 24 jam
Jumlah
WhatsApp seorang insinyurMessage via Telegram
Tidak perlu akun — permintaan penawaran Anda langsung masuk ke tim insinyur kami. Akun gratis memungkinkan Anda melacak penawaran dan memesan ulang lebih cepat.
Pengiriman ke Seluruh Dunia
Pengiriman udara & laut
Lembar Data Atas Permintaan
Spesifikasi teknis
Penawaran 1 Hari
Balasan dalam 24 jam

Local availability & support — Indonesia

Phone
+65 8878 8355

Spesifikasi Teknis

CBM
model
KSN75B
actuation
lever handle
ball material
carbon steel DVGW
flow direction
2-way
connection type
flange
pressure max bar
16
nominal diameter mm
32

Konten Lembar Data

KUGELHÄHNE | Manueller Betrieb BALL VALVES | manually operated KUGELHÄHNE | Manueller Betrieb BALL VALVES | manually operated DURCHGANGSKUGELHÄHNE MIT FLANSCHANSCHLUSS 2-WAY BALL VALVES WITH FLANGE CONNECTIONS 75 75 DURCHGANGSKUGELHÄHNE MIT FLANSCHANSCHLUSS 2-WAY BALL VALVES WITH FLANGE CONNECTIONS KSL75B KSL75E KSL75F KSA75B KSN75B KSN75E KSN75F Datentabelle data table KSN75B | Hebelgriff | Fl/Fl | Kugel Stahlguss DVGW Gas PN 16 DN LW PN L MM R H h D K g z d SW1 M d1 d2 Gewicht Artikel-Nr. KSN75B | Lever handle | Fl/Fl | Ball carbon steel DVGW natural gas PN 16 (mm) (mm) (bar) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) Weight (kg) Item number 25 25 16 125 62,5 165 111,5 60 115 85 68 4 14 11 F05 50 6,6 3,220 ROB14002 32 32 16 130 65 165 122,5 71 140 100 78 4 18 11 F05 50 6,6 4,500 3G-CBM-06180 Druck-Temperatur-Diagramm pressure-temperature-diagram 40 40 16 140 70 185 134 77 150 110 88 4 18 14 F05 50 6,6 5,700 ROB14006 50 50 16 150 75 185 142 85 165 125 102 4 18 14 F05 50 6,6 7,877 ROB14008 bar 65 65 16 170 85 230 154,5 95 185 145 122 4 18 17 F07 70 9 12,100 ROB14010 20 80 80 16 180 90,5 360 180,5 103,5 200 160 136 8 18 22 F07 70 9 15,500 ROB14012 100 100 16 190 92 360 197 120 220 180 158 8 18 22 F10 102 11 22,600 ROB14014 125 125 16 200 98 360 216 139 250 210 188 8 18 22 F10 102 11 30,400 ROB14016 15 150 142 16 210 100 556 236 158 285 240 212 8 22 27 F10 102 11 42,000 ROB14018 10 A Maßskizze measured sketch Materialtabelle materials grid 5 Nr. Bezeichnung Werkstoff Materialbezeichnung 0 No. Description Material Material description -20 0 20 40 60 80 100 120 °C             1 Gehäuse Sphäroguss 5.3103 Gas EN13774 Body Nodular cast iron 6 2 Kugel Stahlguss verchromt 1.0503 Ball Cast steel (chromed) 3 Kugeldichtung PTFE - Ball seal PTFE 4 Flansch / Nippel Sphäroguss 5.3103 Flange / nipple Nodular cast iron , 5 Schaltwelle Edelstahl 1.4104 L…
Tidak yakin ini adalah suku cadang yang tepat? Minta rekomendasi.

Butuh bantuan pemasangan atau rekayasa?

Instalasi, komisioning, rencana pemeliharaan, desain sistem, dan penawaran produk + layanan bundel — satu tim menangani cakupan penuh.
Bicaralah dengan seorang insinyur

Ajukan pertanyaan

CBM Produk
3G Electric (S) Pte. Ltd. — Singapore

Deskripsi Produk

Katup bola (ball valve) CBM model KSN75B dengan aktuasi lever handle dan sambungan flange, dirancang untuk aplikasi gas alam. Katup 2-way ini memiliki diameter nominal DN32 (32 mm) dan tekanan maksimal 16 bar, dengan bola dari carbon steel bersertifikasi DVGW. Cocok untuk kebutuhan katup gas industri Anda.

Supplied to Indonesia — compatible with 50 Hz installations. DHL Express delivery to Jakarta, Surabaya, Bandung, customs and duties handled door-to-door.

Pertanyaan yang Sering Diajukan

Apa spesifikasi ball valve CBM KSN75B DN32?

Ball valve CBM KSN75B memiliki diameter nominal DN32 (32 mm), tekanan maksimal 16 bar, koneksi flange, aktuasi lever handle, dan bola dari carbon steel DVGW. Katup ini adalah tipe 2-way yang cocok untuk gas alam.

Untuk apa ball valve CBM KSN75B digunakan?

Ball valve CBM KSN75B digunakan sebagai katup penutup (shut-off) pada sistem perpipaan gas alam, khususnya di industri seperti ketel uap atau pembakar. Dengan desain flange dan tekanan 16 bar, katup ini andal untuk aplikasi gas.

Di mana beli ball valve CBM KSN75B di Indonesia?

Anda dapat membeli ball valve CBM KSN75B melalui 3G Electric, distributor resmi yang memasok dan mengirimkan ke seluruh Indonesia. Kami menangani logistik dan bea cukai untuk memastikan produk sampai ke lokasi Anda.

Bagaimana cara memilih ball valve untuk gas alam?

Pilih ball valve dengan spesifikasi yang sesuai, seperti CBM KSN75B yang memiliki tekanan maksimal 16 bar, diameter DN32, dan bola carbon steel DVGW. Pastikan koneksi flange dan arah aliran 2-way cocok dengan sistem perpipaan Anda.

Digunakan dalam

Aplikasi umum untuk CBM
Industrial boilers — CBM circulation pumps (mod. CM 30W) and solenoid valves (ELV series) for heating-loop control and pump staging.
Burner systems — CBM oil nozzles (FLU atomizer types), electrodes (ELC 200 mm), and solenoid coils (ELV 230V AC) for combustion ignition and flame supervision.
Plant maintenance and retrofit — CBM cable glands (CLI M25), motor couplings (ACC type D), and small-radius fittings (RAC 90°) for equipment reconfiguration and sensor integration.
Boiler water treatment — CBM chlorine test kits (DET free+combined) for feedwater and circulating-water quality monitoring in closed-loop systems.
Pump and motor assembly — CBM couplings, fittings, and cable glands for assembly and rewinding of industrial motors, circulation pumps, and auxiliary equipment.
