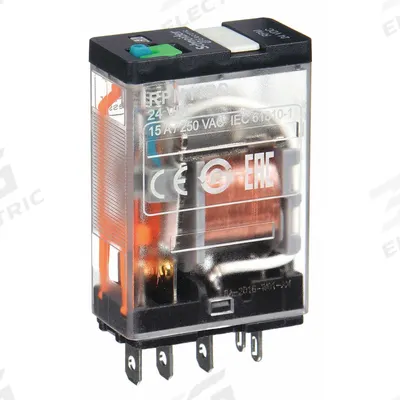

SCHNEIDER General Purpose Relay: Socket Mounted, 15 A Current Rating, 24V DC, SPDT - Socket-Mounted Relays
SCHNEIDERSocket-Mounted Relays

SCHNEIDER General Purpose Relay: Socket Mounted, 15 A Current Rating, 24V DC, SPDT

Relay serbaguna SCHNEIDER Harmony™ RPM Series tipe SPDT ini dirancang untuk pemasangan soket dengan konfigurasi 5 pin flat. Relay ini memiliki rating arus 15 A dan tegangan koil 24 VDC, dengan koneksi listrik…

SKU 3G-OTH-39109

Merek
SCHNEIDER
Item
General Purpose Relay: Socket Mounted, 15 A Current Rating, 24V DC, SPDT
Kategori
Socket-Mounted Relays
Tersedia untuk Dipesan
Stok tersedia & bea cukai ditangani
  • 6–10 business days door-to-door; Bea Cukai clearance typically 3–5 business days.
  • Invoicing in IDR or USD. Bank transfer and corporate PO accepted.
  • Dikirim ke: Jakarta, Surabaya, Bandung, Medan, Batam
Harga dagang sesuai penawaran — balasan dalam 24 jam
Jumlah
WhatsApp seorang insinyur
Tidak perlu akun — permintaan penawaran Anda langsung masuk ke tim insinyur kami. Akun gratis memungkinkan Anda melacak penawaran dan memesan ulang lebih cepat.
Pengiriman ke Seluruh Dunia
Pengiriman udara & laut
Lembar Data Atas Permintaan
Spesifikasi teknis
Penawaran 1 Hari
Balasan dalam 24 jam

Spesifikasi Teknis

SCHNEIDER
Manufacturer Part Number
RPM11BD
Series
Harmony™ RPM Series
Type
SPDT
DC
24V
Base Type
Square
Pin Shape
Flat
Current Rating
15 A
Mounting Style
Plug-In
Pins/Terminals
5
Electrical Connection
Quick-Connect
Lihat Lembar Spesifikasi Lengkap

Dokumen Teknis

Tidak ada dokumen teknis yang tersedia untuk produk ini.
Minta dokumentasi →
Tidak yakin ini adalah suku cadang yang tepat? Minta rekomendasi.

Butuh bantuan pemasangan atau rekayasa?

Instalasi, komisioning, rencana pemeliharaan, desain sistem, dan penawaran produk + layanan bundel — satu tim menangani cakupan penuh.
Bicaralah dengan seorang insinyur

Ajukan pertanyaan

SCHNEIDER Produk
3G Electric (S) Pte. Ltd. — Singapore

Deskripsi Produk

Relay serbaguna SCHNEIDER Harmony™ RPM Series tipe SPDT ini dirancang untuk pemasangan soket dengan konfigurasi 5 pin flat. Relay ini memiliki rating arus 15 A dan tegangan koil 24 VDC, dengan koneksi listrik quick-connect untuk kemudahan instalasi. Produk ini cocok digunakan sebagai komponen switching pada panel kontrol peralatan industri, termasuk sistem pembakaran dan ketel uap.

Supplied to Indonesia — compatible with 50 Hz installations. DHL Express delivery to Jakarta, Surabaya, Bandung, customs and duties handled door-to-door.

Pertanyaan yang Sering Diajukan

Apa spesifikasi relay SCHNEIDER RPM11BD?

Relay SCHNEIDER RPM11BD memiliki tegangan koil 24 VDC, tipe SPDT, rating arus 15 A, dan 5 pin flat. Produk ini termasuk dalam seri Harmony™ RPM dengan base type square dan mounting plug-in. Cocok untuk aplikasi switching pada panel kontrol industri.

Untuk apa relay SCHNEIDER Harmony RPM Series digunakan?

Relay SCHNEIDER Harmony RPM Series digunakan sebagai komponen switching pada panel kontrol mesin industri, seperti sistem pembakaran, ketel uap, dan peralatan otomasi pabrik. Dengan rating 15 A dan 24 VDC, relay ini andal untuk aplikasi kontrol sinyal dan beban ringan.

Di mana beli relay SCHNEIDER RPM11BD di Indonesia?

Anda dapat membeli relay SCHNEIDER RPM11BD melalui 3G Electric, distributor resmi yang memasok dan mengirimkan produk ini ke seluruh Indonesia. Kami menangani logistik dan bea cukai untuk memastikan produk sampai ke lokasi Anda.

Bagaimana cara memasang relay SCHNEIDER dengan soket?

Relay SCHNEIDER RPM11BD dipasang dengan cara dicolokkan ke soket yang sesuai (plug-in mounting). Pastikan soket memiliki 5 pin flat dan koneksi quick-connect. Tegangan koil 24 VDC harus sesuai dengan sumber daya. Periksa wiring diagram sebelum instalasi.

Digunakan dalam

Aplikasi umum untuk SCHNEIDER
Motor starting in conveyor systems — Schneider Altistart ATS 22 soft starters (e.g., ATS22D17S6U) reduce inrush current.
Speed control for industrial pumps — Schneider Altivar ATV320 VFDs (e.g., ATV320U55N4W) provide variable flow regulation.
Machine safety interlocking — Schneider XPSUAF13AP safety relays monitor emergency stop circuits on assembly lines.
Panel-mounted control stations — Schneider XB5 flush push buttons (ZB5AA5) serve as start/stop operators in MCCs.
Heavy-duty motor switching — Schneider LC1G150LSEA contactors handle 150 A loads in compressor and crusher applications.
Emergency stop actuation — Schneider 9001K mushroom-head push buttons (9001KR25R) provide red, momentary stop functions.
