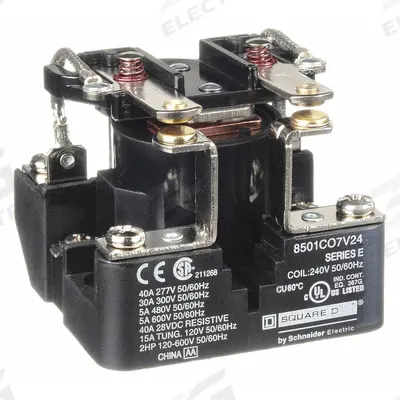

SCHNEIDER Open Power Relay: Surface Mounted, 30 A Current Rating, 240V AC, DPST-NO - Surface-Mounted Relays
SCHNEIDERSurface-Mounted Relays

SCHNEIDER Open Power Relay: Surface Mounted, 30 A Current Rating, 240V AC, DPST-NO

The SCHNEIDER Open Power Relay is a surface-mounted relay from the 8501C Series, featuring a square base and through-panel mounting. It has a 30 A current rating at 240V AC, DPST-NO contact configuration, and 6…

SKU 3G-OTH-37319

Merek
SCHNEIDER
Item
Open Power Relay: Surface Mounted, 30 A Current Rating, 240V AC, DPST-NO
Kategori
Surface-Mounted Relays
Tersedia untuk Dipesan
Stok tersedia & bea cukai ditangani
  • 6–10 business days door-to-door; Bea Cukai clearance typically 3–5 business days.
  • Invoicing in IDR or USD. Bank transfer and corporate PO accepted.
  • Dikirim ke: Jakarta, Surabaya, Bandung, Medan, Batam
Harga dagang sesuai penawaran — balasan dalam 24 jam
Jumlah
WhatsApp seorang insinyur
Tidak perlu akun — permintaan penawaran Anda langsung masuk ke tim insinyur kami. Akun gratis memungkinkan Anda melacak penawaran dan memesan ulang lebih cepat.
Pengiriman ke Seluruh Dunia
Pengiriman udara & laut
Lembar Data Atas Permintaan
Spesifikasi teknis
Penawaran 1 Hari
Balasan dalam 24 jam

Spesifikasi Teknis

SCHNEIDER
Manufacturer Part Number
8501CO7V24
Series
8501C Series
Type
DPST-NO
AC
240V
Base Type
Square
Current Rating
30 A
Mounting Style
Through Panel
Pins/Terminals
6
Electrical Connection
Screw Clamp
Lihat Lembar Spesifikasi Lengkap

Dokumen Teknis

Tidak ada dokumen teknis yang tersedia untuk produk ini.
Minta dokumentasi →
Tidak yakin ini adalah suku cadang yang tepat? Minta rekomendasi.

Butuh bantuan pemasangan atau rekayasa?

Instalasi, komisioning, rencana pemeliharaan, desain sistem, dan penawaran produk + layanan bundel — satu tim menangani cakupan penuh.
Bicaralah dengan seorang insinyur

Ajukan pertanyaan

SCHNEIDER Produk
3G Electric (S) Pte. Ltd. — Singapore

Deskripsi Produk

The SCHNEIDER Open Power Relay is a surface-mounted relay from the 8501C Series, featuring a square base and through-panel mounting. It has a 30 A current rating at 240V AC, DPST-NO contact configuration, and 6 pins/terminals with screw clamp electrical connections. The relay is identified by manufacturer part number 8501CO7V24.

Supplied to Indonesia — compatible with 50 Hz installations. DHL Express delivery to Jakarta, Surabaya, Bandung, customs and duties handled door-to-door.

Pertanyaan yang Sering Diajukan

What is the SCHNEIDER 8501CO7V24 open power relay used for?

The SCHNEIDER 8501CO7V24 open power relay is used for switching high-current loads in industrial control panels, HVAC systems, and motor control circuits. Its DPST-NO configuration and 30 A rating at 240V AC make it suitable for on/off control of pumps, compressors, and lighting banks.

What are the specifications of the SCHNEIDER 8501CO7V24 relay?

The SCHNEIDER 8501CO7V24 is a surface-mounted relay from the 8501C Series with a square base and through-panel mounting. It has a 30 A current rating at 240V AC, DPST-NO contacts, 6 screw-clamp terminals, and is rated for industrial environments.

Where to buy the SCHNEIDER 8501CO7V24 relay worldwide?

3G Electric supplies the SCHNEIDER 8501CO7V24 open power relay to customers worldwide. As a global industrial sourcing partner, we handle full logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this 8501C Series relay.

How to install a SCHNEIDER 8501CO7V24 through-panel relay?

Mount the SCHNEIDER 8501CO7V24 relay through a panel cutout using the square base. Secure it with the provided hardware, then connect wires to the screw-clamp terminals per the wiring diagram. Ensure the coil voltage matches your control circuit and that contacts are rated for the load.

Digunakan dalam

Aplikasi umum untuk SCHNEIDER
Motor starting in conveyor systems — Schneider Altistart ATS 22 soft starters (e.g., ATS22D17S6U) reduce inrush current.
Speed control for industrial pumps — Schneider Altivar ATV320 VFDs (e.g., ATV320U55N4W) provide variable flow regulation.
Machine safety interlocking — Schneider XPSUAF13AP safety relays monitor emergency stop circuits on assembly lines.
Panel-mounted control stations — Schneider XB5 flush push buttons (ZB5AA5) serve as start/stop operators in MCCs.
Heavy-duty motor switching — Schneider LC1G150LSEA contactors handle 150 A loads in compressor and crusher applications.
Emergency stop actuation — Schneider 9001K mushroom-head push buttons (9001KR25R) provide red, momentary stop functions.
