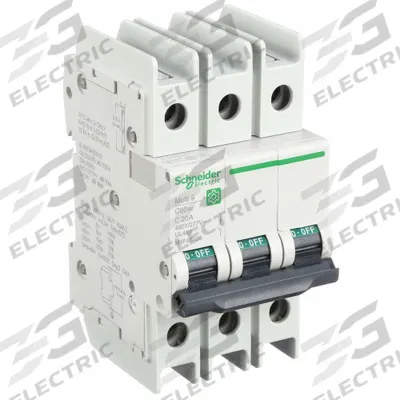

SCHNEIDER Miniature Circuit Breaker: 20 A Amps, 14kA at 120/240V AC, Screw Clamp - C-Curve, 3-Pole UL489 DIN Rail-Mount Miniature Circuit Breakers
SCHNEIDERC-Curve, 3-Pole UL489 DIN Rail-Mount Miniature Circuit Breakers

SCHNEIDER Miniature Circuit Breaker: 20 A Amps, 14kA at 120/240V AC, Screw Clamp

The SCHNEIDER ELECTRIC IEC Miniature Circuit Breaker (MPN M9F42320) is a 20 A, C-Curve, 3-Pole UL489 DIN Rail-Mount device. It features a Max. AIR Rating of 14kA at 120/240V AC and a Screw Clamp terminal connection…

SKU 3G-OTH-20846

Merek
SCHNEIDER
Item
Miniature Circuit Breaker: 20 A Amps, 14kA at 120/240V AC, Screw Clamp
Kategori
C-Curve, 3-Pole UL489 DIN Rail-Mount Miniature Circuit Breakers
Tersedia untuk Dipesan
Stok tersedia & bea cukai ditangani
  • 6–10 business days door-to-door; Bea Cukai clearance typically 3–5 business days.
  • Invoicing in IDR or USD. Bank transfer and corporate PO accepted.
  • Dikirim ke: Jakarta, Surabaya, Bandung, Medan, Batam
Harga dagang sesuai penawaran — balasan dalam 24 jam
Jumlah
WhatsApp seorang insinyur
Tidak perlu akun — permintaan penawaran Anda langsung masuk ke tim insinyur kami. Akun gratis memungkinkan Anda melacak penawaran dan memesan ulang lebih cepat.
Pengiriman ke Seluruh Dunia
Pengiriman udara & laut
Lembar Data Atas Permintaan
Spesifikasi teknis
Penawaran 1 Hari
Balasan dalam 24 jam

Spesifikasi Teknis

SCHNEIDER
Manufacturer Part Number
M9F42320
Type
14kA at 120/240V AC, Screw Clamp, C
Max. AIR Rating
14kA at 120/240V AC
DC Voltage Rating
Not Rated
Terminal Connection
Screw Clamp
Lihat Lembar Spesifikasi Lengkap

Dokumen Teknis

Tidak ada dokumen teknis yang tersedia untuk produk ini.
Minta dokumentasi →
Tidak yakin ini adalah suku cadang yang tepat? Minta rekomendasi.

Butuh bantuan pemasangan atau rekayasa?

Instalasi, komisioning, rencana pemeliharaan, desain sistem, dan penawaran produk + layanan bundel — satu tim menangani cakupan penuh.
Bicaralah dengan seorang insinyur

Ajukan pertanyaan

SCHNEIDER Produk
3G Electric (S) Pte. Ltd. — Singapore

Deskripsi Produk

The SCHNEIDER ELECTRIC IEC Miniature Circuit Breaker (MPN M9F42320) is a 20 A, C-Curve, 3-Pole UL489 DIN Rail-Mount device. It features a Max. AIR Rating of 14kA at 120/240V AC and a Screw Clamp terminal connection. This unit is Not Rated for DC voltage.

Supplied to Indonesia — compatible with 50 Hz installations. DHL Express delivery to Jakarta, Surabaya, Bandung, customs and duties handled door-to-door.

Pertanyaan yang Sering Diajukan

What is the SCHNEIDER ELECTRIC M9F42320 miniature circuit breaker used for?

The SCHNEIDER ELECTRIC M9F42320 is a 20 A, C-Curve, 3-Pole UL489 miniature circuit breaker used for overcurrent protection in industrial and commercial electrical panels. It mounts on a DIN rail and is suitable for AC circuits up to 240 V with a 14kA interrupting rating.

What are the specifications of the SCHNEIDER M9F42320 circuit breaker?

The SCHNEIDER M9F42320 is a 20 A, C-Curve, 3-Pole UL489 miniature circuit breaker with a Max. AIR Rating of 14kA at 120/240V AC. It uses a Screw Clamp terminal connection and is Not Rated for DC voltage. The manufacturer part number is M9F42320.

Where to buy the SCHNEIDER M9F42320 circuit breaker worldwide?

3G Electric supplies the SCHNEIDER M9F42320 miniature circuit breaker to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your site. Contact us for pricing and lead time on this UL489 DIN rail-mount device.

How to install the SCHNEIDER M9F42320 on a DIN rail?

To install the SCHNEIDER M9F42320, snap the breaker onto a standard 35 mm DIN rail until it locks. Connect phase conductors to the Screw Clamp terminals using the correct torque per the label. Ensure the circuit is de-energized before installation and follow local electrical codes.
