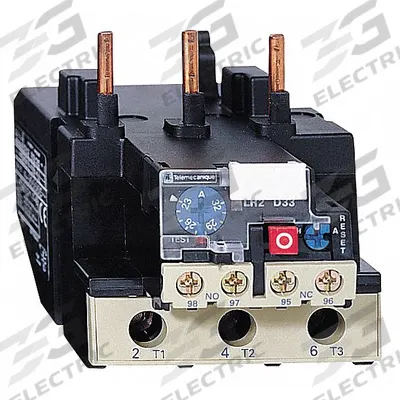

SCHNEIDER Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity - IEC Thermal Overload Relays
SCHNEIDERIEC Thermal Overload Relays

SCHNEIDER Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity

The SCHNEIDER Overload Relay: Thermal Protection (MPN LR2D3559) is an IEC thermal overload relay with integrated bimetallic elements, rated for 48 A – 65 A and a maximum voltage of 1000V AC. It features 1NO/1NC…

SKU 3G-OTH-42265

Merek
SCHNEIDER
Item
Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity
Kategori
IEC Thermal Overload Relays
Tersedia untuk Dipesan
Stok tersedia & bea cukai ditangani
  • 6–10 business days door-to-door; Bea Cukai clearance typically 3–5 business days.
  • Invoicing in IDR or USD. Bank transfer and corporate PO accepted.
  • Dikirim ke: Jakarta, Surabaya, Bandung, Medan, Batam
Harga dagang sesuai penawaran — balasan dalam 24 jam
Jumlah
WhatsApp seorang insinyur
Tidak perlu akun — permintaan penawaran Anda langsung masuk ke tim insinyur kami. Akun gratis memungkinkan Anda melacak penawaran dan memesan ulang lebih cepat.
Pengiriman ke Seluruh Dunia
Pengiriman udara & laut
Lembar Data Atas Permintaan
Spesifikasi teknis
Penawaran 1 Hari
Balasan dalam 24 jam

Spesifikasi Teknis

SCHNEIDER
Manufacturer Part Number
LR2D3559
Type
1NO/1NC, Phase Loss Sensitivity, 48 A – 65 A
Poles
3
Compatible Contactors
TeSys Deca (80 to 95 Amp Models)
Auxiliary Contact Form
1NO/1NC
Maximum Voltage Rating
1000V AC
Phase Loss Sensitivity
Yes
Thermal Units Required
None (Relay Includes Integrated Bimetallic Elements)
Terminal Connection Type
Screw Clamp Terminals
Compatible Contactor Series
TeSys Deca
Lihat Lembar Spesifikasi Lengkap

Dokumen Teknis

Tidak ada dokumen teknis yang tersedia untuk produk ini.
Minta dokumentasi →
Tidak yakin ini adalah suku cadang yang tepat? Minta rekomendasi.

Butuh bantuan pemasangan atau rekayasa?

Instalasi, komisioning, rencana pemeliharaan, desain sistem, dan penawaran produk + layanan bundel — satu tim menangani cakupan penuh.
Bicaralah dengan seorang insinyur

Ajukan pertanyaan

SCHNEIDER Produk
3G Electric (S) Pte. Ltd. — Singapore

Deskripsi Produk

The SCHNEIDER Overload Relay: Thermal Protection (MPN LR2D3559) is an IEC thermal overload relay with integrated bimetallic elements, rated for 48 A – 65 A and a maximum voltage of 1000V AC. It features 1NO/1NC auxiliary contacts, screw clamp terminals, and phase loss sensitivity. This relay is compatible with TeSys Deca contactors (80 to 95 Amp models) and requires no external thermal units.

Supplied to Indonesia — compatible with 50 Hz installations. DHL Express delivery to Jakarta, Surabaya, Bandung, customs and duties handled door-to-door.

Pertanyaan yang Sering Diajukan

What is the SCHNEIDER LR2D3559 overload relay used for?

The SCHNEIDER LR2D3559 is an IEC thermal overload relay that protects three-phase motors from overheating caused by overload or phase loss. It is used in industrial automation and machinery applications, integrating with TeSys Deca contactors (80 to 95 Amp models) to provide reliable motor protection.

What are the specifications of the SCHNEIDER LR2D3559 overload relay?

The SCHNEIDER LR2D3559 is a 3-pole thermal overload relay rated 48 A – 65 A with a maximum voltage of 1000V AC. It features 1NO/1NC auxiliary contacts, screw clamp terminals, and integrated bimetallic elements for phase loss sensitivity. It requires no external thermal units and is compatible with TeSys Deca contactors.

Where to buy the SCHNEIDER LR2D3559 overload relay worldwide?

3G Electric supplies the SCHNEIDER LR2D3559 overload relay to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your location. Contact us for pricing and lead time on this thermal protection relay.

How to select the correct SCHNEIDER overload relay for a motor?

To select the correct SCHNEIDER overload relay, match the relay's current range (e.g., 48 A – 65 A for LR2D3559) to the motor's full-load current. Ensure the relay is compatible with your contactor series (TeSys Deca for this model) and supports required features like phase loss sensitivity. Consult the motor nameplate for accurate sizing.

Digunakan dalam

Aplikasi umum untuk SCHNEIDER
Motor starting in conveyor systems — Schneider Altistart ATS 22 soft starters (e.g., ATS22D17S6U) reduce inrush current.
Speed control for industrial pumps — Schneider Altivar ATV320 VFDs (e.g., ATV320U55N4W) provide variable flow regulation.
Machine safety interlocking — Schneider XPSUAF13AP safety relays monitor emergency stop circuits on assembly lines.
Panel-mounted control stations — Schneider XB5 flush push buttons (ZB5AA5) serve as start/stop operators in MCCs.
Heavy-duty motor switching — Schneider LC1G150LSEA contactors handle 150 A loads in compressor and crusher applications.
Emergency stop actuation — Schneider 9001K mushroom-head push buttons (9001KR25R) provide red, momentary stop functions.
