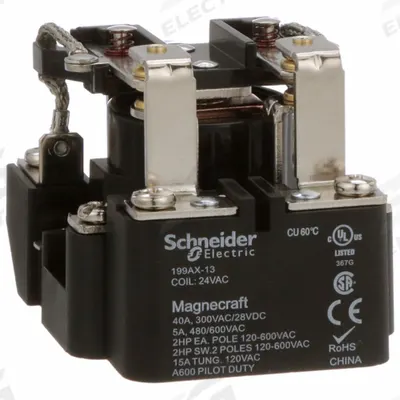

SCHNEIDER Open Power Relay: Surface Mounted, 40 A Current Rating, 24V AC, DPDT - Surface-Mounted Relays
SCHNEIDERSurface-Mounted Relays

SCHNEIDER Open Power Relay: Surface Mounted, 40 A Current Rating, 24V AC, DPDT

Relai daya terbuka SCHNEIDER seri 199 Power Series tipe DPDT ini dirancang untuk pemasangan di permukaan (surface mounted) dengan basis octal 8 pin. Relai ini memiliki rating arus 40 A dan tegangan AC 24V, serta…

SKU 3G-OTH-37670

Merek
SCHNEIDER
Item
Open Power Relay: Surface Mounted, 40 A Current Rating, 24V AC, DPDT
Kategori
Surface-Mounted Relays
Tersedia untuk Dipesan
Stok tersedia & bea cukai ditangani
  • 6–10 business days door-to-door; Bea Cukai clearance typically 3–5 business days.
  • Invoicing in IDR or USD. Bank transfer and corporate PO accepted.
  • Dikirim ke: Jakarta, Surabaya, Bandung, Medan, Batam
Harga dagang sesuai penawaran — balasan dalam 24 jam
Jumlah
WhatsApp seorang insinyur
Tidak perlu akun — permintaan penawaran Anda langsung masuk ke tim insinyur kami. Akun gratis memungkinkan Anda melacak penawaran dan memesan ulang lebih cepat.
Pengiriman ke Seluruh Dunia
Pengiriman udara & laut
Lembar Data Atas Permintaan
Spesifikasi teknis
Penawaran 1 Hari
Balasan dalam 24 jam

Spesifikasi Teknis

SCHNEIDER
Manufacturer Part Number
199AX-13
Series
199 Power Series
Type
DPDT
AC
24V
Base Type
Octal
Current Rating
40 A
Mounting Style
Surface
Pins/Terminals
8
Operating Current
5 A at 480V AC (Resistive Load)
Electrical Connection
Screw Terminal
Lihat Lembar Spesifikasi Lengkap

Dokumen Teknis

Tidak ada dokumen teknis yang tersedia untuk produk ini.
Minta dokumentasi →
Tidak yakin ini adalah suku cadang yang tepat? Minta rekomendasi.

Butuh bantuan pemasangan atau rekayasa?

Instalasi, komisioning, rencana pemeliharaan, desain sistem, dan penawaran produk + layanan bundel — satu tim menangani cakupan penuh.
Bicaralah dengan seorang insinyur

Ajukan pertanyaan

SCHNEIDER Produk
3G Electric (S) Pte. Ltd. — Singapore

Deskripsi Produk

Relai daya terbuka SCHNEIDER seri 199 Power Series tipe DPDT ini dirancang untuk pemasangan di permukaan (surface mounted) dengan basis octal 8 pin. Relai ini memiliki rating arus 40 A dan tegangan AC 24V, serta dilengkapi terminal sekrup untuk koneksi listrik yang aman. Dengan kemampuan operasi 5 A pada 480V AC (beban resistif), produk ini cocok untuk aplikasi kontrol industri yang membutuhkan switching daya andal. Cari relai daya permukaan untuk panel kontrol Anda? SCHNEIDER 199AX-13 adalah pilihan tepat.

Supplied to Indonesia — compatible with 50 Hz installations. DHL Express delivery to Jakarta, Surabaya, Bandung, customs and duties handled door-to-door.

Pertanyaan yang Sering Diajukan

Apa spesifikasi SCHNEIDER Open Power Relay 199AX-13?

Relai SCHNEIDER seri 199 Power Series ini memiliki tipe DPDT, tegangan AC 24V, rating arus 40 A, basis octal 8 pin, dan pemasangan di permukaan. Arus operasi pada beban resistif adalah 5 A pada 480V AC, dengan koneksi terminal sekrup.

Untuk apa SCHNEIDER 199AX-13 digunakan?

Relai daya terbuka ini digunakan untuk switching beban listrik pada panel kontrol industri, sistem otomasi, dan peralatan pembakaran. Cocok untuk aplikasi yang memerlukan kontak DPDT dengan rating arus tinggi hingga 40 A.

Di mana beli SCHNEIDER Open Power Relay 199AX-13 di Indonesia?

Anda dapat membeli SCHNEIDER 199AX-13 melalui 3G Electric, distributor resmi yang memasok dan mengirimkan produk ini ke seluruh Indonesia. Kami menangani logistik dan bea cukai untuk memastikan produk sampai ke lokasi Anda.

Bagaimana cara memasang SCHNEIDER 199AX-13?

Relai ini dipasang di permukaan (surface mounted) dengan basis octal 8 pin. Hubungkan kabel ke terminal sekrup sesuai diagram rangkaian. Pastikan tegangan koil AC 24V sesuai suplai dan beban tidak melebihi rating 40 A.
