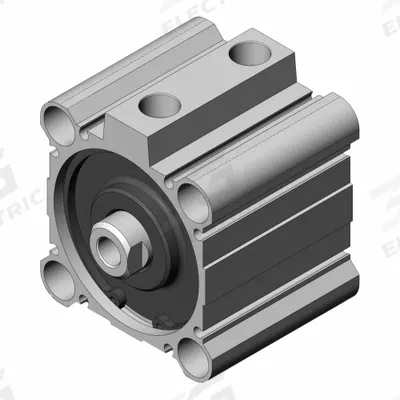

SMC Compact Cylinder: 63 mm Bore Dia, 20 mm Stroke Lg, Through Hole Mounting
The SMC CQ2 Compact Cylinder (MPN CDQ2B63-20DCZ) is a through-hole mount, single-rod, rotating-rod pneumatic cylinder with a 63 mm bore diameter and 20 mm stroke length. Constructed from aluminum, it features a 1/4…
SKU 3G-OTH-189595
- 6–10 business days door-to-door; Bea Cukai clearance typically 3–5 business days.
- Invoicing in IDR or USD. Bank transfer and corporate PO accepted.
- Dikirim ke: Jakarta, Surabaya, Bandung, Medan, Batam
Butuh bantuan pemasangan atau rekayasa?
Ajukan pertanyaan
Deskripsi Produk
The SMC CQ2 Compact Cylinder (MPN CDQ2B63-20DCZ) is a through-hole mount, single-rod, rotating-rod pneumatic cylinder with a 63 mm bore diameter and 20 mm stroke length. Constructed from aluminum, it features a 1/4 in BSPT port connection. This model is designed for compact, space-constrained industrial applications requiring rotary motion.
Supplied to Indonesia — compatible with 50 Hz installations. DHL Express delivery to Jakarta, Surabaya, Bandung, customs and duties handled door-to-door.
Pertanyaan yang Sering Diajukan
What is the SMC CQ2 compact cylinder used for?
The SMC CQ2 compact cylinder (MPN CDQ2B63-20DCZ) is used in space-constrained industrial automation applications requiring rotary motion. Its through-hole mounting and rotating rod design suit pick-and-place, clamping, and indexing tasks where a short stroke and compact footprint are critical.
What are the specifications of the SMC CDQ2B63-20DCZ cylinder?
The SMC CDQ2B63-20DCZ is a through-hole mount, single-rod, rotating-rod pneumatic cylinder with a 63 mm bore diameter and 20 mm stroke length. It is made of aluminum and has a 1/4 in BSPT port connection. The series is CQ2.
Where to buy the SMC CDQ2B63-20DCZ cylinder worldwide?
3G Electric supplies the SMC CDQ2B63-20DCZ compact cylinder worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your facility. Contact us for a quote and lead time on this SMC pneumatic cylinder.
How to install a through-hole mount compact cylinder?
Install the SMC CQ2 cylinder by aligning the through holes with your mounting surface and securing with bolts. Ensure the rotating rod is free to move without side loads. Connect 1/4 in BSPT ports to clean, lubricated compressed air. Verify stroke and rotation before full operation.
Digunakan dalam
Aplikasi umum untuk SMCSMC Produk
3G Electric memasok SMC through hole mount compact cylinders. Kami menyediakan produk asli dengan ketersediaan tersedia di gudang untuk SKU umum, dokumentasi teknis, dukungan commissioning, dan layanan garansi — di seluruh dunia.
