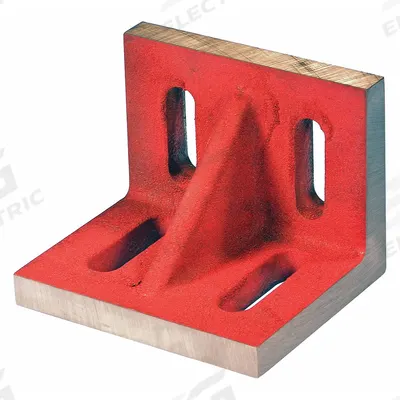

SUBURBAN Angle Plate: Cast Iron, 3 1/2 in L x 2 1/2 in W x 3 in H - Slotted Cast Iron Angle Plates
SUBURBANSlotted Cast Iron Angle Plates

SUBURBAN Angle Plate: Cast Iron, 3 1/2 in L x 2 1/2 in W x 3 in H

The SUBURBAN Angle Plate is a slotted cast iron angle plate measuring 3 1/2 in L x 2 1/2 in W x 3 in H. It features a flatness of 0.002 in, parallelism of 0.002 in, and a hole style of (4) 7/16 in. This product is…

SKU 3G-OTH-183683

Merek
SUBURBAN
Item
Angle Plate: Cast Iron, 3 1/2 in L x 2 1/2 in W x 3 in H
Kategori
Slotted Cast Iron Angle Plates
Tersedia untuk Dipesan
Stok tersedia & bea cukai ditangani
  • 6–10 business days door-to-door; Bea Cukai clearance typically 3–5 business days.
  • Invoicing in IDR or USD. Bank transfer and corporate PO accepted.
  • Dikirim ke: Jakarta, Surabaya, Bandung, Medan, Batam
Harga dagang sesuai penawaran — balasan dalam 24 jam
Jumlah
WhatsApp seorang insinyur
Tidak perlu akun — permintaan penawaran Anda langsung masuk ke tim insinyur kami. Akun gratis memungkinkan Anda melacak penawaran dan memesan ulang lebih cepat.
Pengiriman ke Seluruh Dunia
Pengiriman udara & laut
Lembar Data Atas Permintaan
Spesifikasi teknis
Penawaran 1 Hari
Balasan dalam 24 jam

Spesifikasi Teknis

SUBURBAN
Manufacturer Part Number
SAW-030302
H
3 1/2 in L x 2 1/2 in W x 3 in
Flatness
0.002 in
Hole Style
(4) 7/16 in
Parallelism
0.002 in
Square & Parallel
0.002 in
Lihat Lembar Spesifikasi Lengkap

Dokumen Teknis

Tidak ada dokumen teknis yang tersedia untuk produk ini.
Minta dokumentasi →
Tidak yakin ini adalah suku cadang yang tepat? Minta rekomendasi.

Butuh bantuan pemasangan atau rekayasa?

Instalasi, komisioning, rencana pemeliharaan, desain sistem, dan penawaran produk + layanan bundel — satu tim menangani cakupan penuh.
Bicaralah dengan seorang insinyur

Ajukan pertanyaan

SUBURBAN Produk
3G Electric (S) Pte. Ltd. — Singapore

Deskripsi Produk

The SUBURBAN Angle Plate is a slotted cast iron angle plate measuring 3 1/2 in L x 2 1/2 in W x 3 in H. It features a flatness of 0.002 in, parallelism of 0.002 in, and a hole style of (4) 7/16 in. This product is identified by manufacturer part number SAW-030302.

Supplied to Indonesia — compatible with 50 Hz installations. DHL Express delivery to Jakarta, Surabaya, Bandung, customs and duties handled door-to-door.

Pertanyaan yang Sering Diajukan

What is a SUBURBAN Angle Plate used for?

A SUBURBAN Angle Plate is used in precision machining and inspection setups to hold workpieces at a 90-degree angle. It is commonly used in toolrooms, quality control labs, and manufacturing for layout, drilling, and milling operations where flatness and parallelism of 0.002 in are critical.

What are the specifications of the SUBURBAN Angle Plate SAW-030302?

The SUBURBAN Angle Plate SAW-030302 is cast iron, measuring 3 1/2 in L x 2 1/2 in W x 3 in H. It has a flatness of 0.002 in, parallelism of 0.002 in, and a hole style of (4) 7/16 in. The brand is SUBURBAN and the part number is SAW-030302.

Where to buy SUBURBAN Angle Plates worldwide?

You can source SUBURBAN Angle Plates worldwide through 3G Electric, a global industrial equipment distributor since 1990. We handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time on the SAW-030302 or other SUBURBAN precision tools.

How to select a SUBURBAN Angle Plate for inspection work?

Select a SUBURBAN Angle Plate based on required flatness and parallelism tolerances, typically 0.002 in for precision setups. Choose size to fit your workpiece; the SAW-030302 is 3 1/2 in L x 2 1/2 in W x 3 in H. Ensure the hole pattern matches your clamping needs—this model has (4) 7/16 in holes.

Digunakan dalam

Aplikasi umum untuk SUBURBAN
Surface grinding setup — SUBURBAN magnetic sine plates (e.g., MSP-126-S2) for angular workpiece positioning
Inspection and quality control — SUBURBAN steel straight edges (e.g., SE-12-TS) for checking flatness of machine tables
Toolroom fixturing — SUBURBAN slotted cast iron angle plates (e.g., SAW-120908) for holding workpieces during milling
Compound angle machining — SUBURBAN compound sine plates (e.g., SPC-1212-S2) for multi-axis angular setups
Precision grinding of small parts — SUBURBAN hardened steel angle plates (e.g., AP-334-S0) with 0.0002 in tolerance for tight-tolerance workholding
