A.r. North America 3G-OTH-93551 — Spesifikasi Teknis

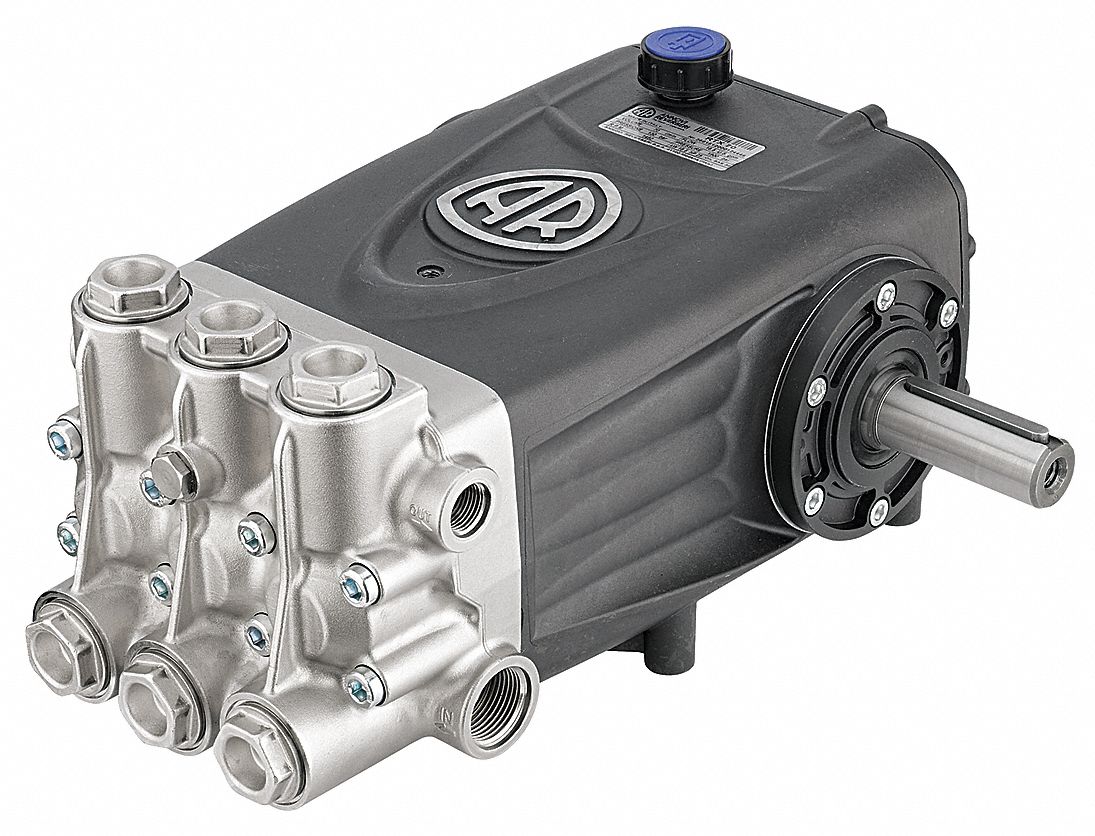

The A.R. NORTH AMERICA RTX100 is a belt-driven triplex plunger pump with a solid shaft and horizontal flange design. It features a die-cast aluminum crankcase, forged steel crankshaft, Buna-N seals, and oil bath lubrication, with a maximum flow rate of 24 gpm. Both intake and discharge connections are BSP type, and the pump is constructed with nickel-plated brass.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Nickel Plated Brass |
| Brand | A.R. NORTH AMERICA |
| Shaft Type | Solid |
| Flange Type | Horizontal Plunger Pump |
| Lubrication | Oil Bath |
| Piston Design | Triplex |
| Seal Material | Buna-N |
| Max. Flow Rate | 24 gpm |
| Crankcase Material | Die Cast Aluminum |
| Crankshaft Material | Forged Steel |
| Intake Connection Type | BSP |
| Manufacturer Part Number | RTX100 |
| Discharge Connection Type | BSP |
| NORTH AMERICA Pressure Plunger Pump | Belt-Drive |
