Advance 3G-OTH-383321 — Spesifikasi Teknis

Name: Advance 3G-OTH-383321 ADVANCE LED Driver 180W: Class 2, 180 W Max. Power Output, 120 to 277V AC, 50 to 144V DC, 0-10V (MPN XI180C180V144BSF2). Key specifications — Brand: ADVANCE; Output Voltage: 50 to 144V DC; Dimming Method: 0-10V; Output Current: 0.10 to 1.80 A.
Brand: Advance

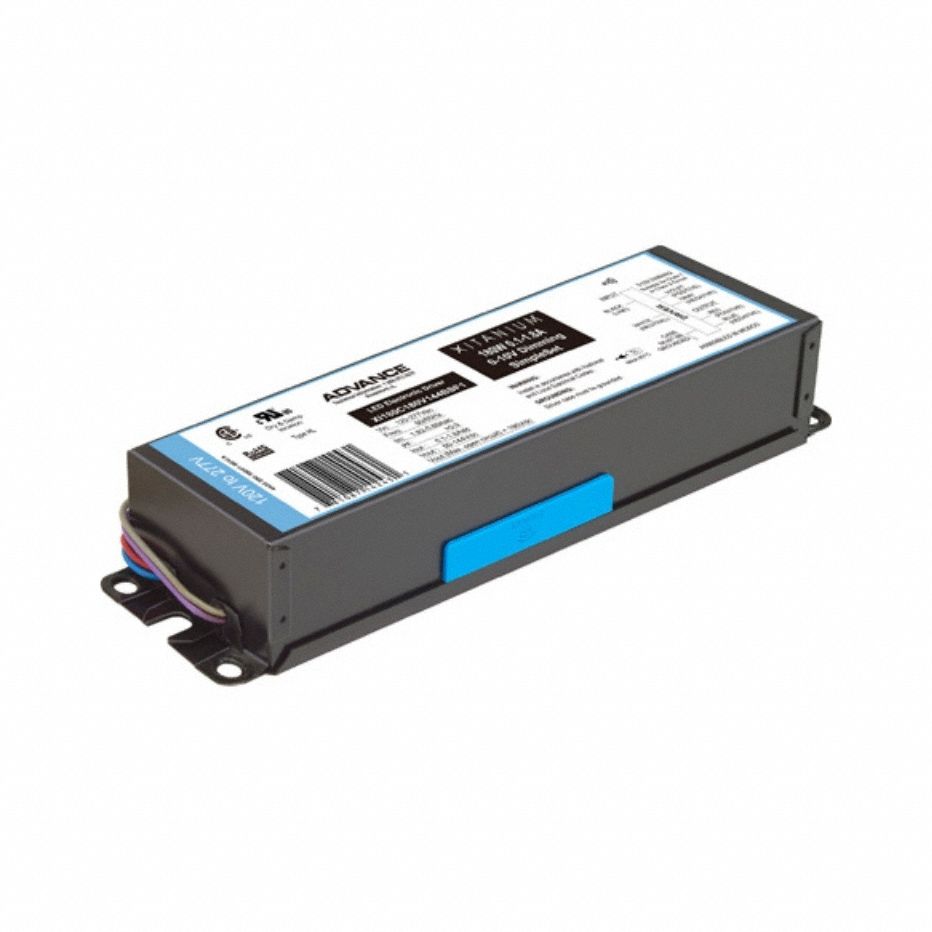

The ADVANCE LED Driver 180W: Class 2 is an app-programmable driver from the ADVANCE brand, offering a maximum power output of 180 W. It operates with an input voltage of 120 to 277V AC and provides an output voltage of 50 to 144V DC, with an output current adjustable from 0.10 to 1.80 A. This driver features 0-10V dimming and is identified by manufacturer part number XI180C180V144BSF2.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
AC	120 to 277V
DC	50 to 144V
Type	0-10V
Brand	ADVANCE
Dimming Method	0-10V
Output Current	0.10 to 1.80 A
Output Voltage	50 to 144V DC
Max. Power Output	180 W
Manufacturer Part Number	XI180C180V144BSF2
