Air King 3G-OTH-80468 — Spesifikasi Teknis

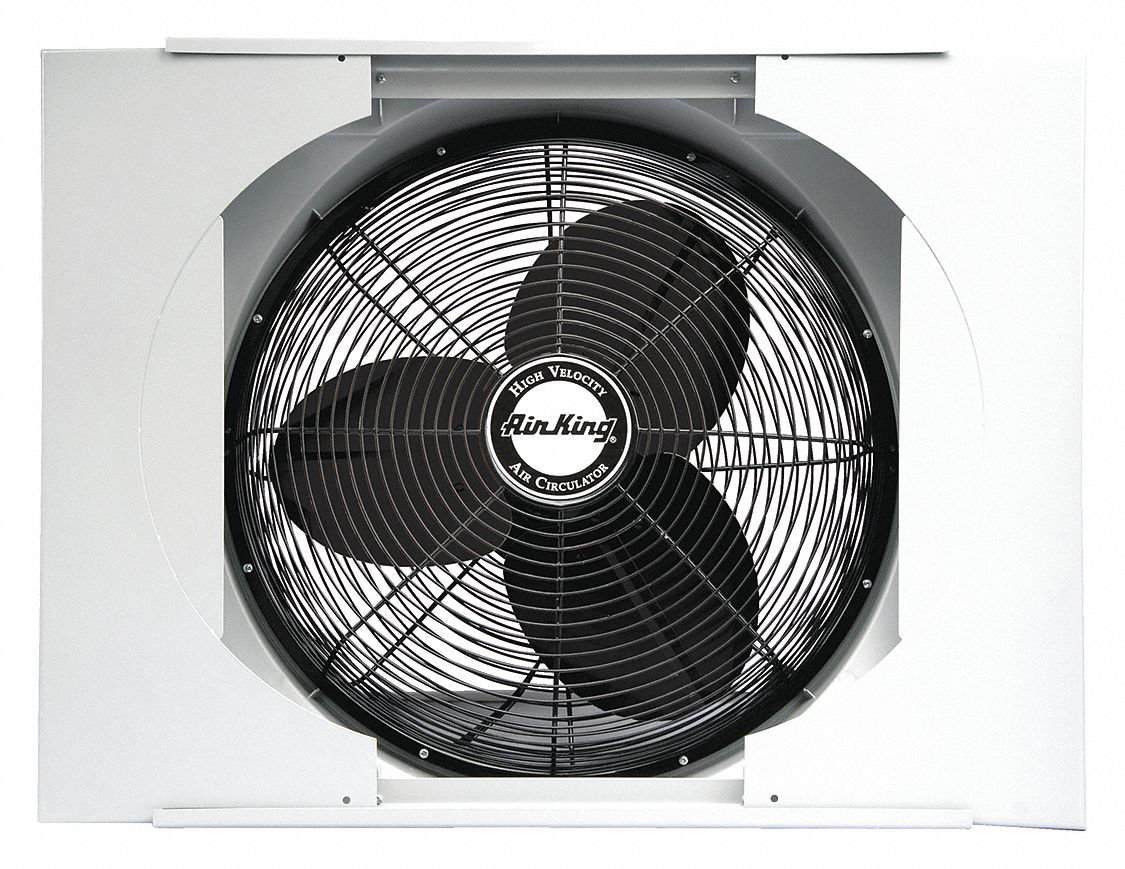

The AIR KING Whole House Fan: Window Mount (SKU 3C614, MPN 9166) is a window-mount whole-house fan with a 20-inch blade, delivering a maximum airflow of 3,560 cfm and covering up to 1,000 sq ft. It operates on 115V AC, single-phase power, fits windows 27 in to 38 in wide by 26-1/4 in high, and offers three speeds with speed controllability. This model features a standard-efficiency motor and is not designed for quiet operation or high-static-pressure applications.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Max. | 3,560 cfm |
| Type | 1,000 sq ft Coverage, Direct Drive |
| Blade | 20 in |
| Brand | AIR KING |
| Fan Style | Whole-House |
| Quiet Design | No |
| Nominal Voltage | 115V AC, Single Phase |
| Fits Window Size | 27 in to 38 in W x 26-1/4 in H |
| Number Of Speeds | 3 |
| Mounting Location | Window |
| Nameplate Voltage | 120V AC |
| Rough Opening Type | Square |
| Speed Controllable | Yes |
| High-Efficiency Motor | No |
| Motor Efficiency Broad | Standard-Efficiency Motor |
| Maximum Airflow - Range | 3,000 to 4,999 cfm |
| Manufacturer Part Number | 9166 |
| For High-Static Pressure Applications | No |
