Approved Vendor 3G-OTH-29133 — Spesifikasi Teknis

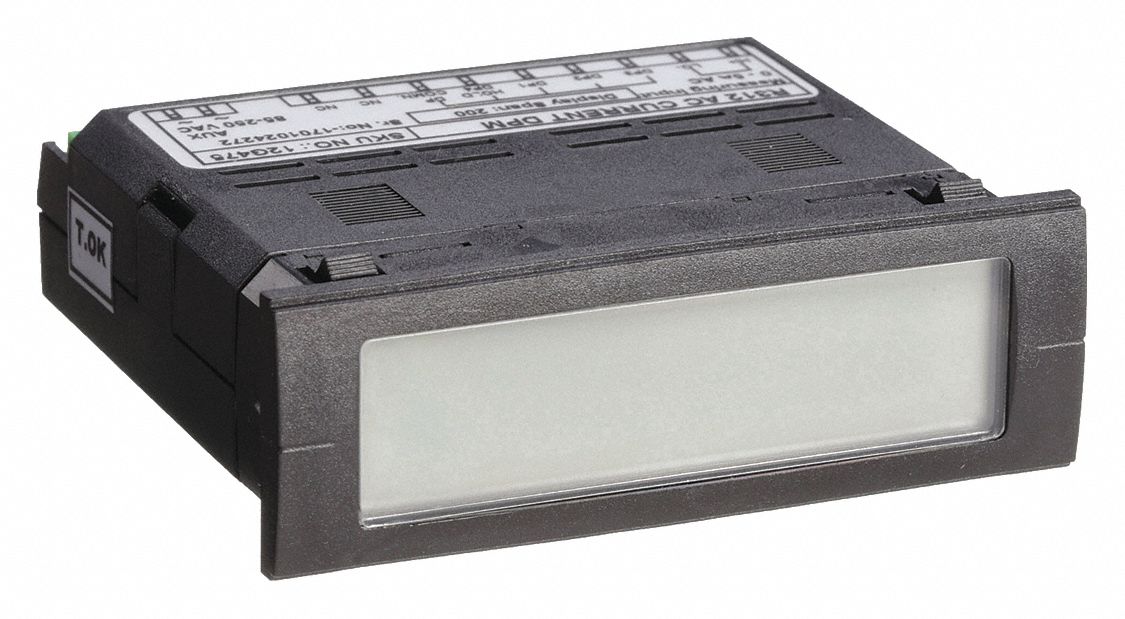

The APPROVED VENDOR Digital Panel Meter, model 12G475 from the R312 series, is an AC current digital panel meter with a 0 A to 5 A input range and a display span of 0 to 200. It features a gray LCD screen, true RMS AC magnitude calculation, and an accuracy of +/-0.5% of Reading +/-5 Count. The meter includes mounting brackets and uses screw clamp terminal connections.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | - Min, 200 Display Span - Max, 12G475, 0 A – 5 A |
| Brand | APPROVED VENDOR |
| Series | R312 |
| Accuracy | +/-0.5% of Reading +/-5 Count |
| Includes | Mounting Brackets |
| Input Type | AC Current |
| Product Type | Digital Panel Meter |
| AC Magnitude Calculation | True RMS |
| Manufacturer Part Number | 12G475 |
| Terminal Connection Type | Screw Clamp |
| Digital Display Screen Type | LCD |
| Digital Display Screen Color | Gray |
