Approved Vendor 3G-OTH-442013 — Spesifikasi Teknis

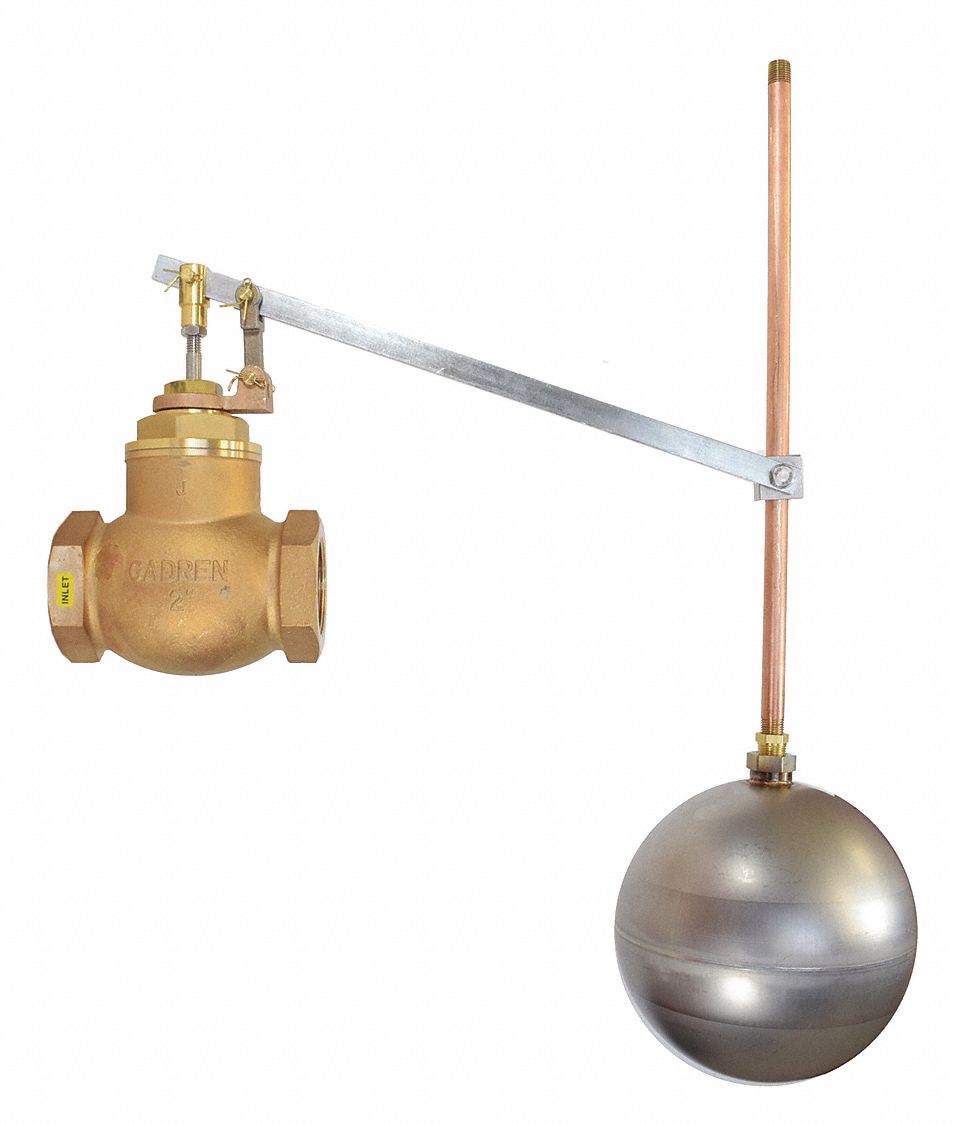

The APPROVED VENDOR Float Valve Assembly (SKU 415F26, MPN GHL300-GR) is a general service float and lever valve assembly for water media. It features a straight bronze valve body with female NPT inlet and outlet connections, a horizontal piping mounting configuration, and an adjustable arm. The assembly includes a rod and float, with a 3/8" NPT rod thread, and is rated for a flow rate of 400 gpm @ 60 psi.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Straight Valve Body, Cylindrical, Bronze, NPT |
| Brand | APPROVED VENDOR |
| Mounting | Horizontal Piping |
| Flow Rate | 400 gpm @ 60 psi |
| For Media | Water |
| Rod Thread | 3/8" NPT |
| Float Valve Type | Float Valve Assembly (Rod & Float Included) |
| Valve Body Style | Straight |
| Arm Adjustability | Adjustable |
| Inlet Connection Type | FNPT |
| Includes Float And Rod | Float and Rod Included |
| Outlet Connection Type | FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Manufacturer Part Number | GHL300-GR |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
