Armstrong International 3G-OTH-72677 — Spesifikasi Teknis

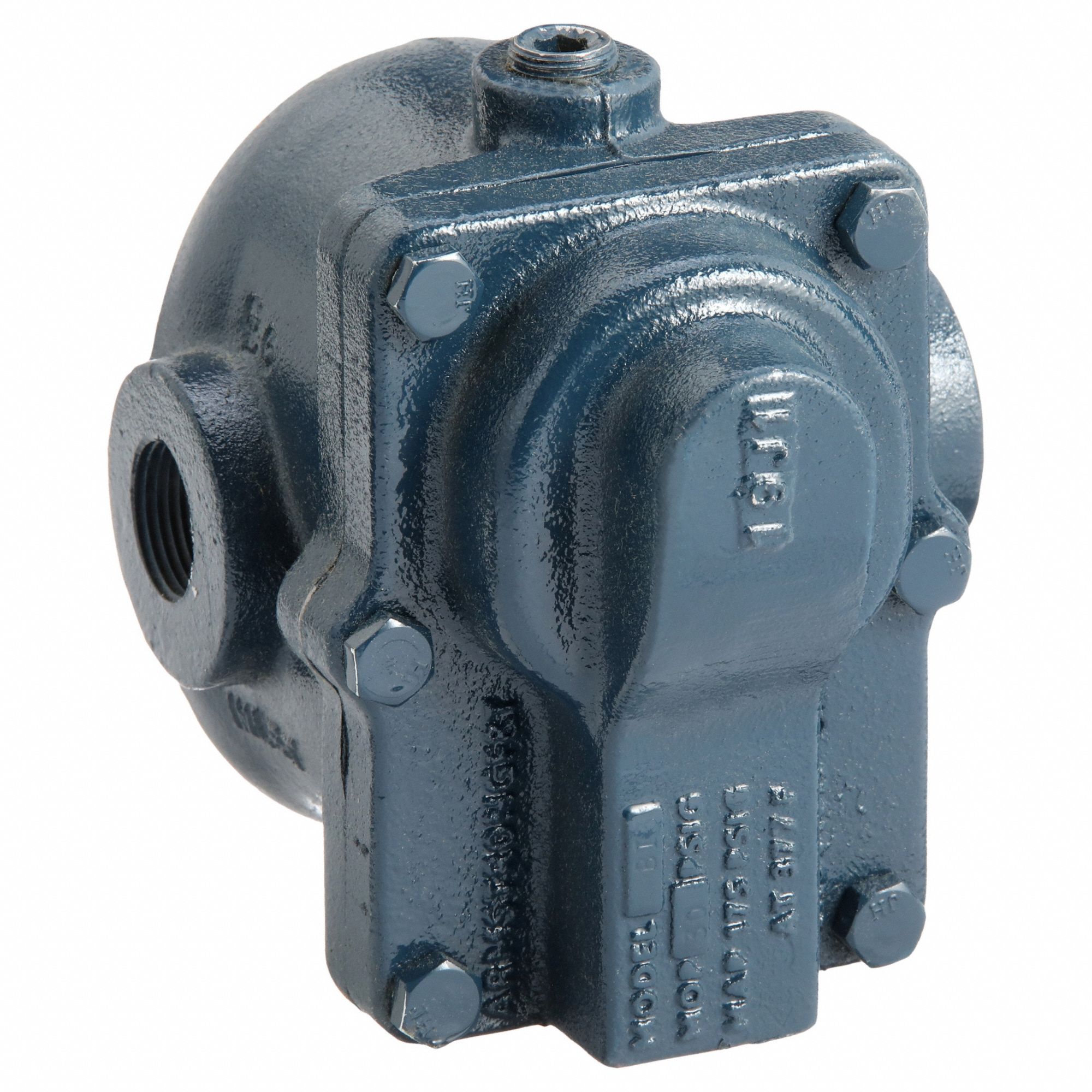

The ARMSTRONG INTERNATIONAL Steam Trap is a Cast Iron In-line Float & Thermostatic Steam Trap, model 30BI3 from the BI series. It features a 3/4 in FNPT connection, a maximum capacity of 1,200 lb/hr, and a maximum pressure of 30 psi with a maximum temperature of 353°F. The float is made of Stainless Steel, and the trap is designed for horizontal installation.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| FNPT | 3/4 in |
| Max. | 30 psi |
| Type | 1,200 lb/hr, In-line |
| Brand | ARMSTRONG INTERNATIONAL |
| Float Material | Stainless Steel |
| Manufacturer Series | BI |
| Installation Orientation | Horizontal |
| Manufacturer Part Number | 30BI3 |
