Ashcroft 3G-OTH-36258 — Spesifikasi Teknis

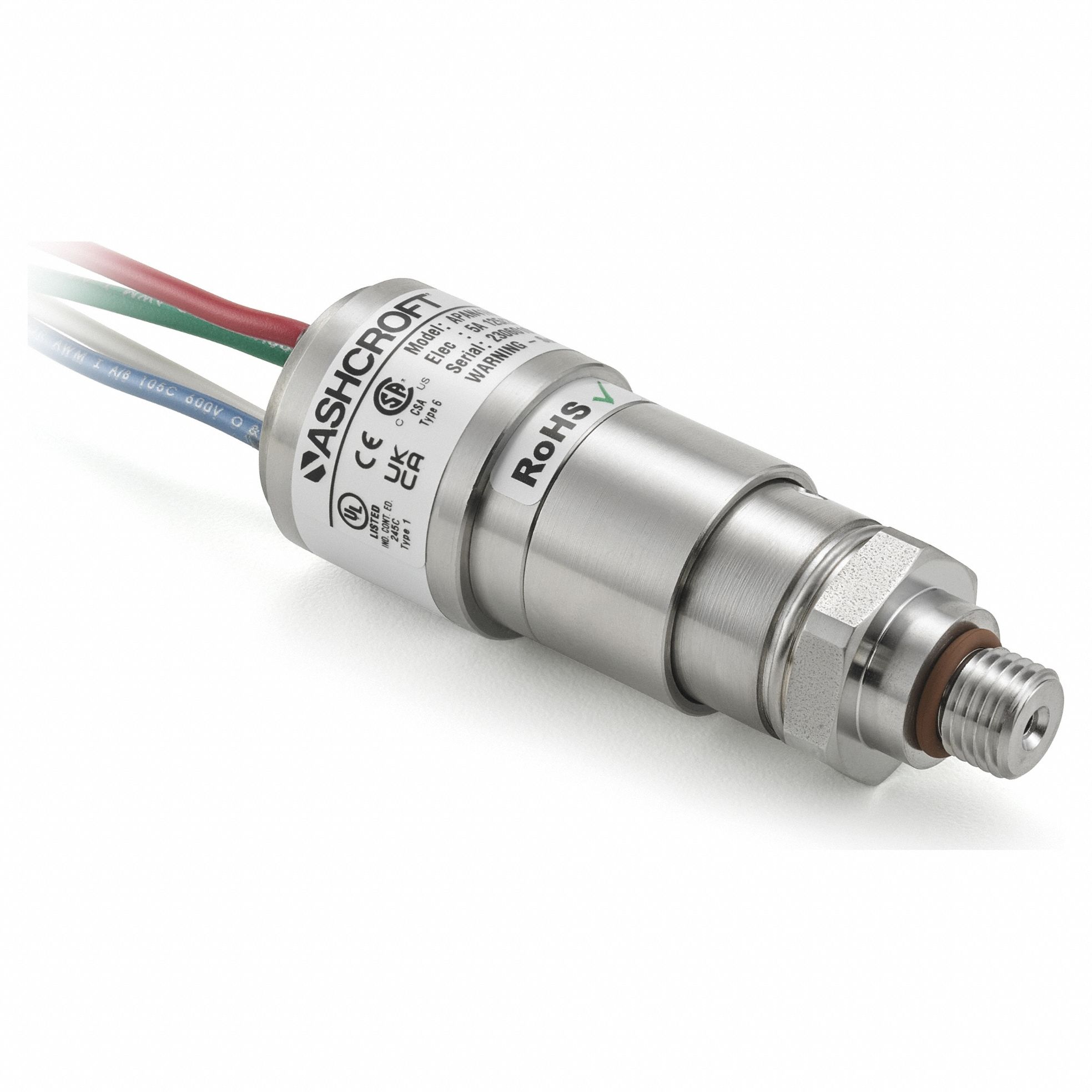

The ASHCROFT Pressure Switch: Piston Actuator is a diaphragm and piston miniature pressure switch with a 1NO/1NC contact configuration and a pressure range of 750 psi to 7,500 psi. It features a 7/16-20" SAE Male pressure connection and 3-18 AWG PVC insulated 12" wire leads for electrical connection.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | 1NO/1NC, 750 psi – 7,500 psi |
| Brand | ASHCROFT |
| SAE Male | 7/16-20" |
| Manufacturer Part Number | APAN41H012LB057500#-NSR |
| Pressure Connection Type | 7/16-20" SAE Male |
| Electrical Connection Type | 3-18 AWG PVC Insulated 12" Wire Leads |
