Ashcroft 3G-OTH-176583 — Spesifikasi Teknis

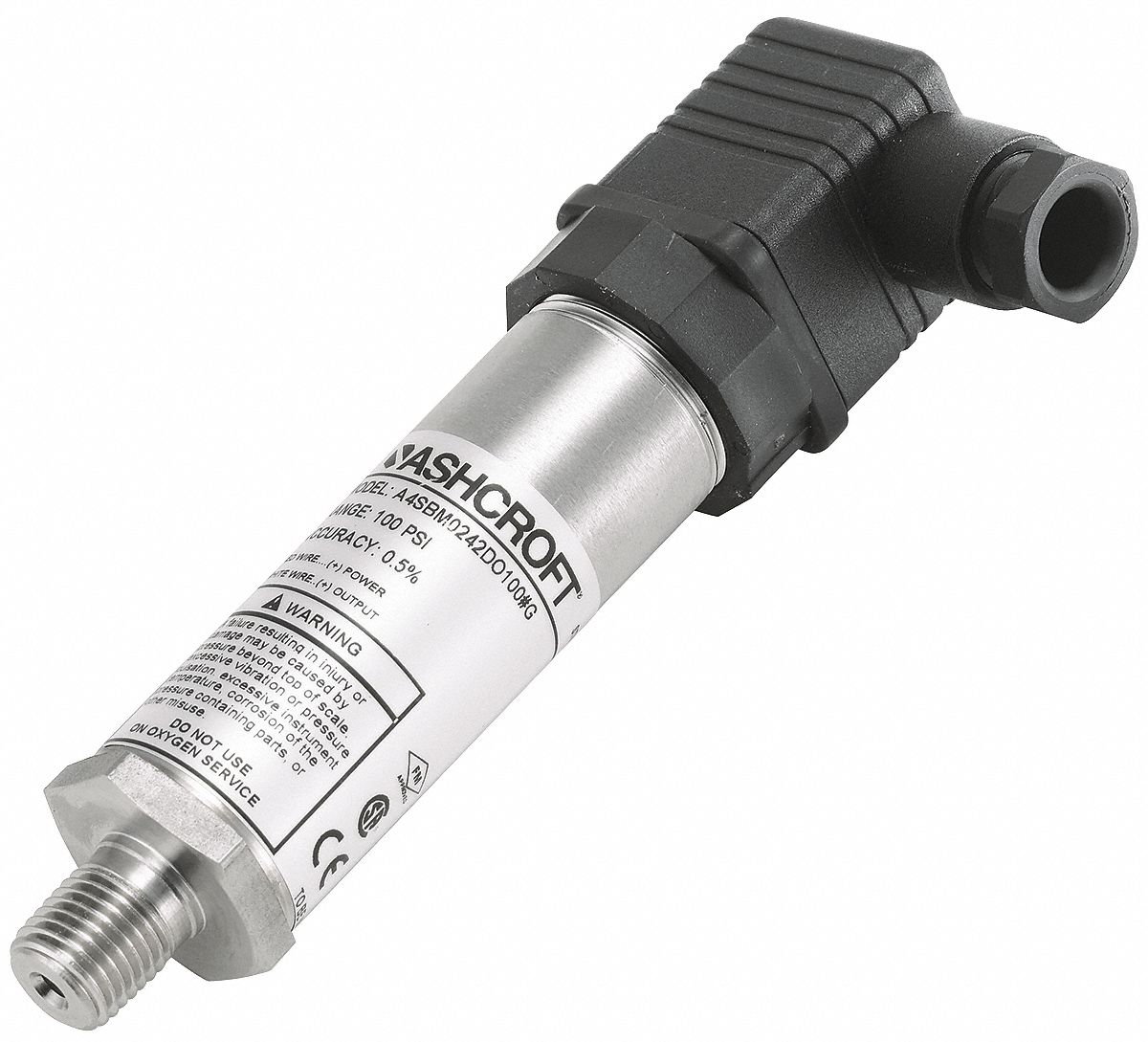

The ASHCROFT A4 Series Pressure Transmitter (0 psi to 500 psi) is an intrinsically safe-rated transmitter with a 4 to 20mA DC output and a Hirschmann® Form A DIN 43650-A connector. It features a stainless steel housing, IP65 and NEMA 4X ratings, and an accuracy of ±0.50% of Full Scale. The gauge pressure transmitter includes an NPT process connection, with overpressure of 1.2x Range and burst pressure of 1.5x Range, and comes with a NIST-Traceable Calibration Certificate.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| DC | 4 to 20mA |
| Type | Hirschmann® Form A DIN 43650-A, IP65 /4X |
| Brand | ASHCROFT |
| Output | 4 to 20mA DC |
| Series | A4 |
| Accuracy | ±0.50% of Full Scale |
| IP Rating | IP65 |
| NEMA Rating | 4X |
| Overpressure | 1.2x Range |
| Product Type | Intrinsically Safe-Rated Transmitter |
| Safety Rating | Class III, Div 1 and 2 |
| Burst Pressure | 1.5x Range |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Intrinsically Safe |
| Electrical Connection | Hirschmann® Form A DIN 43650-A |
| Pressure Type Measured | Gauge |
| Process Connection Type | NPT |
| Manufacturer Part Number | A4SBM0242D0500# |
| NIST Traceable Certificate | NIST-Traceable Calibration Certificate Included |
