Ashcroft 3G-OTH-175390 — Spesifikasi Teknis

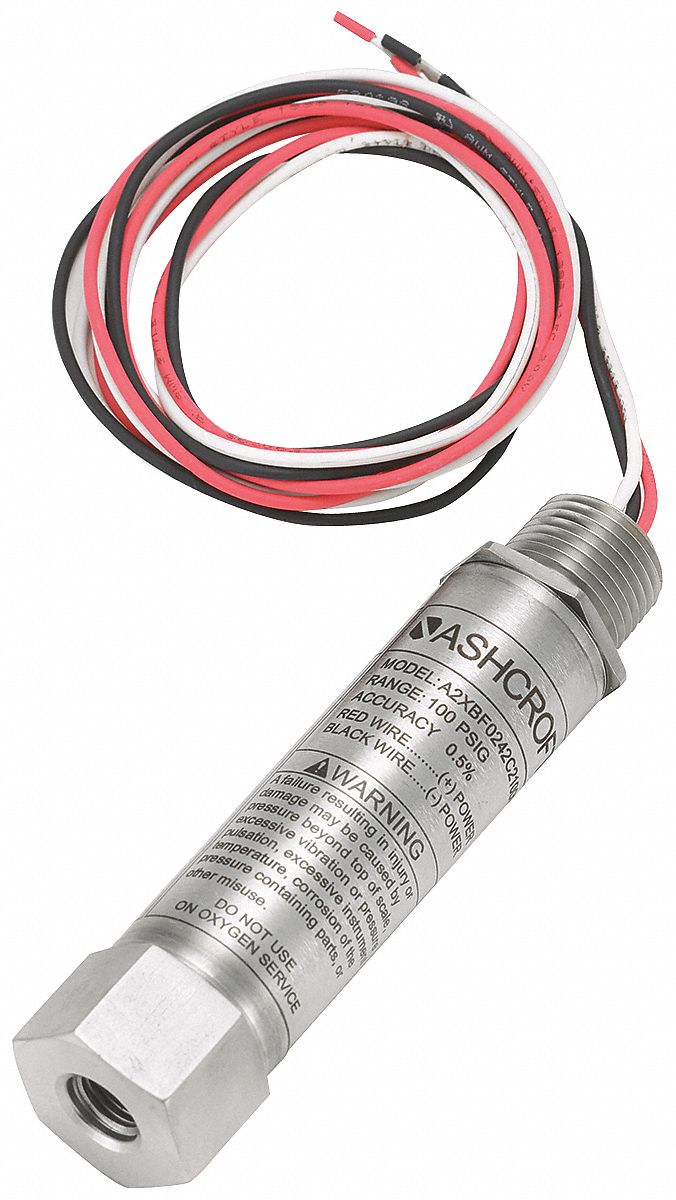

The ASHCROFT A2X Series Pressure Transmitter (SKU 5LRJ6) is an explosion-proof-rated transmitter with a conduit connection and wire leads, measuring gauge pressure from 0 psi to 1,000 psi. It provides a 1 to 5V DC output, features a stainless steel housing with IP65 and NEMA 7 ratings, and includes a NIST-traceable calibration certificate. The transmitter has an accuracy of ±0.50% of full scale, overpressure of 1.2x range, and burst pressure of 1.5x range, with a Class II, Div 1 and 2, Group E, F, G safety rating.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| DC | 1 to 5V |
| Type | Cable & Wire Leads, IP65 /4X/IP65 /7/IP65 /9 |
| Brand | ASHCROFT |
| Output | 1 to 5V DC |
| Series | A2X |
| Accuracy | ±0.50% of Full Scale |
| IP Rating | IP65 |
| NEMA Rating | 7 |
| Overpressure | 1.2x Range |
| Product Type | Explosion-Proof-Rated Transmitter |
| Safety Rating | Class II, Div 1 and 2, Group E, F, G |
| Burst Pressure | 1.5x Range |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Not Specified Intrinsically Safe |
| Pressure Type Measured | Gauge |
| Process Connection Type | NPT |
| Manufacturer Part Number | A2XBF0215C21000#G |
| NIST Traceable Certificate | NIST-Traceable Calibration Certificate Included |
