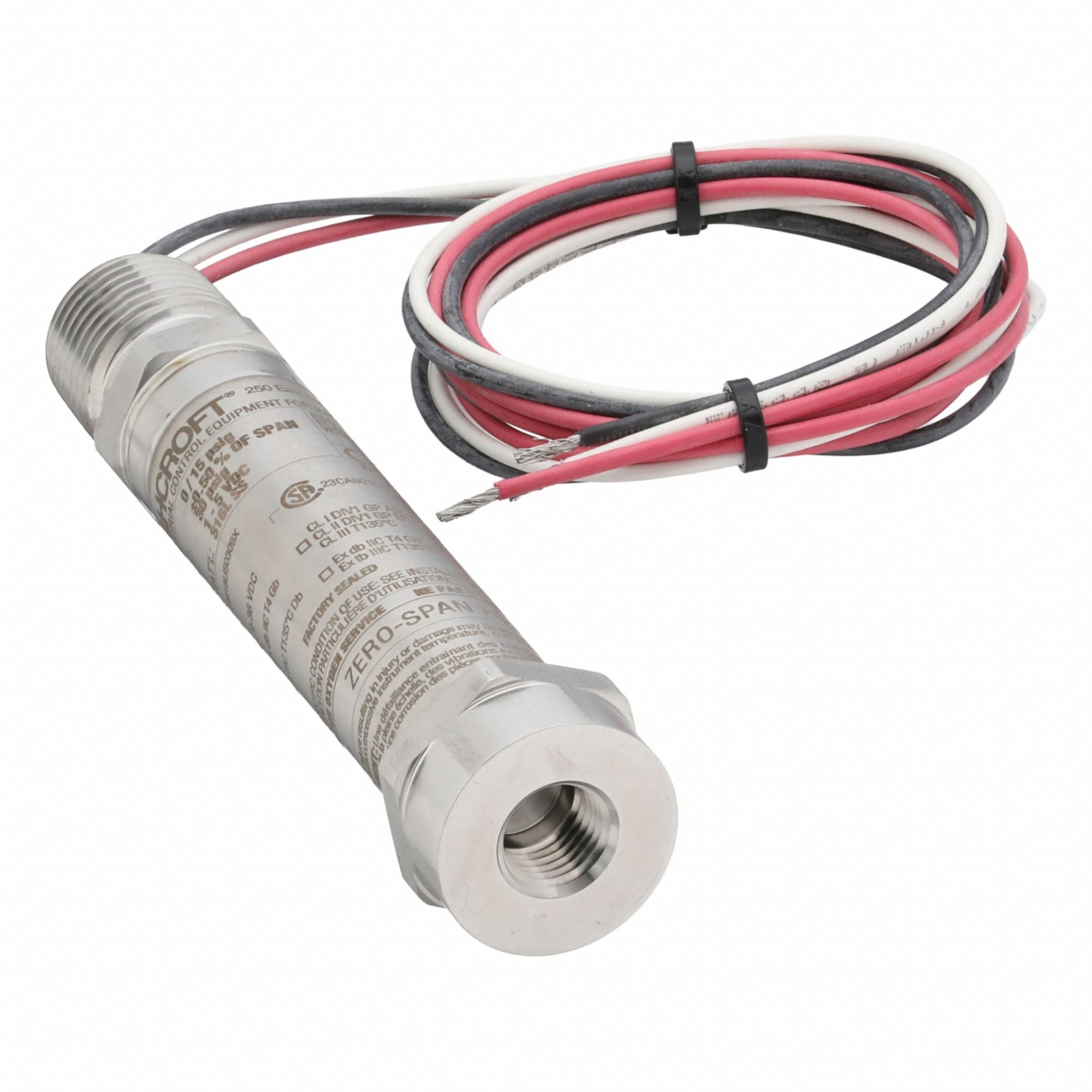

Ashcroft 3G-OTH-175416 — Spesifikasi Teknis
The ASHCROFT E2F Series Pressure Transmitter (15 psi) is an explosion-proof gauge-pressure transmitter with a 1 to 5V DC output, housed in stainless steel with an IP66 and NEMA 4X rating. It features a 1/2 in NPT conduit connection with cable, vibration-resistant construction, and accuracy of ±0.50%. Overpressure is 2x, burst pressure is 5x, and it is rated Class III, Div 1.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Brand | ASHCROFT |
| Output | 1 to 5V DC |
| Series | E2F |
| Accuracy | ±0.50% |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Overpressure | 2x |
| Safety Rating | Class III, Div 1 |
| Burst Pressure | 5x |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Not Specified Intrinsically Safe |
| Electrical Connection | 1/2 in NPT Conduit with Cable |
| Pressure Type Measured | Gauge |
| Process Connection Type | NPT |
| Manufacturer Part Number | E2FC5NF0215CFX03F15# |
| NIST Traceable Certificate | No NIST-Traceable Calibration Certificate Included |
| Resistance Properties - TS Only | Vibration Resistant |
