Ashcroft 3G-OTH-175379 — Spesifikasi Teknis

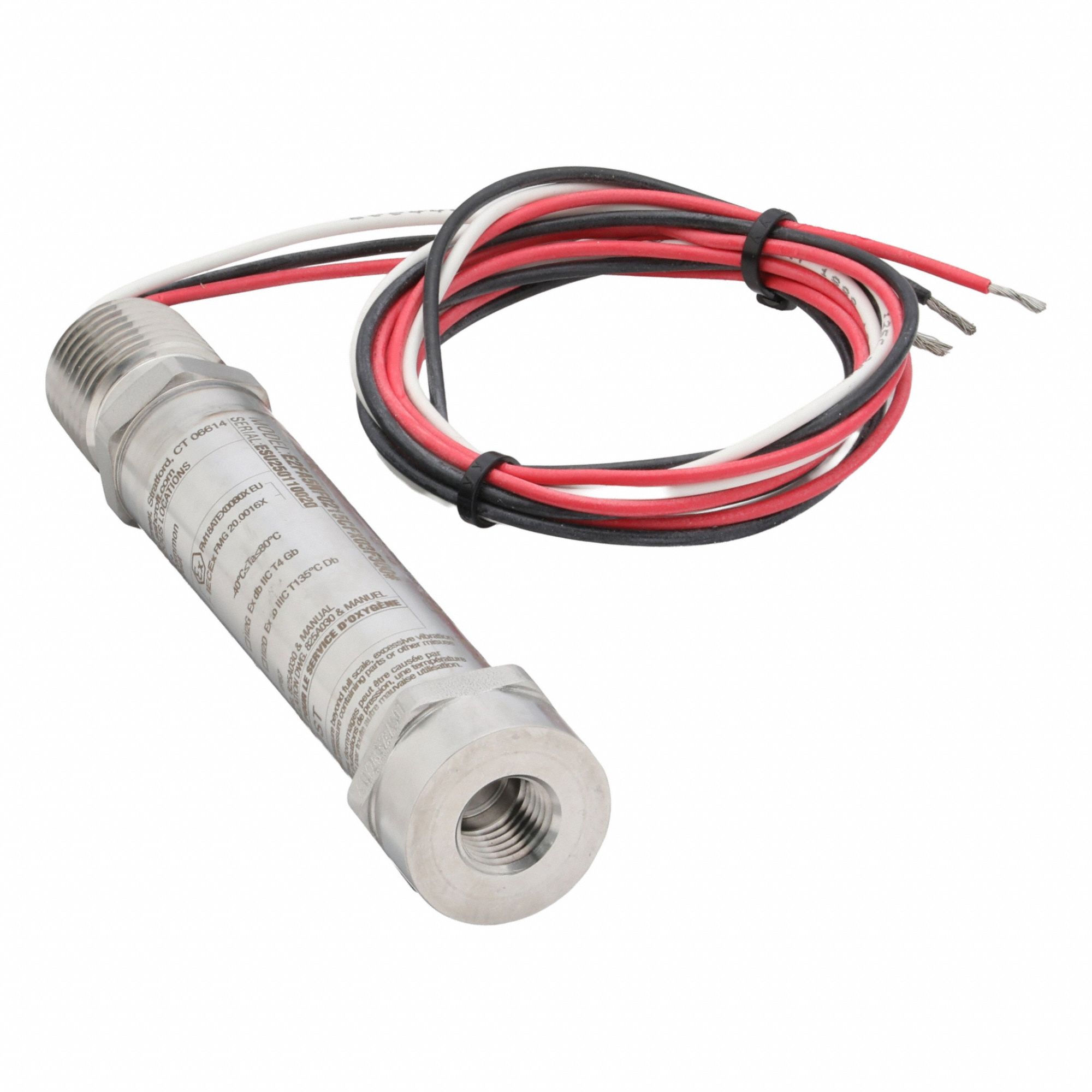

The ASHCROFT E2F Series Pressure Transmitter (SKU 851D32) is an explosion-proof gauge pressure transmitter with a 300 psi range, featuring a 1 to 5V DC output and ±0.50% accuracy. Housed in stainless steel with an IP66 and NEMA 4X rating, it includes a 1/2 in NPT conduit connection with cable and is rated Class II, Div 1, Group E, F, G for safety. This shock-resistant unit offers overpressure protection of 1.9x and burst pressure of 8x.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Brand | ASHCROFT |
| Output | 1 to 5V DC |
| Series | E2F |
| Accuracy | ±0.50% |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Overpressure | 1.9x |
| Safety Rating | Class II, Div 1, Group E, F, G |
| Burst Pressure | 8x |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Not Specified Intrinsically Safe |
| Electrical Connection | 1/2 in NPT Conduit with Cable |
| Pressure Type Measured | Gauge |
| Process Connection Type | NPT |
| Manufacturer Part Number | E2FA5NF0215CFX03F300# |
| NIST Traceable Certificate | No NIST-Traceable Calibration Certificate Included |
| Resistance Properties - TS Only | Shock Resistant |
