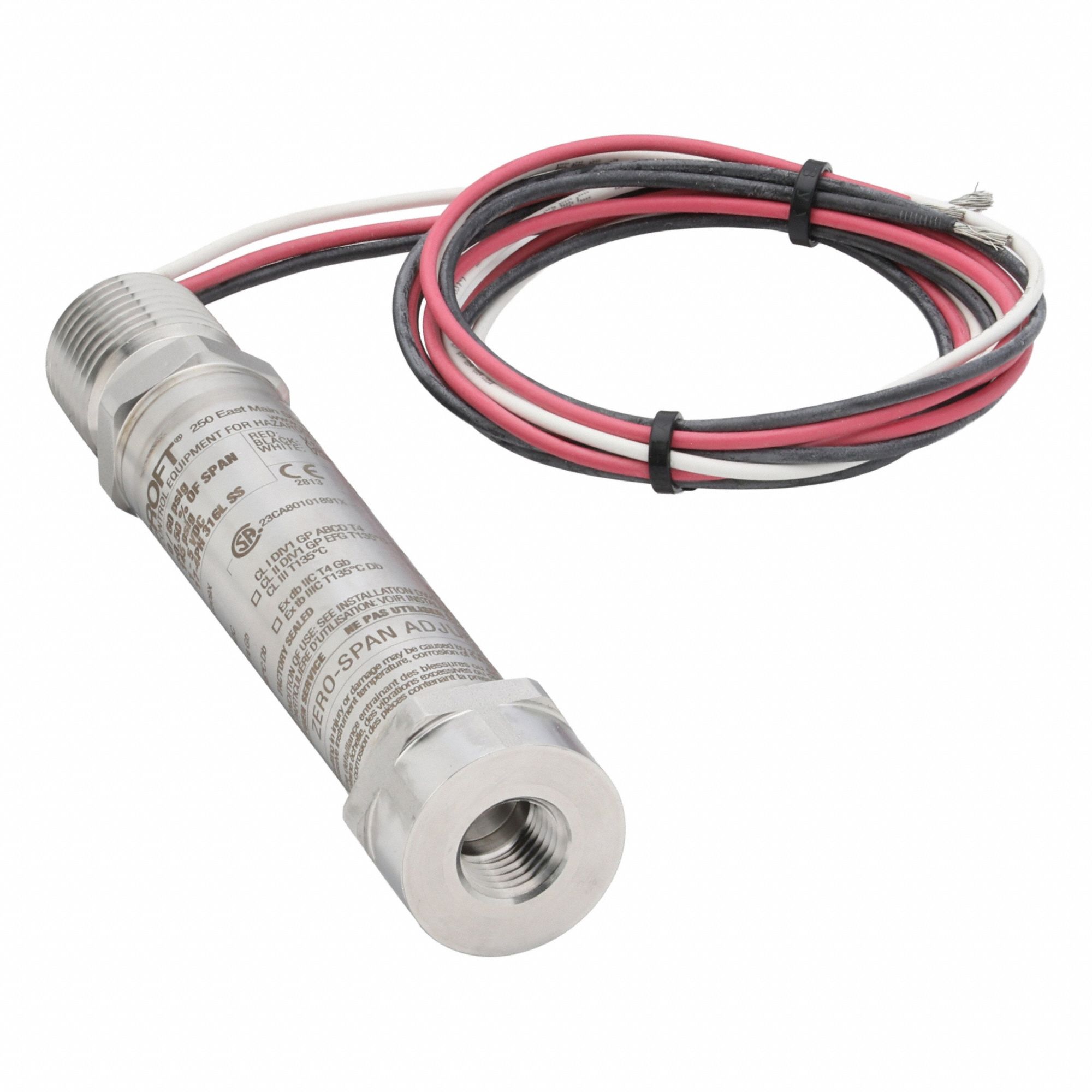

Ashcroft 3G-OTH-175528 — Spesifikasi Teknis
The ASHCROFT E2F Series Explosion-Proof Pressure Transmitter (60 psi) is a gauge pressure transmitter with a 1 to 5V DC output, ±0.50% accuracy, and a stainless steel housing rated IP66 and NEMA 4X. It features a 1/2 in NPT conduit with cable electrical connection and NPT process connection, with overpressure of 2.4x and burst pressure of 8x. This unit is rated Class I, Div 1, Group A, B, C, D for hazardous locations and is vibration resistant.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Brand | ASHCROFT |
| Output | 1 to 5V DC |
| Series | E2F |
| Accuracy | ±0.50% |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Overpressure | 2.4x |
| Safety Rating | Class I, Div 1, Group A, B, C, D |
| Burst Pressure | 8x |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Not Specified Intrinsically Safe |
| Electrical Connection | 1/2 in NPT Conduit with Cable |
| Pressure Type Measured | Gauge |
| Process Connection Type | NPT |
| Manufacturer Part Number | E2FA5NF0215CFX03F60# |
| NIST Traceable Certificate | No NIST-Traceable Calibration Certificate Included |
| Resistance Properties - TS Only | Vibration Resistant |
