Ashcroft 3G-OTH-175345 — Spesifikasi Teknis

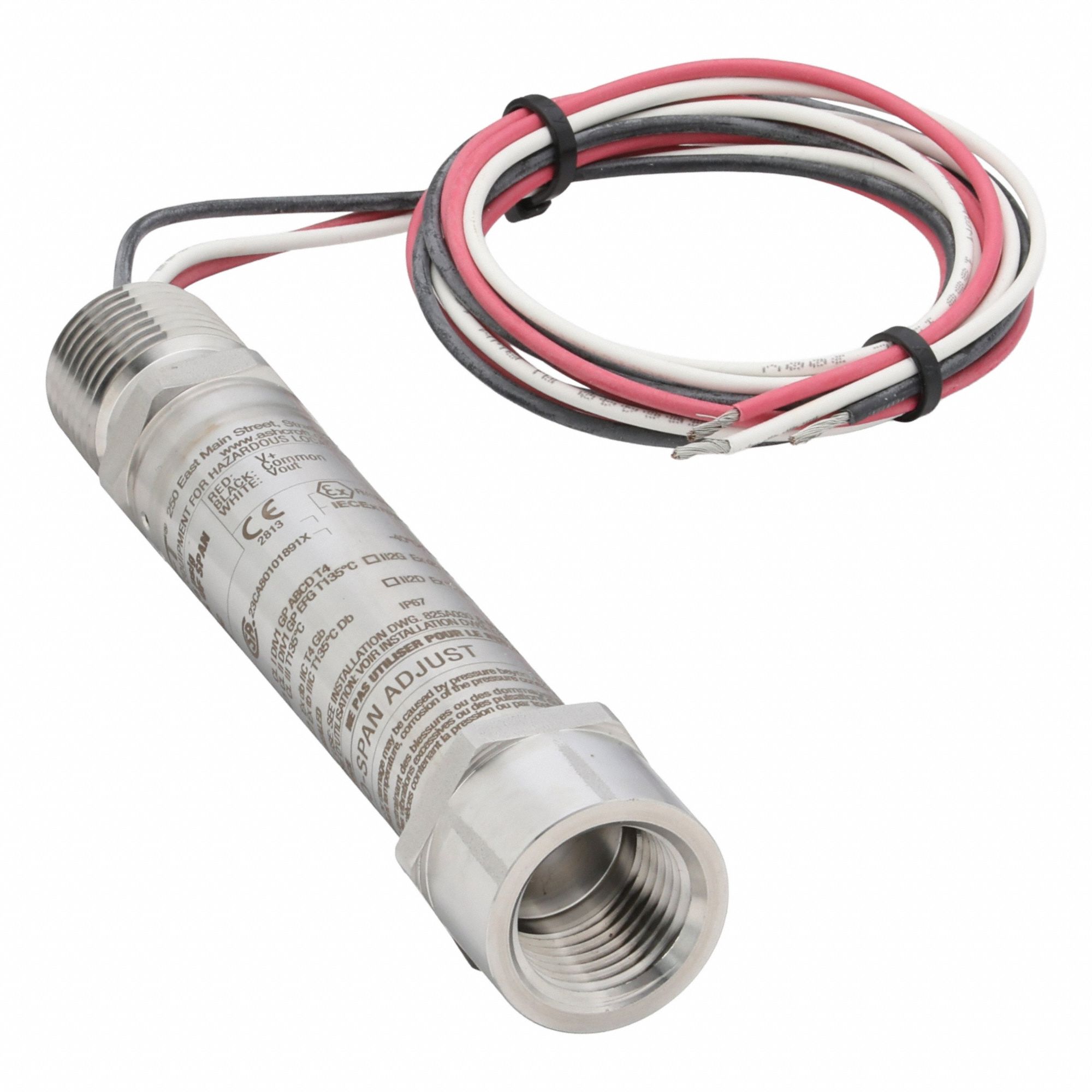

The ASHCROFT E2F Series Pressure Transmitter (SKU 851D53) is an explosion-proof compound pressure transmitter with a 1/2 in NPT conduit connection and wire leads, measuring -15 psi to 15 psi with a 1 to 5V DC output. It features a stainless steel housing, IP66 and NEMA 4X ratings, ±0.50% accuracy, 3.1x overpressure and 5x burst pressure, and is rated Class II, Div 1, Group E, F, G for hazardous locations.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Brand | ASHCROFT |
| Output | 1 to 5V DC |
| Series | E2F |
| Accuracy | ±0.50% |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Overpressure | 3.1x |
| Safety Rating | Class II, Div 1, Group E, F, G |
| Burst Pressure | 5x |
| Pressure Range | -15 psi to 15 psi |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Not Specified Intrinsically Safe |
| Electrical Connection | 1/2 in NPT Conduit with Cable |
| Pressure Type Measured | Compound |
| Process Connection Type | NPT |
| Manufacturer Part Number | E2FC5NF0415CFX03FV&15# |
| NIST Traceable Certificate | No NIST-Traceable Calibration Certificate Included |
| Resistance Properties - TS Only | Shock Resistant |
