Ashcroft 3G-OTH-175424 — Spesifikasi Teknis

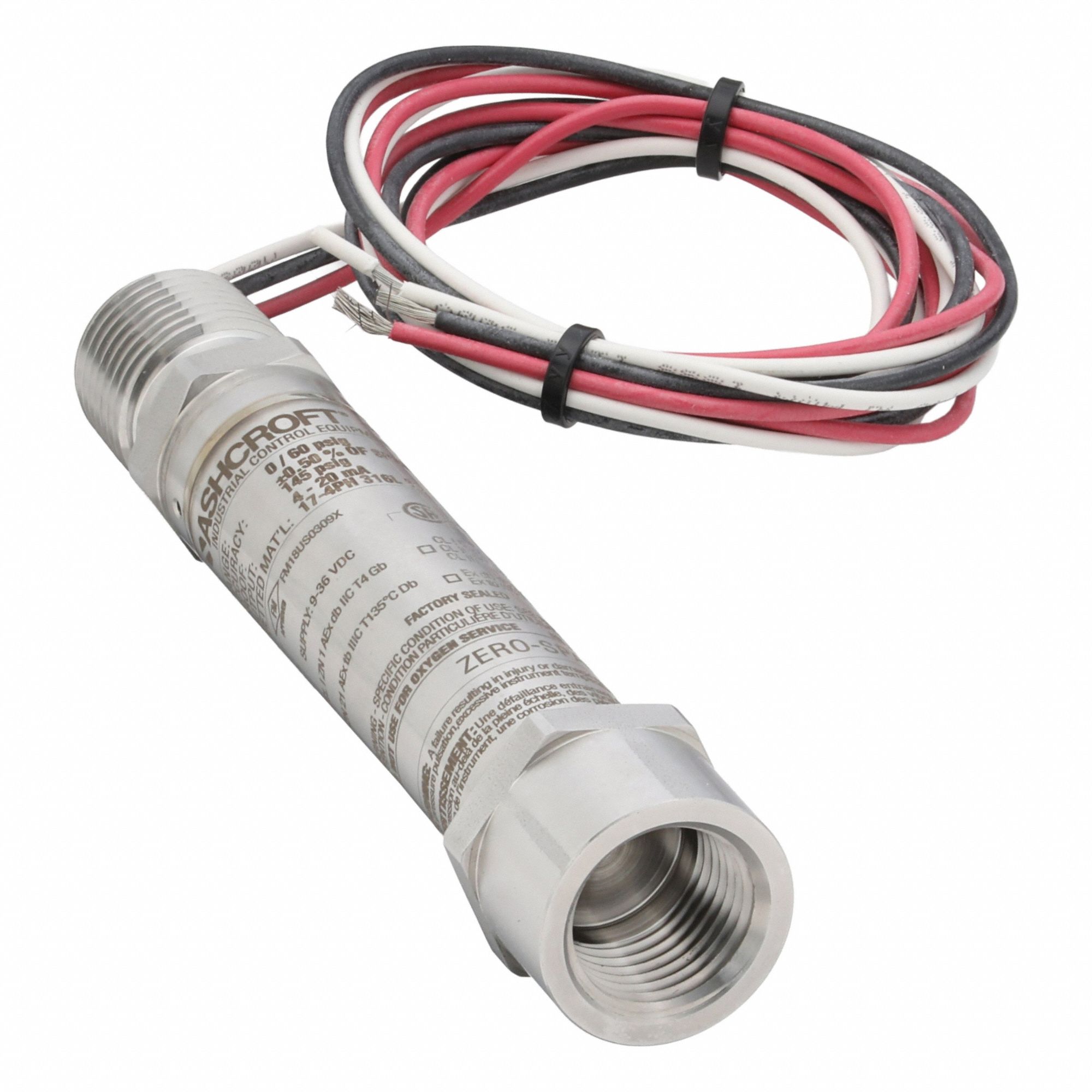

The ASHCROFT E2F Series Explosion-Proof Pressure Transmitter (SKU 851D73, MPN E2FA5NF0442CFX03F60#) measures gauge pressure up to 60 psi with a 4 to 20mA output and ±0.50% accuracy. It features a stainless steel housing, IP66/NEMA 4X rating, 1/2 in NPT conduit connection with cable, and NPT process connection. The transmitter is rated Class III, Div 1, with overpressure of 2.4x and burst pressure of 8x, and is shock resistant.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Brand | ASHCROFT |
| Output | 4 to 20mA |
| Series | E2F |
| Accuracy | ±0.50% |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Overpressure | 2.4x |
| Safety Rating | Class III, Div 1 |
| Burst Pressure | 8x |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Not Specified Intrinsically Safe |
| Electrical Connection | 1/2 in NPT Conduit with Cable |
| Pressure Type Measured | Gauge |
| Process Connection Type | NPT |
| Manufacturer Part Number | E2FA5NF0442CFX03F60# |
| NIST Traceable Certificate | No NIST-Traceable Calibration Certificate Included |
| Resistance Properties - TS Only | Shock Resistant |
