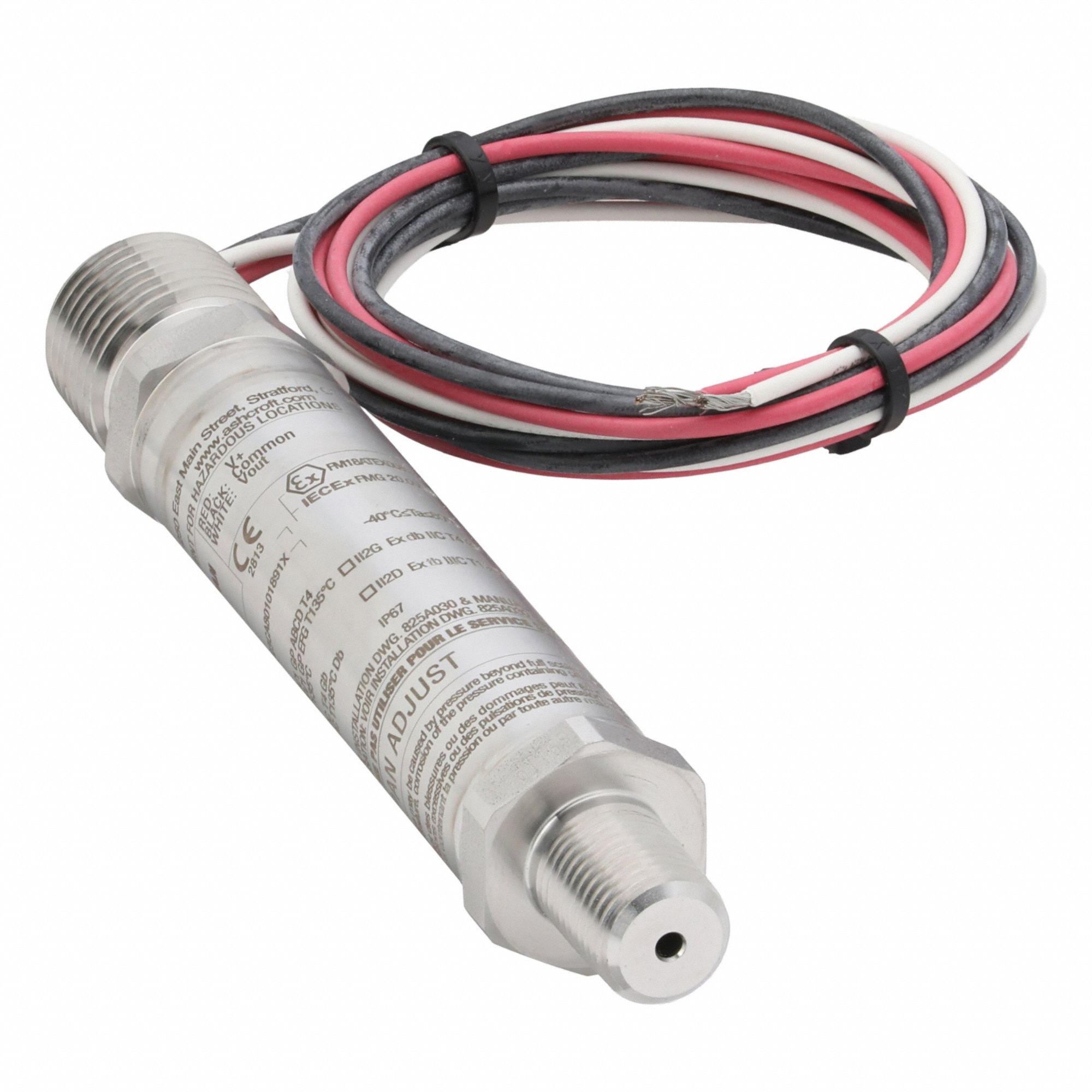

Ashcroft 3G-OTH-175343 — Spesifikasi Teknis
The ASHCROFT E2F Series Pressure Transmitter (SKU 851D77) is an explosion-proof transmitter with a 1/2 in NPT conduit connection and wire leads, featuring a compound pressure range of -15 psi to 15 psi and a 1 to 5V DC output. It offers ±0.50% accuracy, an overpressure rating of 3.1x, burst pressure of 5x, and is housed in stainless steel with IP66 and NEMA 4X ratings. This unit is safety rated Class II, Div 1, Group E, F, G, and is shock resistant, with an NPT process connection.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Brand | ASHCROFT |
| Output | 1 to 5V DC |
| Series | E2F |
| Accuracy | ±0.50% |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Overpressure | 3.1x |
| Safety Rating | Class II, Div 1, Group E, F, G |
| Burst Pressure | 5x |
| Pressure Range | -15 psi to 15 psi |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Not Specified Intrinsically Safe |
| Electrical Connection | 1/2 in NPT Conduit with Cable |
| Pressure Type Measured | Compound |
| Process Connection Type | NPT |
| Manufacturer Part Number | E2FC5NM0215CFX03FV&15# |
| NIST Traceable Certificate | No NIST-Traceable Calibration Certificate Included |
| Resistance Properties - TS Only | Shock Resistant |
