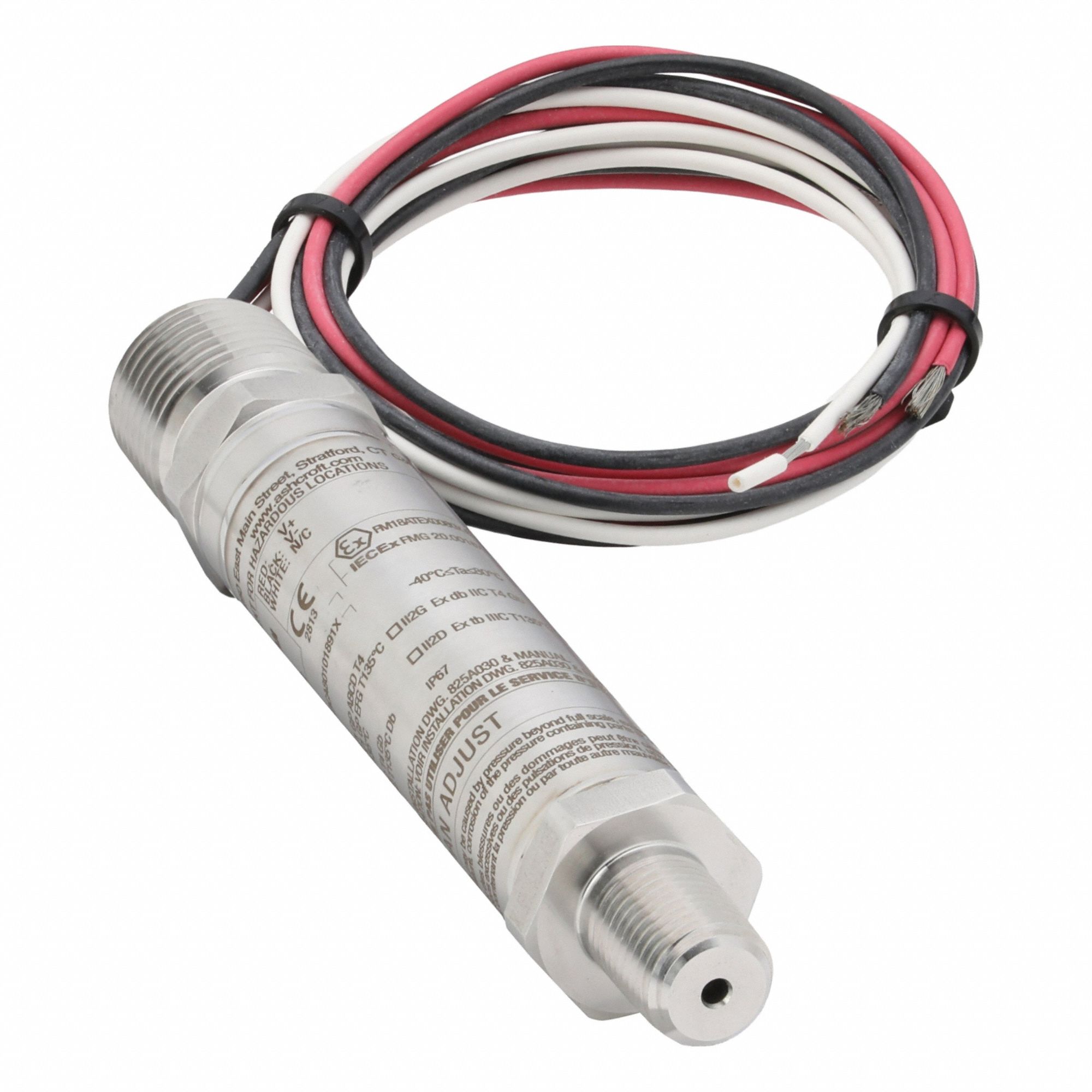

Ashcroft 3G-OTH-175373 — Spesifikasi Teknis
The ASHCROFT E2F Series Pressure Transmitter (200 psi) is an explosion-proof gauge pressure transmitter with a 4 to 20mA output, ±0.50% accuracy, and a stainless steel housing. It features a 1/2 in NPT conduit connection with cable, IP66 and NEMA 4X ratings, and is vibration resistant. Overpressure is 2x, burst pressure is 8x, and it carries a Class III, Div 1 safety rating.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Brand | ASHCROFT |
| Output | 4 to 20mA |
| Series | E2F |
| Accuracy | ±0.50% |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Overpressure | 2x |
| Safety Rating | Class III, Div 1 |
| Burst Pressure | 8x |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Not Specified Intrinsically Safe |
| Electrical Connection | 1/2 in NPT Conduit with Cable |
| Pressure Type Measured | Gauge |
| Process Connection Type | NPT |
| Manufacturer Part Number | E2FA5NM0242CFX03F200# |
| NIST Traceable Certificate | No NIST-Traceable Calibration Certificate Included |
| Resistance Properties - TS Only | Vibration Resistant |
