Ashcroft 3G-OTH-175506 — Spesifikasi Teknis

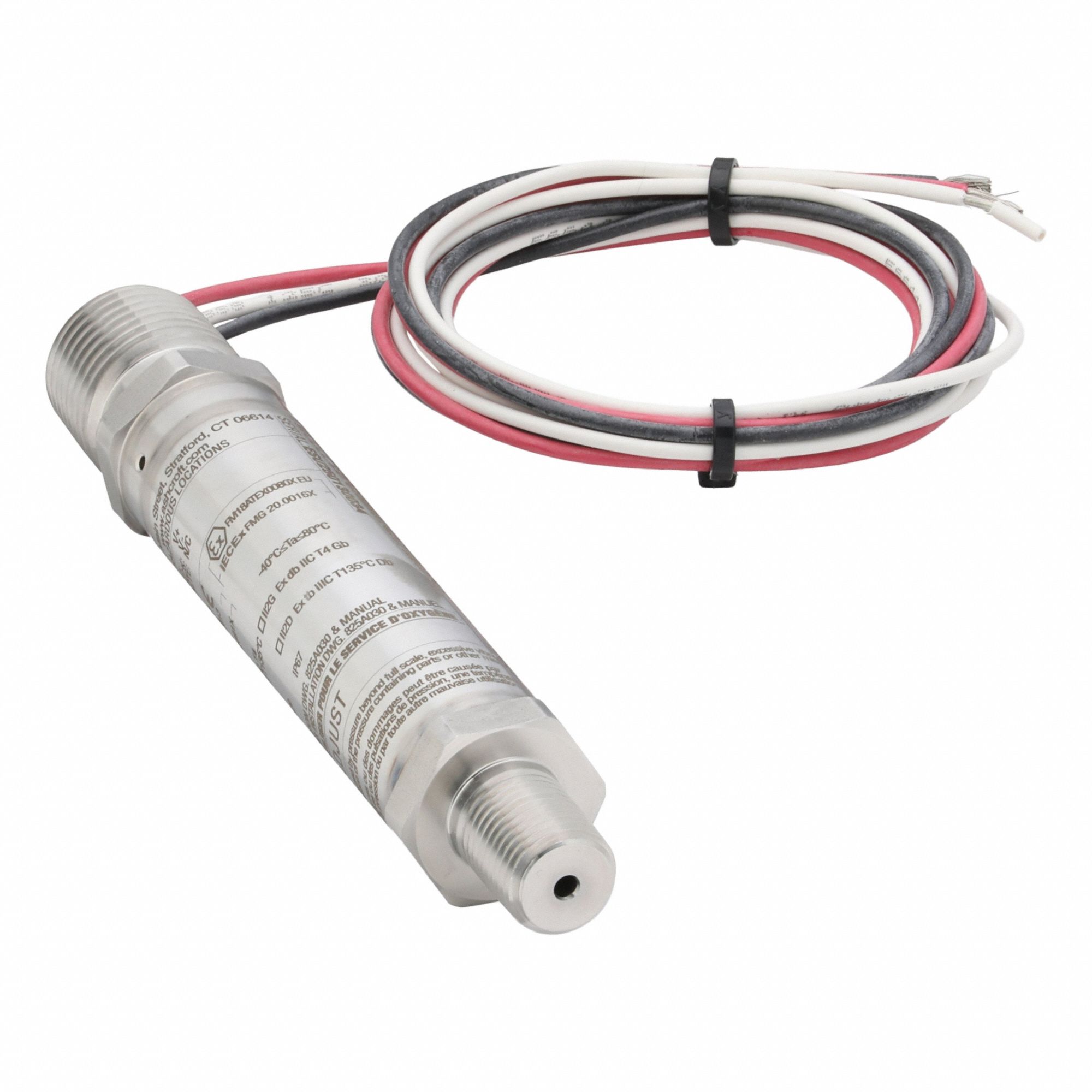

The ASHCROFT E2F Series Explosion-Proof Pressure Transmitter (5 psi) is a gauge pressure transmitter with a 4 to 20mA output, ±0.50% accuracy, and a stainless steel housing. It features a 1/2 in NPT conduit with cable electrical connection, IP66 and NEMA 4X ratings, and is rated Class I, Div 1, Groups A, B, C, D for hazardous locations. The transmitter offers 3x overpressure and 5x burst pressure protection, with an NPT process connection.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Brand | ASHCROFT |
| Output | 4 to 20mA |
| Series | E2F |
| Accuracy | ±0.50% |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Overpressure | 3x |
| Safety Rating | Class I, Div 1, Group A, B, C, D |
| Burst Pressure | 5x |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Not Specified Intrinsically Safe |
| Electrical Connection | 1/2 in NPT Conduit with Cable |
| Pressure Type Measured | Gauge |
| Process Connection Type | NPT |
| Manufacturer Part Number | E2FC5NM0242CFX03F5# |
| NIST Traceable Certificate | No NIST-Traceable Calibration Certificate Included |
| Resistance Properties - TS Only | Shock Resistant |
