Ashcroft 3G-OTH-175346 — Spesifikasi Teknis

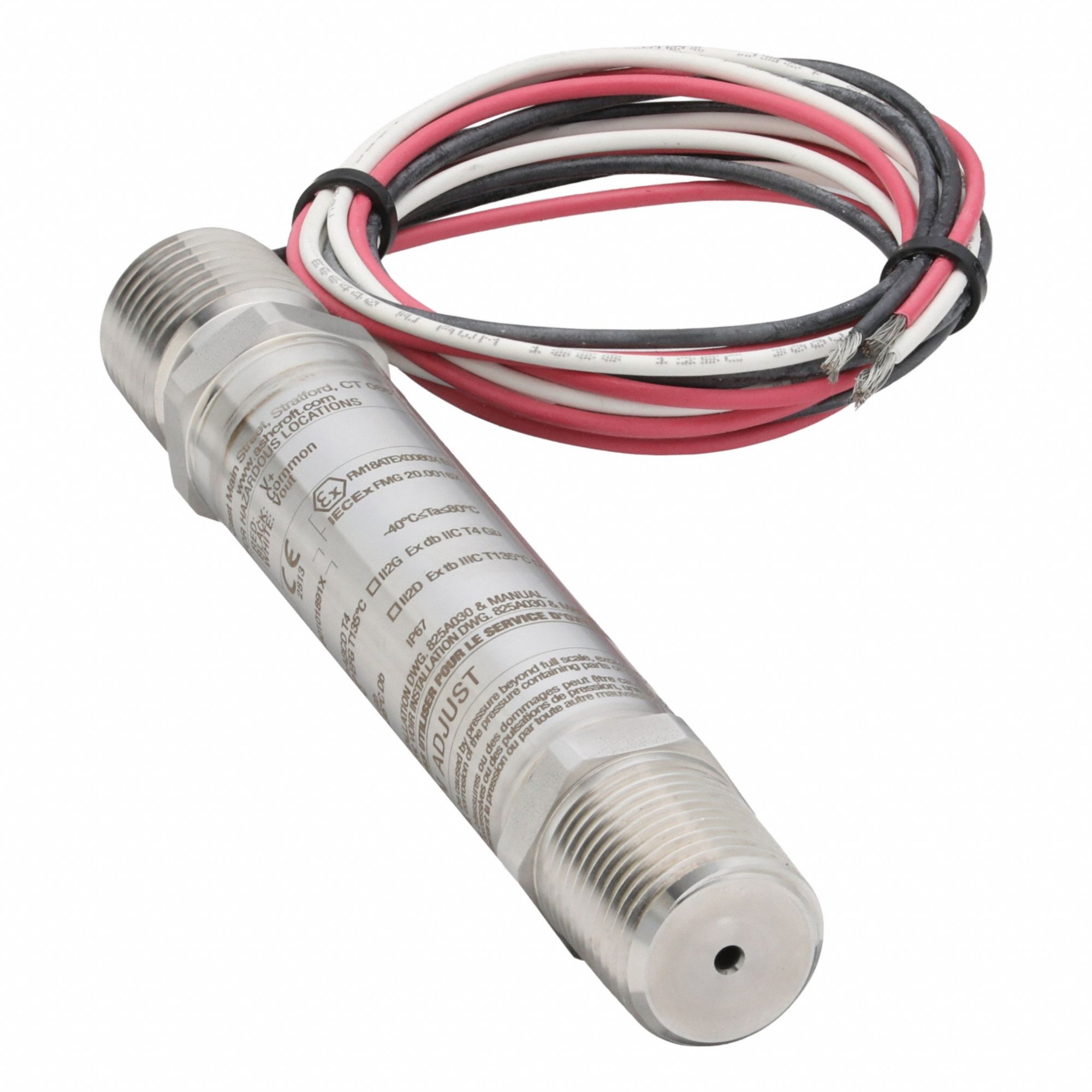

The ASHCROFT E2F Series Pressure Transmitter (SKU 851DA1) is an explosion-proof compound pressure transmitter with a 1/2 in NPT conduit connection and wire leads. It measures a pressure range of -15 psi to 15 psi with an accuracy of ±0.50% and a 1 to 5V DC output. The stainless steel housing is rated IP66 and NEMA 4X, with overpressure of 3.1x and burst pressure of 5x, and is vibration resistant.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Brand | ASHCROFT |
| Output | 1 to 5V DC |
| Series | E2F |
| Accuracy | ±0.50% |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Overpressure | 3.1x |
| Safety Rating | Class II, Div 1, Group E, F, G |
| Burst Pressure | 5x |
| Pressure Range | -15 psi to 15 psi |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Not Specified Intrinsically Safe |
| Electrical Connection | 1/2 in NPT Conduit with Cable |
| Pressure Type Measured | Compound |
| Process Connection Type | NPT |
| Manufacturer Part Number | E2FC5NM0415CFX03FV&15# |
| NIST Traceable Certificate | No NIST-Traceable Calibration Certificate Included |
| Resistance Properties - TS Only | Vibration Resistant |
