Ashcroft 3G-OTH-175457 — Spesifikasi Teknis

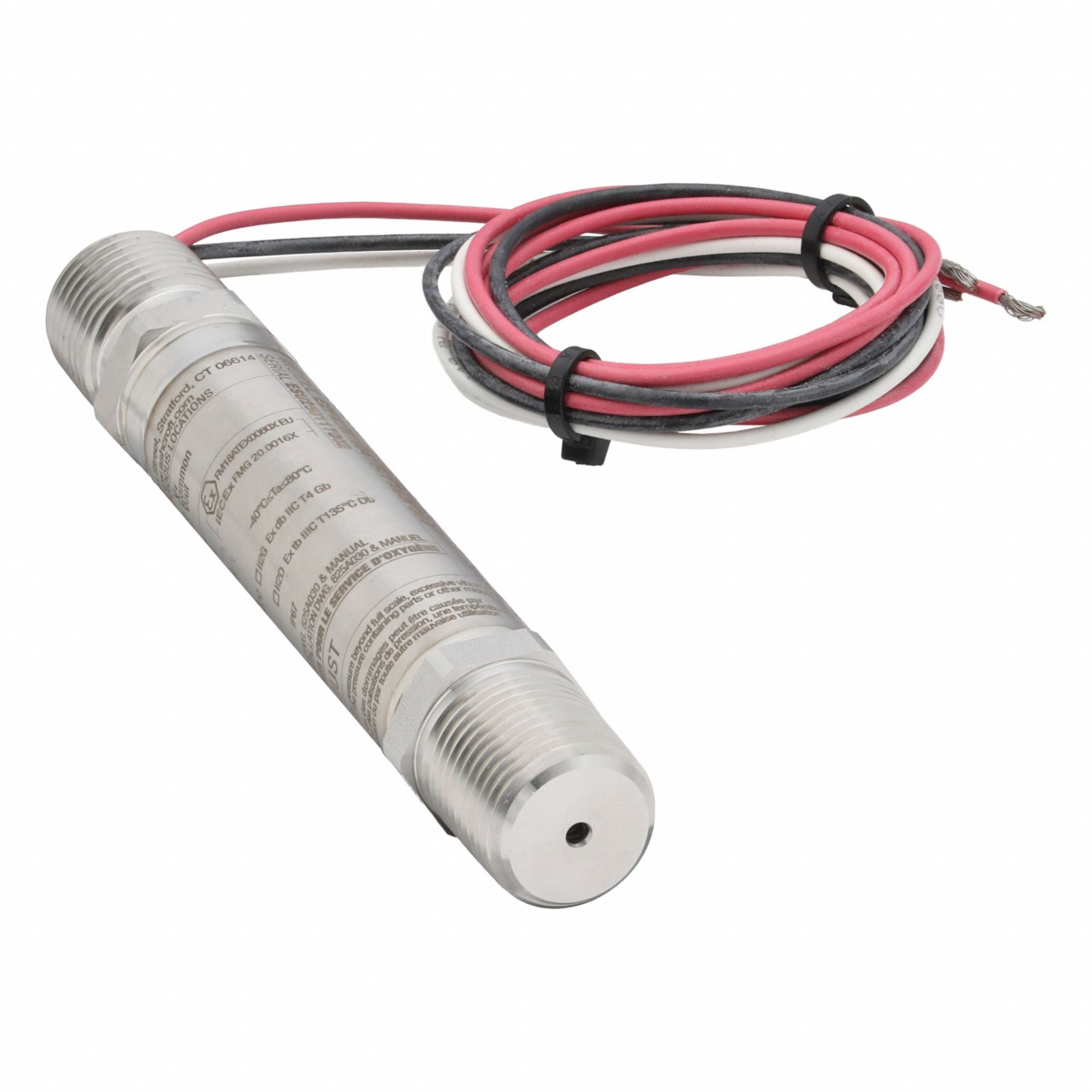

The ASHCROFT E2F Series Pressure Transmitter (SKU 851DA3) is an explosion-proof gauge pressure transmitter with a 30 psi range and a 1 to 5V DC output. It features a stainless steel housing, IP66 and NEMA 4X ratings, and a 1/2 in NPT conduit connection with cable. The unit is rated Class II, Div 1, Group E, F, G, is shock resistant, and has an accuracy of ±0.50%.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Brand | ASHCROFT |
| Output | 1 to 5V DC |
| Series | E2F |
| Accuracy | ±0.50% |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Safety Rating | Class II, Div 1, Group E, F, G |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Not Specified Intrinsically Safe |
| Electrical Connection | 1/2 in NPT Conduit with Cable |
| Pressure Type Measured | Gauge |
| Process Connection Type | NPT |
| Manufacturer Part Number | E2FA5NM0415CFX03F30# |
| NIST Traceable Certificate | No NIST-Traceable Calibration Certificate Included |
| Resistance Properties - TS Only | Shock Resistant |
