Ashcroft 3G-OTH-175514 — Spesifikasi Teknis

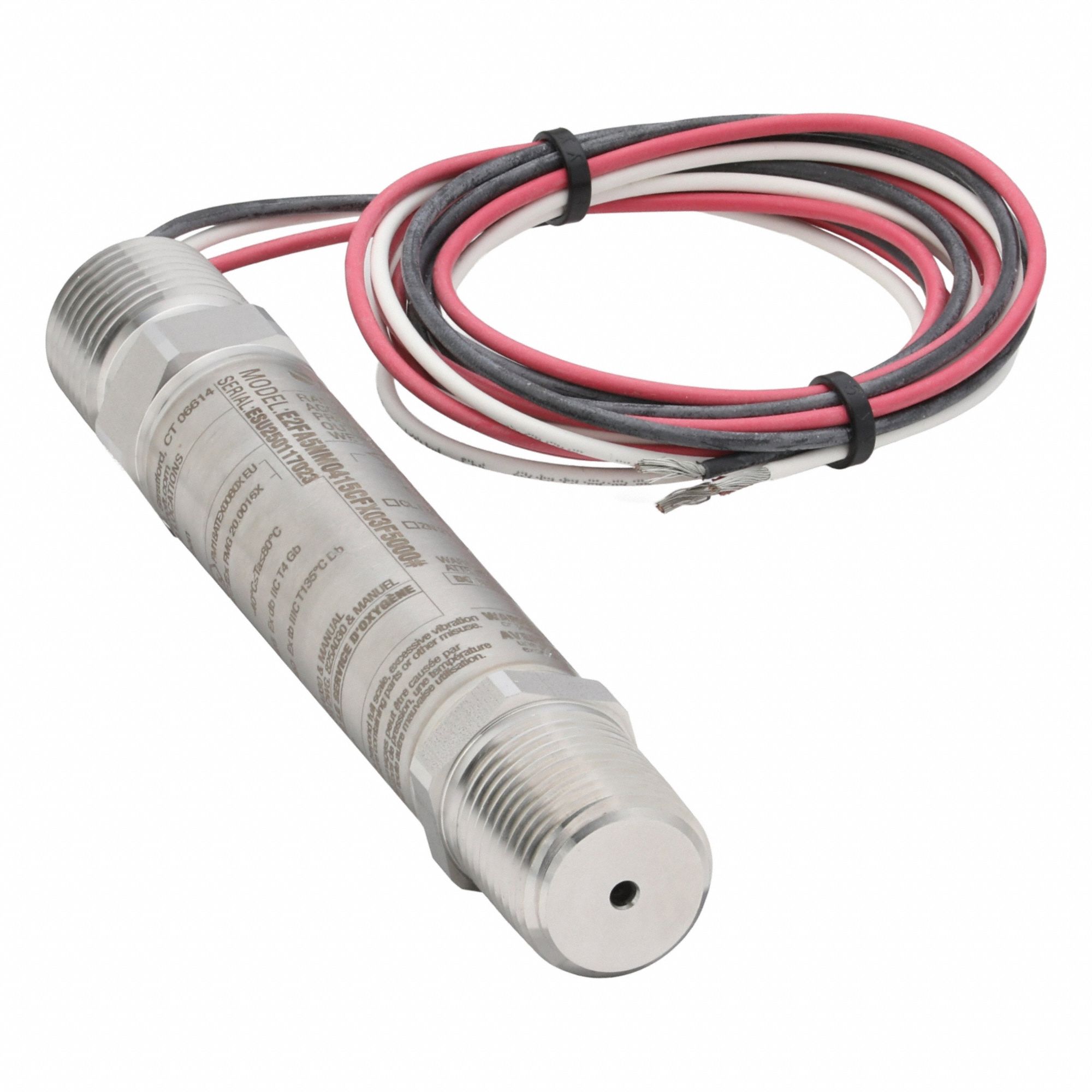

The ASHCROFT E2F Series Pressure Transmitter (MPN E2FA5NM0415CFX03F5000#) is an explosion-proof gauge pressure transmitter with a 5,000 psi range, featuring a 1 to 5V DC output and ±0.50% accuracy. Housed in stainless steel with an IP66 and NEMA 4X rating, it includes a 1/2 in NPT conduit connection with cable and offers overpressure protection of 1.5x range and burst pressure of 5x. This vibration-resistant unit is rated Class III, Div 1 and is not specified as intrinsically safe.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Brand | ASHCROFT |
| Output | 1 to 5V DC |
| Series | E2F |
| Accuracy | ±0.50% |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Overpressure | 1.5x Range |
| Safety Rating | Class III, Div 1 |
| Burst Pressure | 5x |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Not Specified Intrinsically Safe |
| Electrical Connection | 1/2 in NPT Conduit with Cable |
| Pressure Type Measured | Gauge |
| Process Connection Type | NPT |
| Manufacturer Part Number | E2FA5NM0415CFX03F5000# |
| NIST Traceable Certificate | No NIST-Traceable Calibration Certificate Included |
| Resistance Properties - TS Only | Vibration Resistant |
