Ashcroft 3G-OTH-175515 — Spesifikasi Teknis

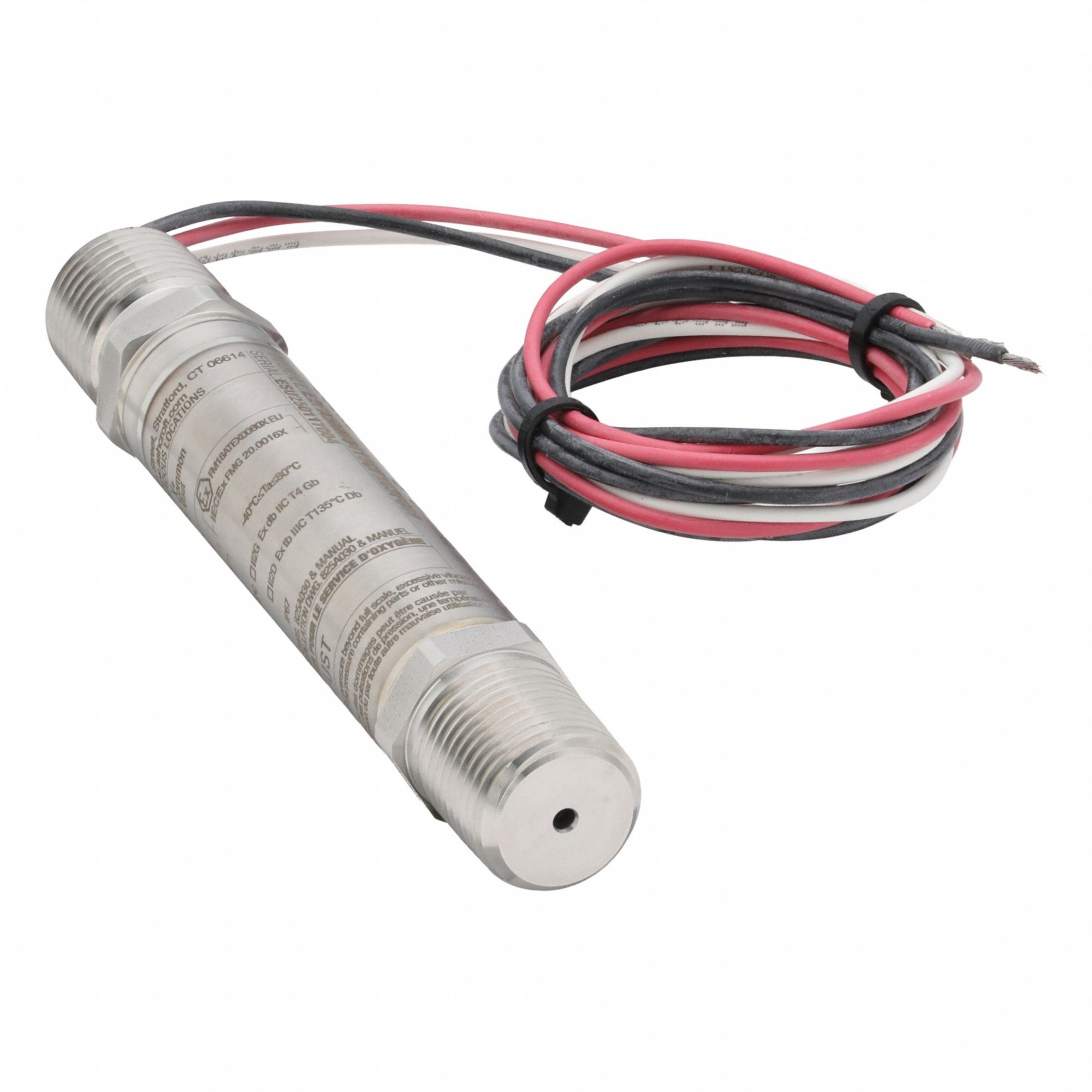

The ASHCROFT E2F Series Pressure Transmitter (60 psi) is an explosion-proof gauge pressure transmitter with a 1 to 5V DC output, ±0.50% accuracy, and a stainless steel housing rated IP66 and NEMA 4X. It features a 1/2 in NPT conduit connection with cable, NPT process connection, overpressure of 2.4x, burst pressure of 8x, and is shock resistant with a Class II, Div 1, Group E, F, G safety rating.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Brand | ASHCROFT |
| Output | 1 to 5V DC |
| Series | E2F |
| Accuracy | ±0.50% |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Overpressure | 2.4x |
| Safety Rating | Class II, Div 1, Group E, F, G |
| Burst Pressure | 8x |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Not Specified Intrinsically Safe |
| Electrical Connection | 1/2 in NPT Conduit with Cable |
| Pressure Type Measured | Gauge |
| Process Connection Type | NPT |
| Manufacturer Part Number | E2FA5NM0415CFX03F60# |
| NIST Traceable Certificate | No NIST-Traceable Calibration Certificate Included |
| Resistance Properties - TS Only | Shock Resistant |
