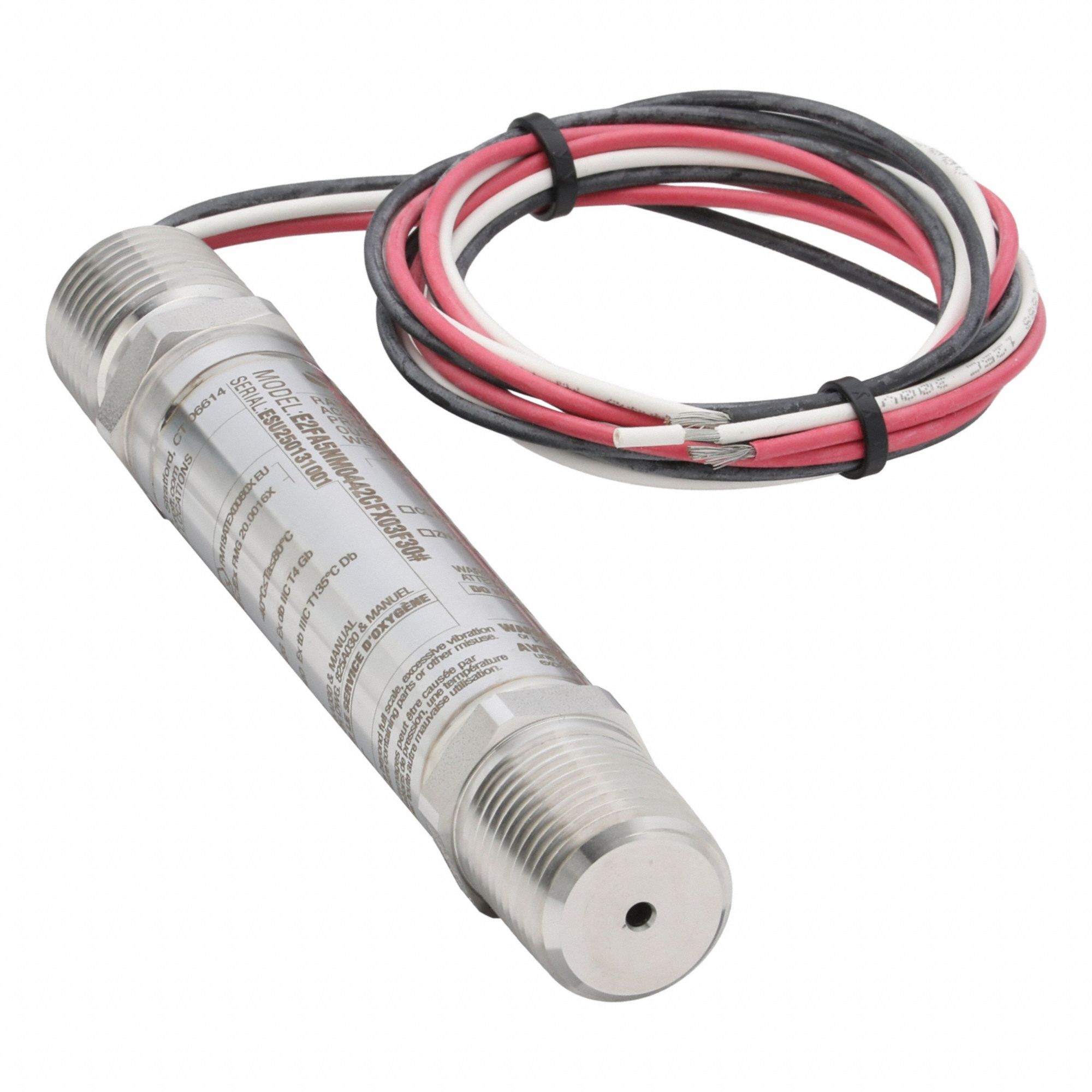

Ashcroft 3G-OTH-175434 — Spesifikasi Teknis
The ASHCROFT E2F Series Pressure Transmitter (30 psi) is an explosion-proof gauge pressure transmitter with a 4 to 20mA output, ±0.50% accuracy, and a stainless steel housing. It features a 1/2 in NPT conduit with cable electrical connection, NPT process connection, and is rated IP66 and NEMA 4X with Class I, Div 1, Group A, B, C, D safety rating. This vibration-resistant transmitter is not specified as intrinsically safe and does not include a NIST-traceable calibration certificate.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Brand | ASHCROFT |
| Output | 4 to 20mA |
| Series | E2F |
| Accuracy | ±0.50% |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Safety Rating | Class I, Div 1, Group A, B, C, D |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Not Specified Intrinsically Safe |
| Electrical Connection | 1/2 in NPT Conduit with Cable |
| Pressure Type Measured | Gauge |
| Process Connection Type | NPT |
| Manufacturer Part Number | E2FA5NM0442CFX03F30# |
| NIST Traceable Certificate | No NIST-Traceable Calibration Certificate Included |
| Resistance Properties - TS Only | Vibration Resistant |
