Barnes & Jones 3G-OTH-71380 — Spesifikasi Teknis

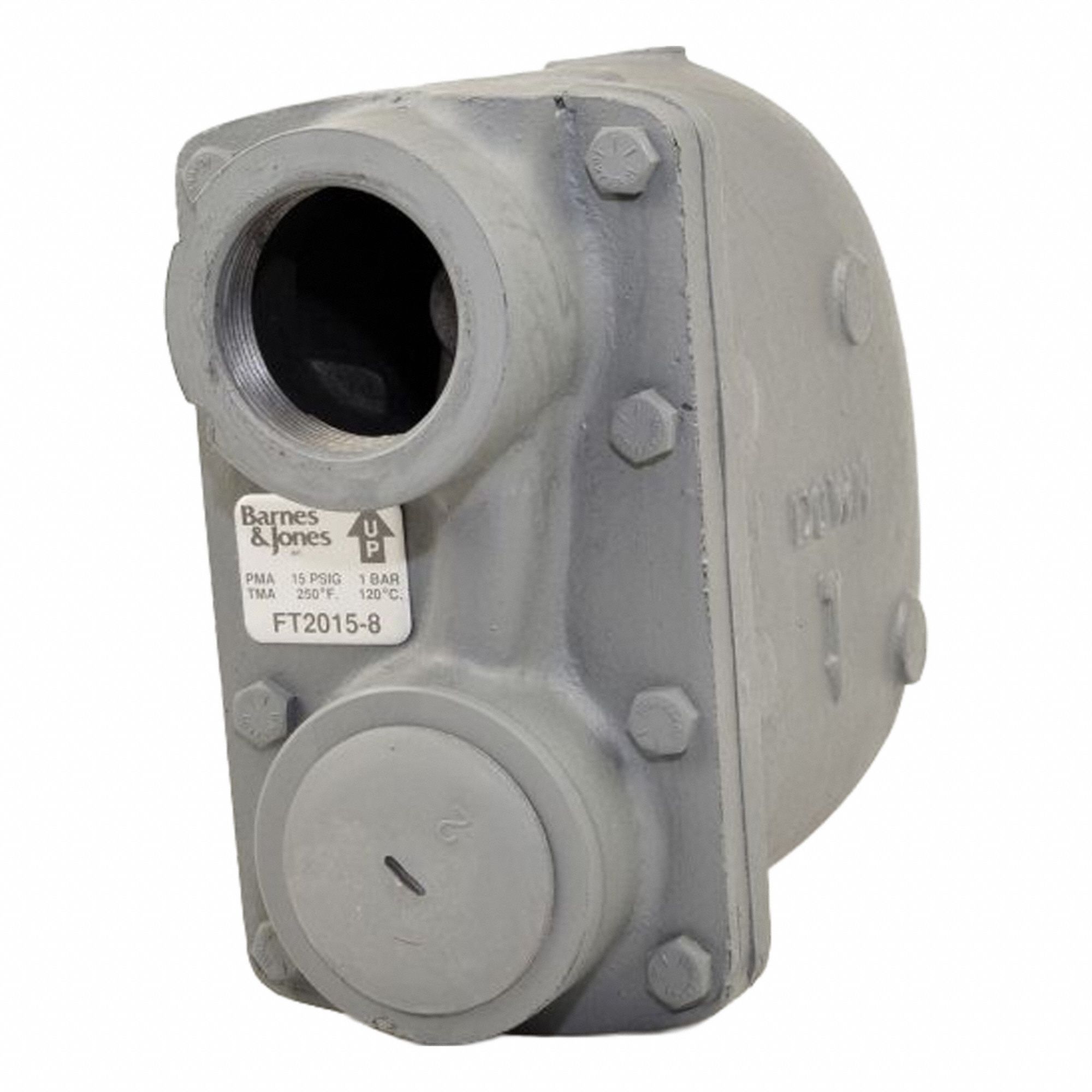

The BARNES & JONES Steam Trap is a Cast Iron H-Pattern Float & Thermostatic Steam Trap, model FT2015-8 from Manufacturer Series A. It features a 2 in FNPT connection, a maximum capacity of 11,445 lb/hr, and a maximum operating pressure of 15 psig with a maximum temperature of 345°F. The float is constructed of Stainless Steel, and the trap is designed for Horizontal installation orientation.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| FNPT | 2 in |
| Max. | 345°F |
| Type | 11,445 lb/hr, 15 psig Max., H Pattern |
| Brand | BARNES & JONES |
| Float Material | Stainless Steel |
| Manufacturer Series | A |
| Installation Orientation | Horizontal |
| Manufacturer Part Number | FT2015-8 |
