Barnes & Jones 3G-OTH-71449 — Spesifikasi Teknis

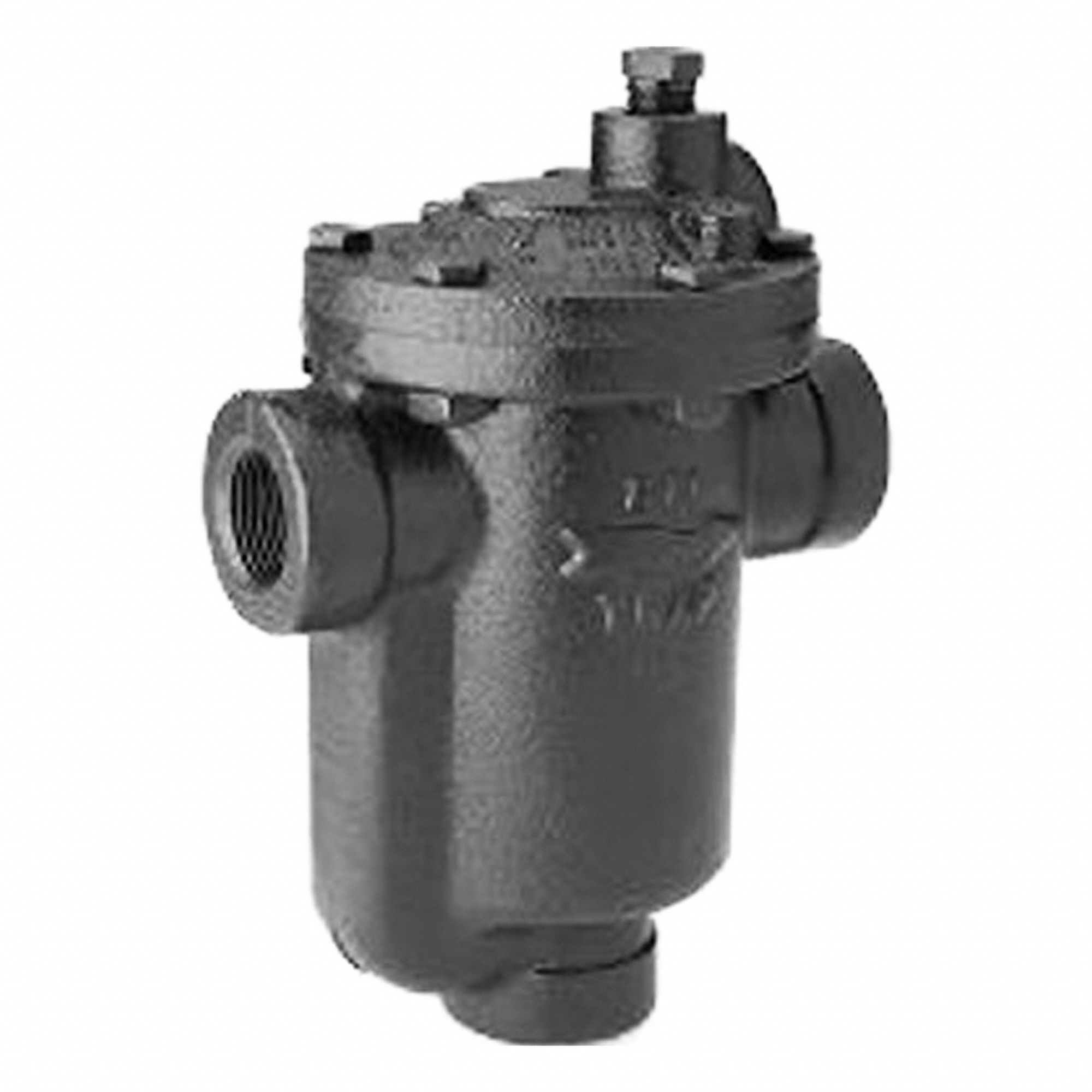

The BARNES & JONES 8000-3-125 is a standard inverted-bucket steam trap made of cast iron, with a 3/4 in FNPT connection. It is rated for a maximum capacity of 685 lb/hr, a maximum pressure of 125 psig, and a maximum temperature of 450°F. This in-line configuration unit is designed for horizontal installation and does not include a strainer.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| FNPT | 3/4 in |
| Max. | 450°F |
| Type | 685 lb/hr, 125 psig Max., Strainer Not Included |
| Brand | BARNES & JONES |
| Configuration | In-line |
| Installation Orientation | Horizontal |
| Manufacturer Part Number | 8000-3-125 |
