Barnes & Jones 3G-OTH-71469 — Spesifikasi Teknis

Name: Barnes & Jones 3G-OTH-71469 Steam Trap: Cast Iron, 3/4 in FNPT, 955 lb/hr, 125 psig Max., 450°F Max., Strainer Not Included (MPN 8011-3-125). Key specifications — Installation Orientation: Horizontal; Brand: BARNES & JONES; Configuration: In-line.
Brand: Barnes & Jones

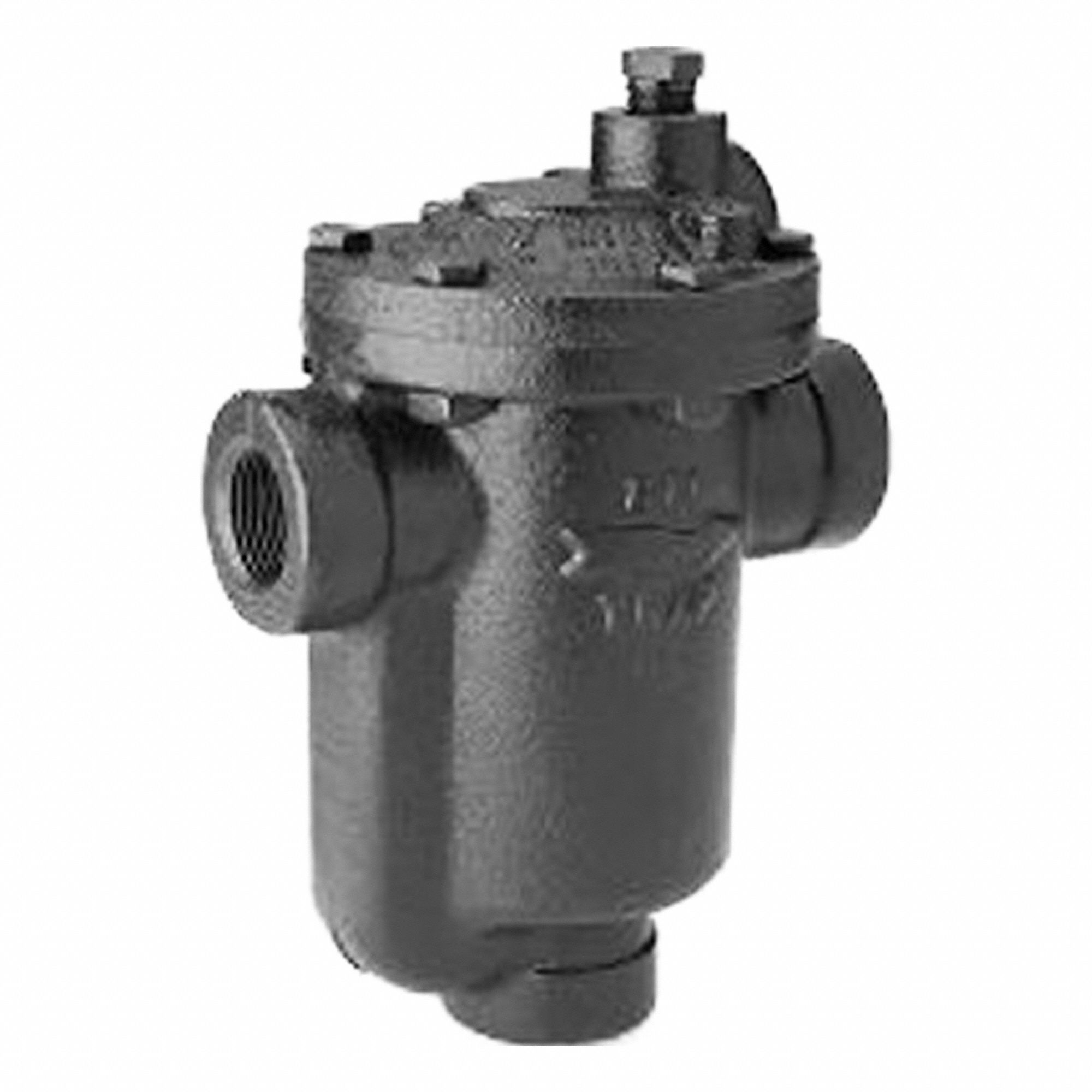

The BARNES & JONES 8011-3-125 is a cast iron standard inverted-bucket steam trap with a 3/4 in FNPT connection, rated for 955 lb/hr capacity, 125 psig maximum pressure, and 450°F maximum temperature. It features an in-line configuration for horizontal installation and does not include a strainer.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
FNPT	3/4 in
Max.	450°F
Type	955 lb/hr, 125 psig Max., Strainer Not Included
Brand	BARNES & JONES
Configuration	In-line
Installation Orientation	Horizontal
Manufacturer Part Number	8011-3-125
