Belimo 3G-OTH-67110 — Spesifikasi Teknis

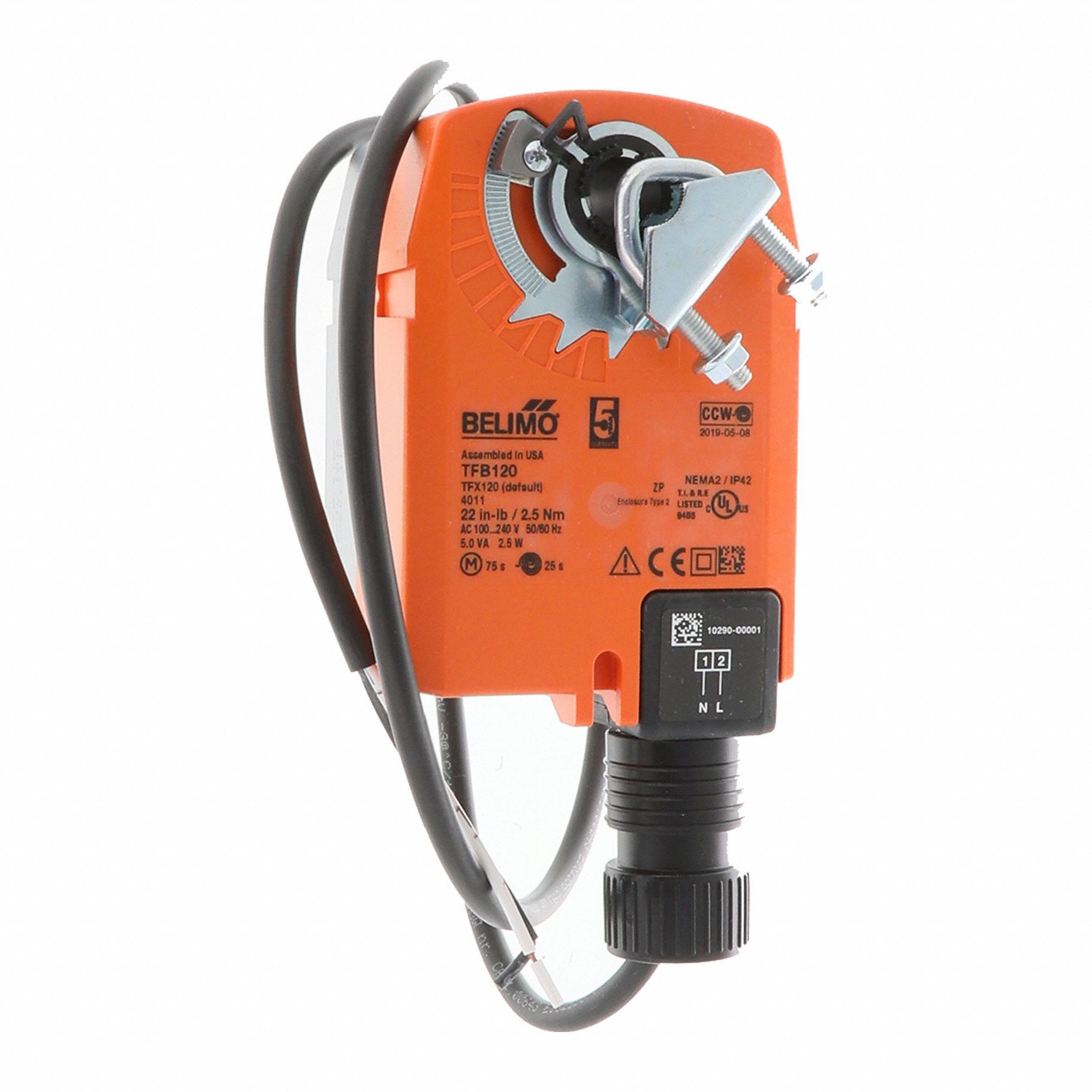

Name: Belimo 3G-OTH-67110 Damper Actuator: Dampers, On/Off, Spring Return, 22 in-lb, 100 to 240V AC, NEMA 2 / IP54 (MPN TFB120). Key specifications — Manufacturer Part Number: TFB120; Shaft Type: 1/4" to 1/2"; Shaft Rotation: CW/CCW; Stroke Degree: 0 to 95°; Plenum Rating: Plenum Rated; Power Rating: 5VA; Input Voltage: 100 to 240V AC; Brand: BELIMO.
Brand: Belimo

The BELIMO TFB120 is a fail-safe damper actuator with spring return, operating in on/off mode. It accepts 100 to 240V AC input, delivers 5VA power, and features a 0 to 95° stroke with CW/CCW shaft rotation for 1/4" to 1/2" shafts. This plenum-rated actuator includes one auxiliary switch and is hardwired, but is not compatible with building automation systems.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
AC	100 to 240V
Type	On/Off, Spring Return, 22 in-lb, NEMA 2 / IP54
Brand	BELIMO
Shaft Type	1/4" to 1/2"
Power Rating	5VA
Input Voltage	100 to 240V AC
Output Signal	1 Auxiliary Switch
Plenum Rating	Plenum Rated
Stroke Degree	0 to 95°
Shaft Rotation	CW/CCW
Manufacturer Part Number	TFB120
Auxiliary Switch Included	Yes
Electrical Connection Type	Hardwired
For Use With Building Automation Systems	Not Building Automation System Compatible
