Bell & Gossett 3G-OTH-69970 — Spesifikasi Teknis

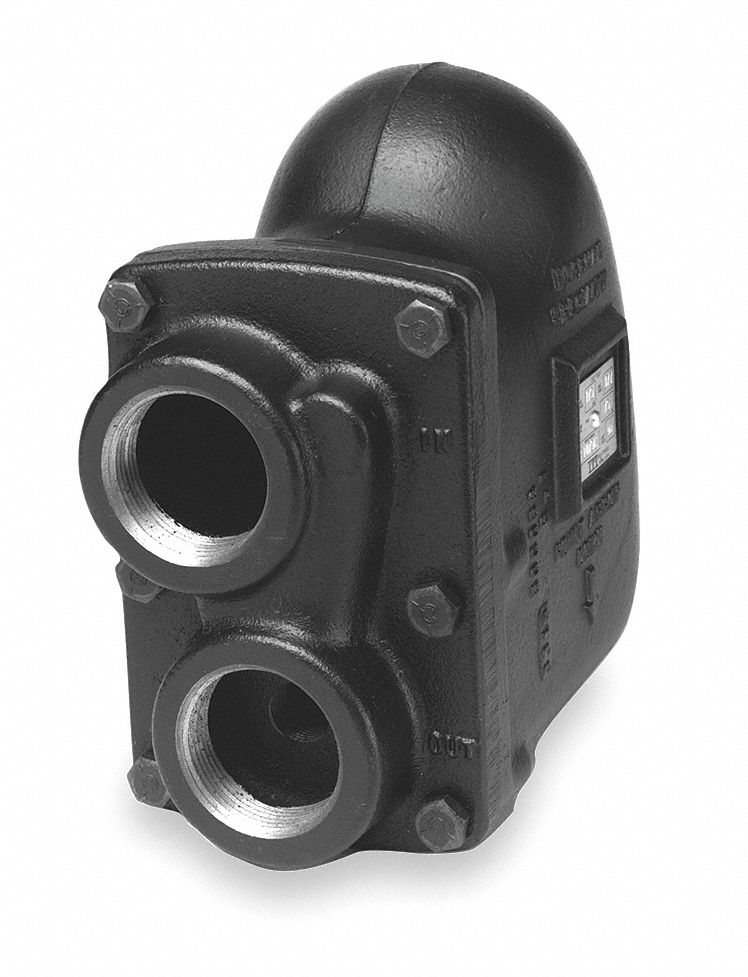

The BELL & GOSSETT Steam Trap is a Cast Iron C-Pattern Float & Thermostatic Steam Trap designed for horizontal installation. It features a cast iron float and is rated for 5,900 lb/hr capacity with a maximum pressure of 75 psi and a maximum temperature of 377°F, connecting via 1 1/2 in FNPT. This model, part number FT075C-6, is from the Manufacturer Series C.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| FNPT | 1 1/2 in |
| Max. | 75 psi |
| Type | 5,900 lb/hr, C Pattern |
| Brand | BELL & GOSSETT |
| Float Material | Cast Iron |
| Manufacturer Series | C |
| Installation Orientation | Horizontal |
| Manufacturer Part Number | FT075C-6 |
