Bell & Gossett 3G-OTH-70190 — Spesifikasi Teknis

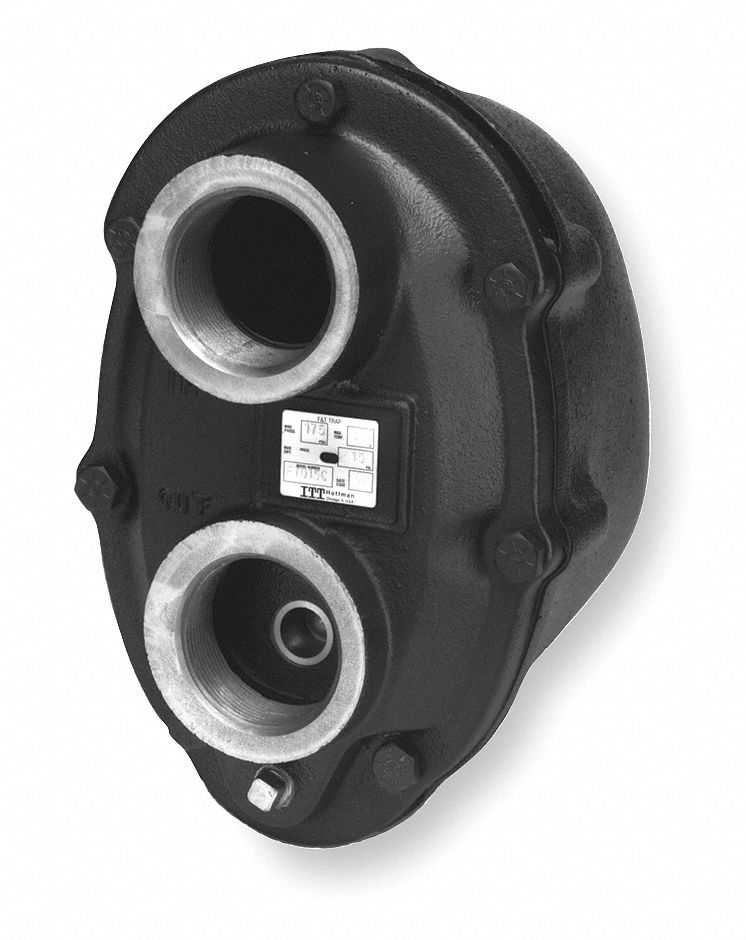

The BELL & GOSSETT Steam Trap is a Cast Iron C-Pattern Float & Thermostatic Steam Trap, model FT015C-10. It features a cast iron float, a 2 1/2 in FNPT connection, a capacity of 60,000 lb/hr, a maximum pressure of 15 psi, and a maximum temperature of 377°F. This horizontal-installation unit is designed for condensate removal in steam systems.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| FNPT | 2 1/2 in |
| Max. | 15 psi |
| Type | 60,000 lb/hr, C Pattern |
| Brand | BELL & GOSSETT |
| Float Material | Cast Iron |
| Manufacturer Series | C |
| Installation Orientation | Horizontal |
| Manufacturer Part Number | FT015C-10 |
