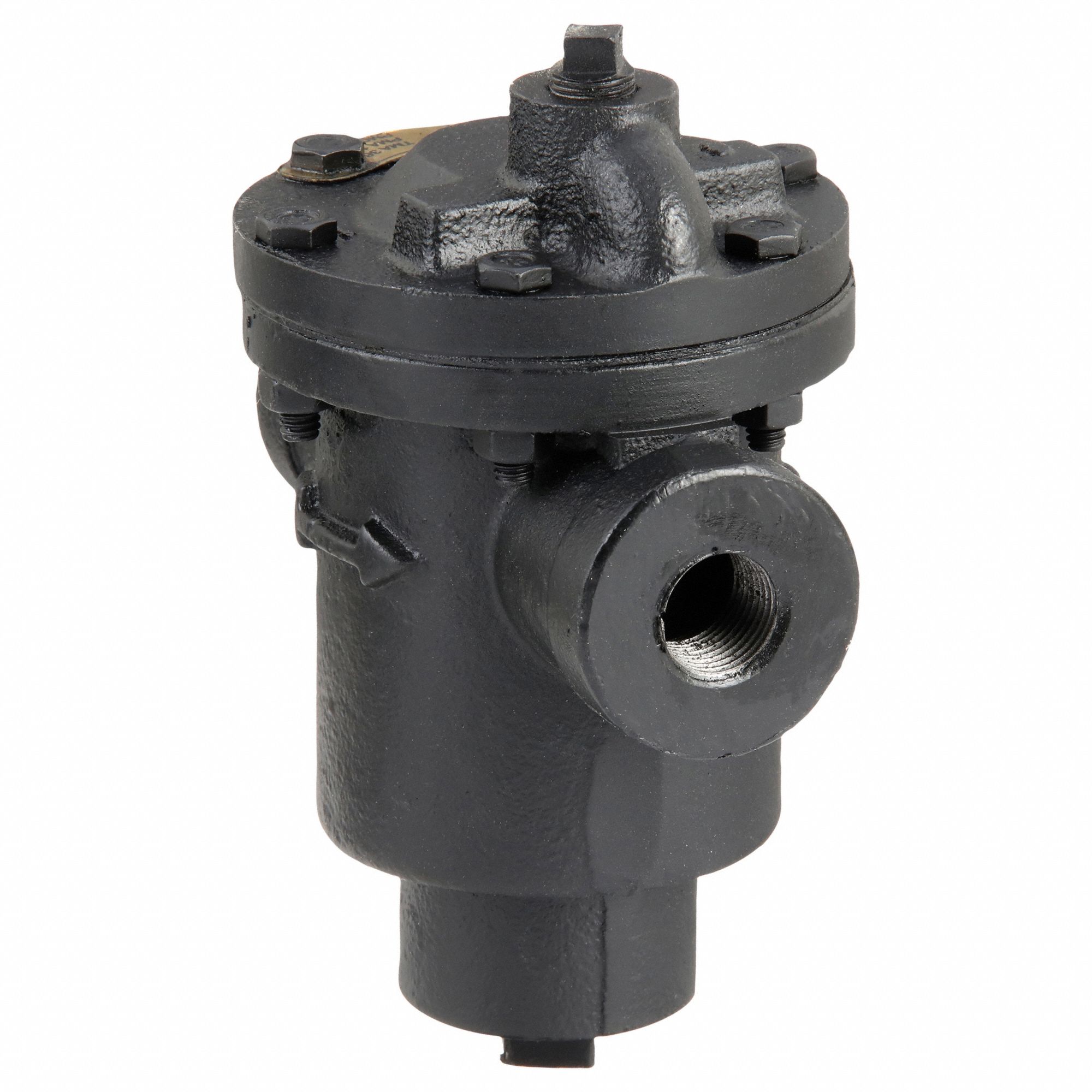

Bell & Gossett 3G-OTH-71374 — Spesifikasi Teknis

Name: Bell & Gossett 3G-OTH-71374 Steam Trap: Cast Iron, 3/4 in FNPT, 570 lb/hr, 150 psi Max., 450°F Max., Strainer Not Included (MPN B0150A-3). Key specifications — Installation Orientation: Horizontal; Brand: BELL & GOSSETT; Configuration: In-line.
Brand: Bell & Gossett

The BELL & GOSSETT B0150A-3 is a cast-iron standard inverted-bucket steam trap with a 3/4-inch FNPT connection, rated for 570 lb/hr capacity, 150 psi maximum pressure, and 450°F maximum temperature. It features an in-line configuration for horizontal installation and does not include a strainer.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
FNPT	3/4 in
Max.	150 psi
Type	570 lb/hr, Strainer Not Included
Brand	BELL & GOSSETT
Configuration	In-line
Installation Orientation	Horizontal
Manufacturer Part Number	B0150A-3
