Bob 3G-OTH-438740 — Spesifikasi Teknis

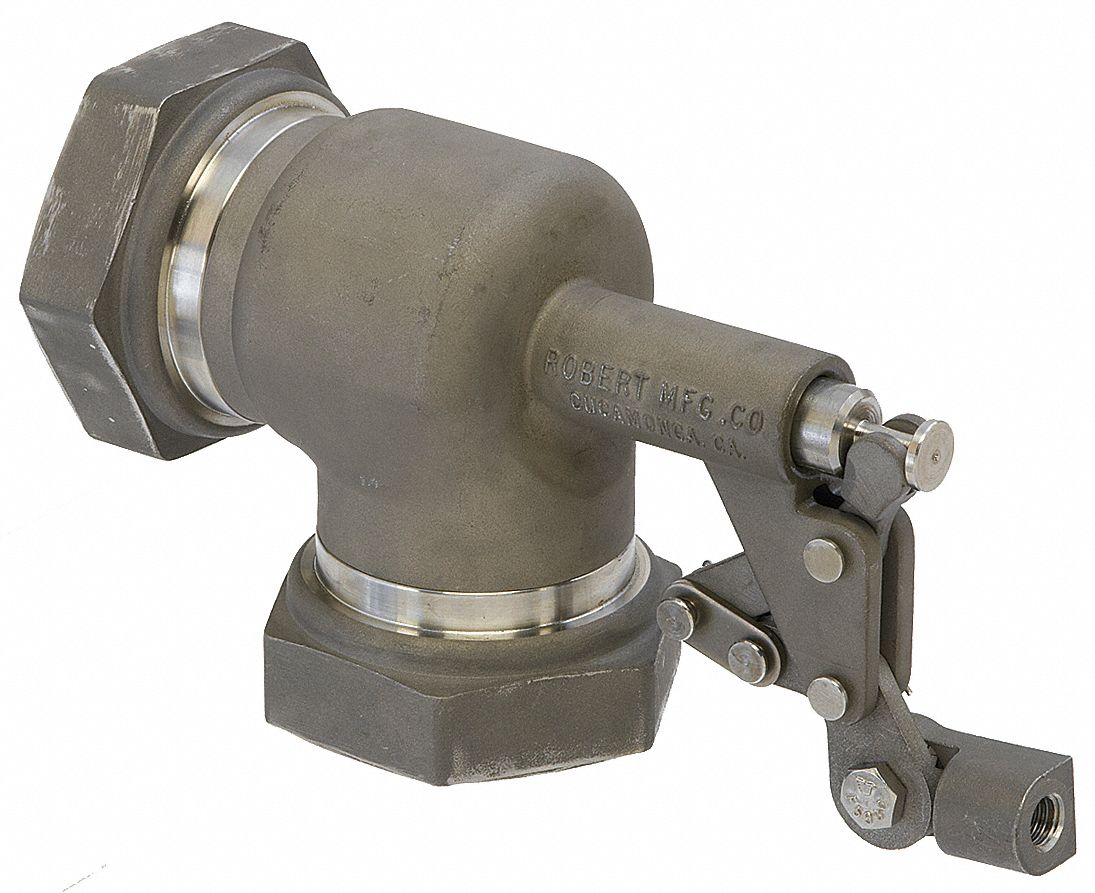

The BOB R1380 Series Float Valve Body (SKU 23MJ83, MPN R1381-1-1/4) is an angle-style general service float valve body for water media, designed for horizontal piping. It features adjustable arm capability, female IPS connections on both sides, and a 3/8"-16 rod thread. The valve is rated for a flow rate of 180 gpm @ 85 psi and is supplied without a float and rod.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Angle Valve Body, Float Valve Body, Horizontal Piping, FIP, Female |
| Brand | BOB |
| Mounting | Horizontal Piping |
| Flow Rate | 180 gpm @ 85 psi |
| For Media | Water |
| Rod Thread | 3/8"-16 |
| Valve Series | R1380 |
| Float Valve Type | Float Valve Body |
| Valve Body Style | Angle |
| Arm Adjustability | Adjustable |
| Inlet Connection Type | FIP |
| Includes Float And Rod | No Float and Rod |
| Outlet Connection Type | FIP |
| Connection Type - Side 1 | IPS |
| Connection Type - Side 2 | IPS |
| Manufacturer Part Number | R1381-1-1/4 |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
