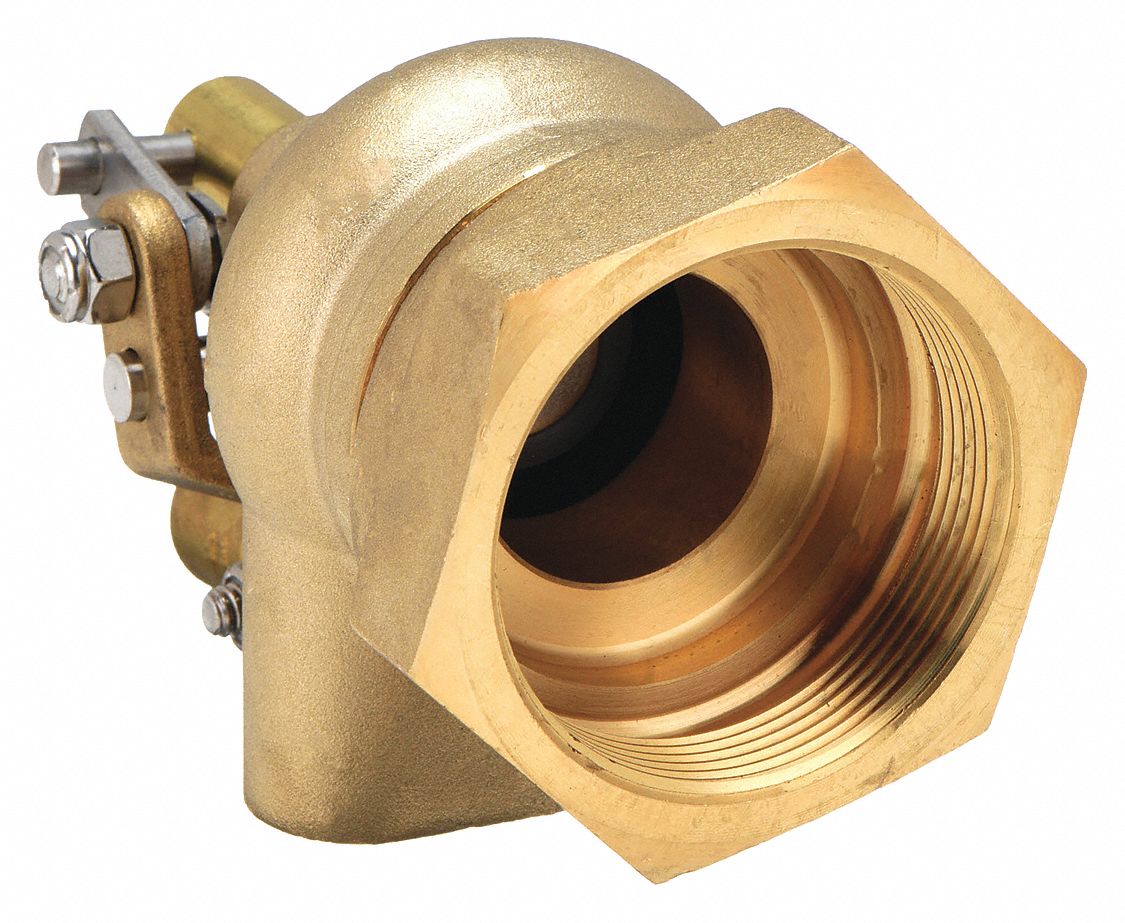

Bob 3G-OTH-438782 — Spesifikasi Teknis
The BOB Float Valve is a general service float valve body from the R605T High Turbo series, designed for water media in horizontal piping. This angle-style valve body features a 1-1/2" FNPT inlet connection, an adjustable arm, and a 3/8"-16 rod thread, delivering a flow rate of 112 gpm at 35 psi. It is supplied without a float and rod.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Angle Valve Body, Float Valve Body, Horizontal Piping, Brass, FNPT |
| Brand | BOB |
| Mounting | Horizontal Piping |
| Flow Rate | 112 gpm @ 35 psi |
| For Media | Water |
| Rod Thread | 3/8"-16 |
| Valve Series | R605T High Turbo |
| Float Valve Type | Float Valve Body |
| Valve Body Style | Angle |
| Arm Adjustability | Adjustable |
| Inlet Connection Type | FNPT |
| Includes Float And Rod | No Float and Rod |
| Connection Type - Side 1 | NPT |
| Manufacturer Part Number | R605T-1-1/2-LF |
| Connection Gender - Side 1 | Female |
