Bob 3G-OTH-450081 — Spesifikasi Teknis

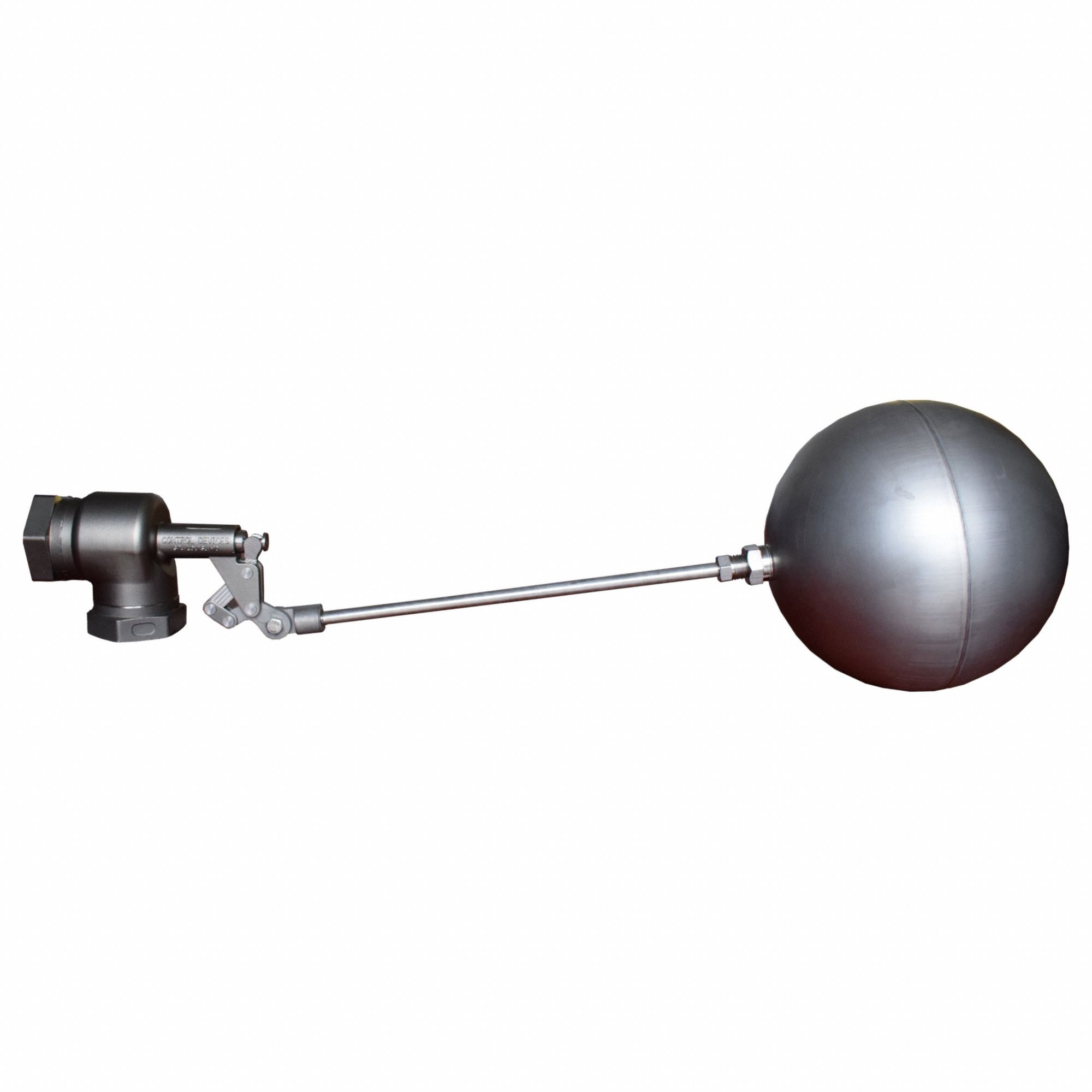

The BOB Float Valve Assembly (SKU 803HJ0, MPN R1380-2-5) is a general service float valve assembly designed for water media. It features an angle valve body, horizontal piping mounting, and an adjustable arm, with a flow rate of 152 gpm @ 65 psi. The assembly includes a rod and float, with a 3/8"-16 rod thread, and connects via FNPT inlet and FIP outlet (NPT and IPS connection types, both female).
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Angle Valve Body, Cylindrical, Horizontal Piping, FNPT |
| Brand | BOB |
| Mounting | Horizontal Piping |
| Flow Rate | 152 gpm @ 65 psi |
| For Media | Water |
| Rod Thread | 3/8"-16 |
| Valve Series | R1380 |
| Float Valve Type | Float Valve Assembly (Rod & Float Included) |
| Valve Body Style | Angle |
| Arm Adjustability | Adjustable |
| Inlet Connection Type | FNPT |
| Includes Float And Rod | Float and Rod Included |
| Outlet Connection Type | FIP |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | IPS |
| Manufacturer Part Number | R1380-2-5 |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
