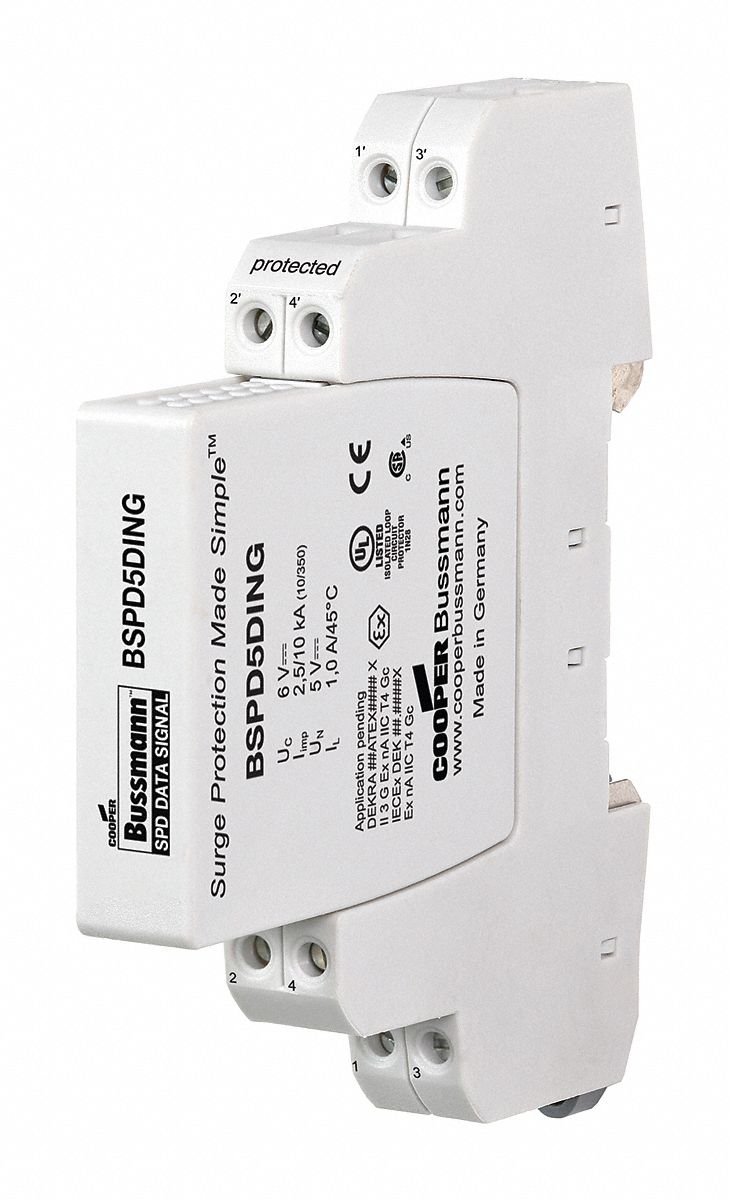

Bussmann 3G-OTH-23512 — Spesifikasi Teknis
The BUSSMANN Universal Surge Protection Device is a DIN Rail internal-mount data and signal SPD for single-phase applications. It operates at 5V DC with a max. continuing operating voltage of 6 V DC, protecting L-L modes with a voltage protection rating of 550V (L-G). This 4-wire, 4-pole unit features a polyamide enclosure and no filtering.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| DC | 5V |
| Type | L-G/L-L |
| Brand | BUSSMANN |
| Poles | 4 |
| Wires | 4 |
| Voltage | 5V DC |
| Filtering | No |
| Mounting Style | DIN-Rail |
| Number Of Wires | 4 Wires |
| Enclosure Material | Polyamide |
| Modes Of Protection | L-L |
| Manufacturer Part Number | BSPD5DINLHF |
| Voltage Protection Rating | 550V (L-G) |
| Max. Continuing Operating Voltage | 6 V DC |
