Canarm 3G-OTH-80626 — Spesifikasi Teknis

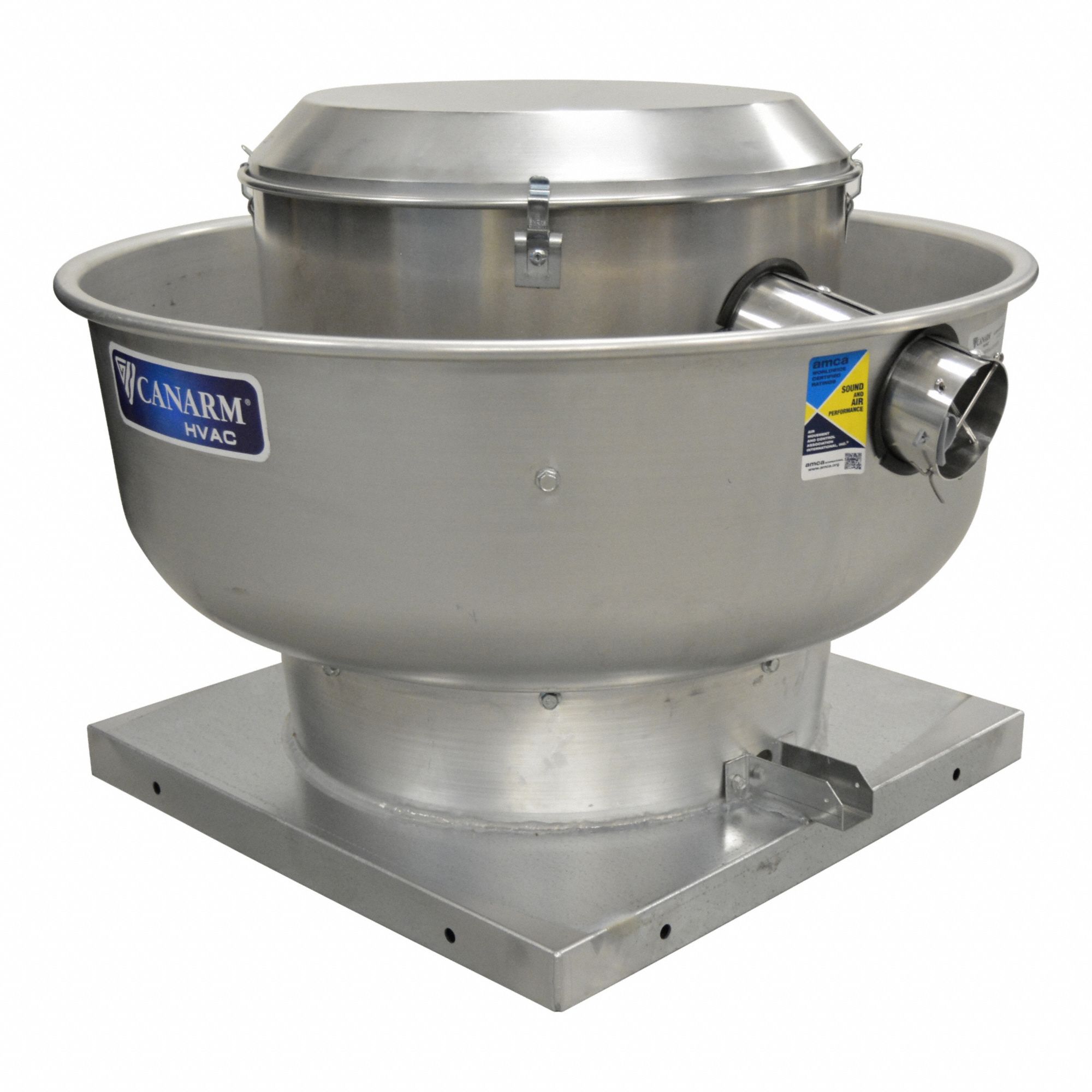

The CANARM Upblast Exhauster: Direct Drive (SKU 801MU6, MPN ALX135-UD050EC) is a kitchen air direct-drive fan designed for roof and wall mounting. It features an electronically commutated motor with an open dripproof enclosure, variable speed, and a high-efficiency motor. The unit delivers exhaust airflow up to 1,999 cfm at 0.000 in SP and 0.500 in SP, operates on 115/208-230V AC, and is suitable for high-static-pressure applications.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Includes Drive Pack, 1,850 cfm, ODP, 1/2 hp, 1-ph |
| Brand | CANARM |
| Wheel | 13 1/2 in |
| Assembly | Assembled |
| Base Shape | Square |
| Motor Type | Electronically Commutated |
| Drive Package | Includes Drive Package |
| Motor Enclosure | Open Dripproof |
| Motor Efficiency | High-Efficiency Motor |
| Number Of Speeds | Variable |
| Mounting Location | Roof and Wall |
| Nameplate Voltage | 115/208-230V AC |
| High-Efficiency Motor | Yes |
| Includes Drive Package | Yes |
| Manufacturer Part Number | ALX135-UD050EC |
| Exhaust Airflow @ 0.000 In SP - Range | 0 to 1,999 cfm |
| Exhaust Airflow @ 0.500 In SP - Range | 0 to 1,999 cfm |
| For High-Static Pressure Applications | Yes |
