Canarm 3G-OTH-80313 — Spesifikasi Teknis

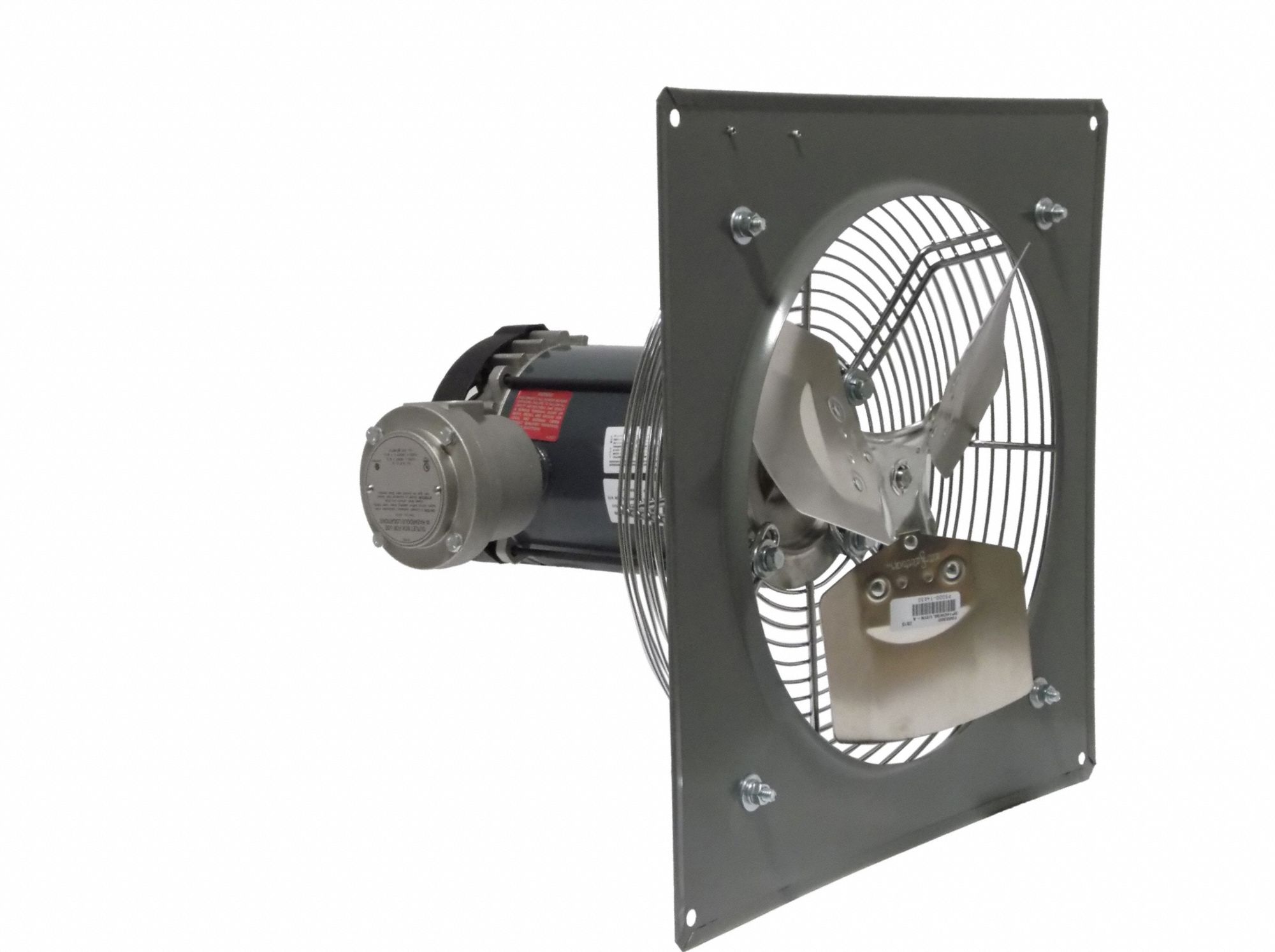

The CANARM P12-4 is a standard direct-drive panel exhaust fan with a 12-inch galvanized steel blade, 1/3 hp motor, and 1,670 cfm airflow. It operates on 115V AC single-phase power with a totally enclosed air-over motor and powder-coated steel frame. This assembled unit includes intake guards and is rated Class 1 Div 1 for hazardous locations.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| AC | 115V |
| Type | 1/3 hp, 1,670 cfm, 1 ph, Totally Enclosed |
| Blade | 12 in |
| Brand | CANARM |
| Assembled | Assembled |
| Guard Type | Intake |
| Motor Type | Single Phase |
| Frame Finish | Powder Coated |
| Blade Material | Galvanized Steel |
| Frame Material | Steel |
| Motor Enclosure | Totally Enclosed Air Over |
| Enclosure Design | Totally Enclosed Motor |
| Number Of Speeds | 1 |
| Nameplate Voltage | 115V AC |
| Guard Type Subheads | With Intake Guards |
| Hazardous Location Class | Class 1 Div 1 |
| Manufacturer Part Number | P12-4 |
