Carrier 3G-OTH-68347 — Spesifikasi Teknis

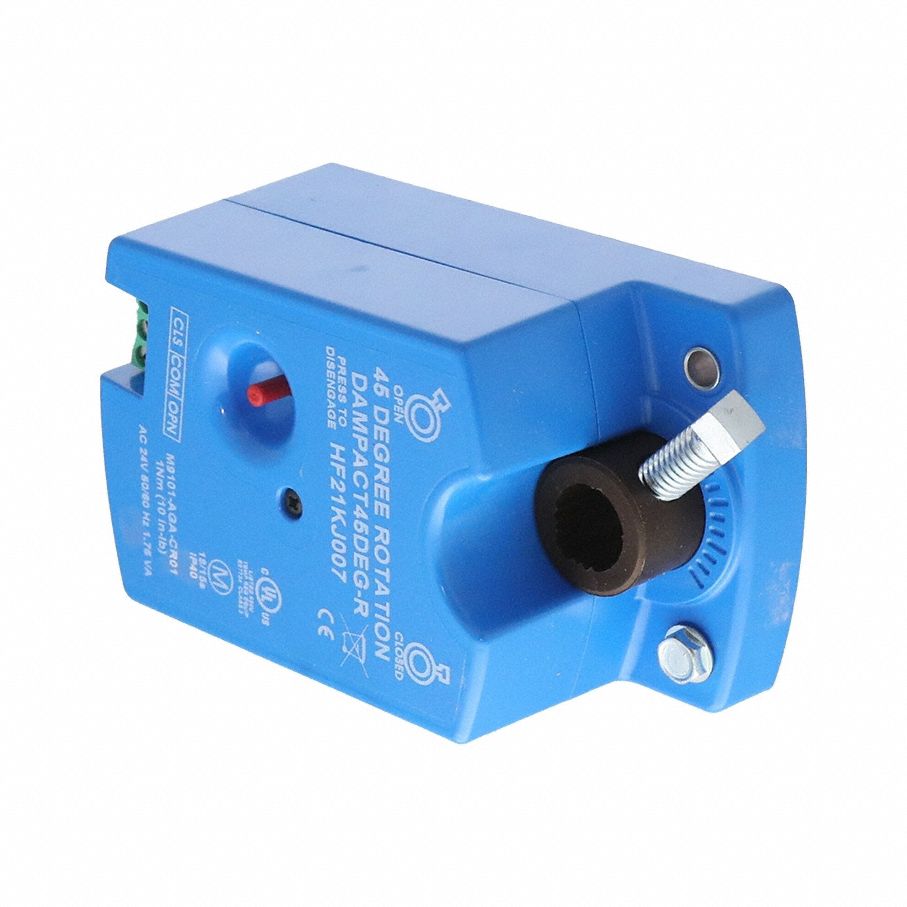

The CARRIER Damper Actuator (SKU 877HY2, MPN HF21KJ007) is a fail-safe actuator with spring return, designed for damper applications. It operates on 24V input voltage with a 24V AC output signal, features a 45° stroke degree and CCW shaft rotation, and uses a self-centering clamping shaft type with hardwired electrical connection.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | On/Off, Spring Return, 10 lb-in, 24V, Hardwired, NEMA 1 / IP40 |
| Brand | CARRIER |
| Shaft Type | Self-Centering Clamping |
| Input Voltage | 24V |
| Output Signal | 24V AC |
| Stroke Degree | 45° |
| Shaft Rotation | CCW |
| Manufacturer Part Number | HF21KJ007 |
| Auxiliary Switch Included | No |
| Electrical Connection Type | Hardwired |
