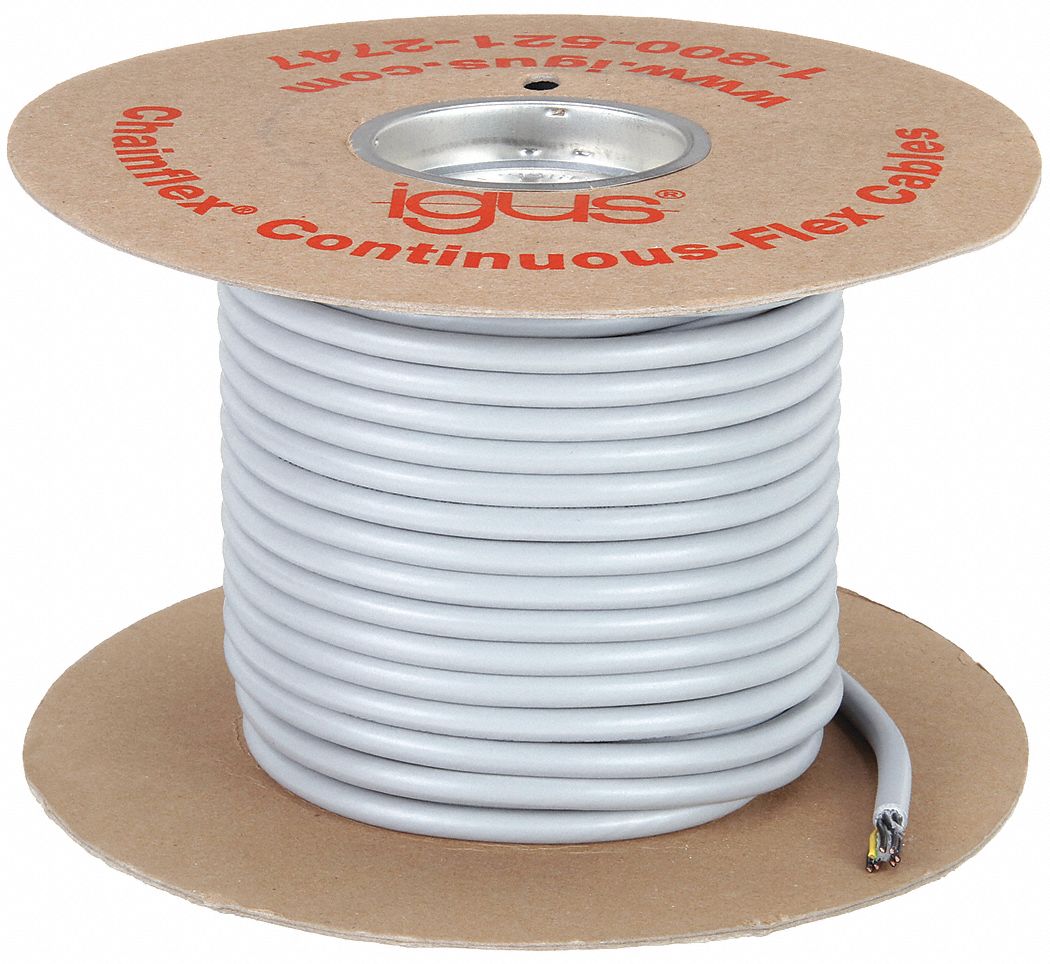

Chainflex 3G-OTH-50035 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-50035 CHAINFLEX Control Cable: 14 AWG, 7 Conductors, Order by the Foot, PUR Jacket, 1,000 V (MPN CF77-UL-25-07-1). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Coolant Resistant; Standards: cRUus.
Brand: Chainflex

The CHAINFLEX Control Cable: 14 AWG is a continuous flexing control cable from the Chainflex series, model CF77-UL. It features 7 conductors of 14 AWG copper wire with a single conductor configuration, includes a ground, and is rated for 1,000 V. The cable has a PUR jacket, is coolant resistant, and meets cRUus standards, with minimum bend radius factors of 4 x OD for fixed, 5 x OD for flexible, and 6.8 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PUR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	cRUus
Conductors	7
Cable Series	CF77-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Coolant Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF77-UL-25-07-1
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
