Chainflex 3G-OTH-53855 — Spesifikasi Teknis

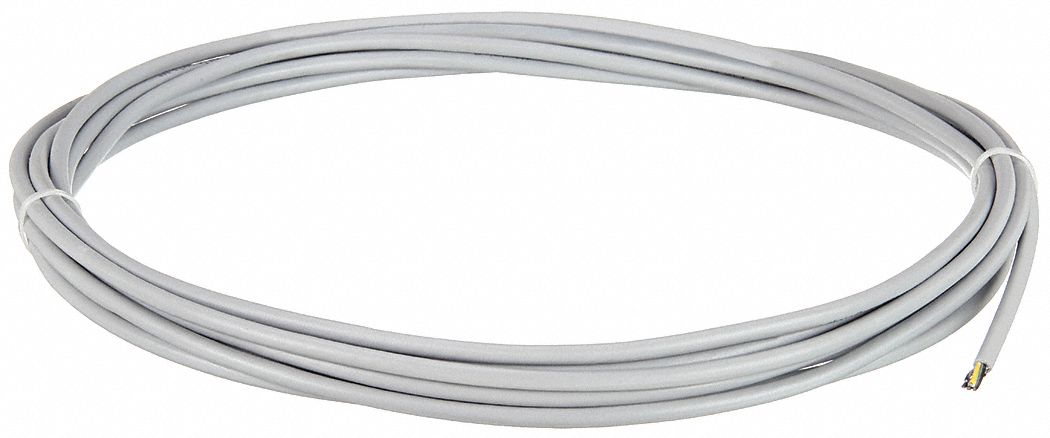

The CHAINFLEX Control Cable (SKU 24A996, MPN CF77-UL-07-05-25) is a continuous flexing control cable from the Chainflex CF77-UL series. It features 18 AWG, 5 conductors, a PUR jacket, and a 1,000 V rating, with copper conductors and a single conductor configuration. This cable includes a ground, is coolant resistant, and meets CE standards, with minimum bend radius factors of 4 x OD for fixed, 5 x OD for flexible, and 6.8 x OD for e-chain applications.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Brand | CHAINFLEX |
| Series | Chainflex |
| Standards | CE |
| Cable Series | CF77-UL |
| Product Type | Control Cable |
| Includes Ground | Yes |
| Conductor Material | Copper |
| Conductor Color Code | Black with White Numbers |
| Resistance Properties | Coolant Resistant |
| Conductor Configuration | Single |
| Manufacturer Part Number | CF77-UL-07-05-25 |
| Minimum Bend Radius Factor - Fixed | 4 x OD |
| Minimum Bend Radius Factor - E-Chain | 6.8 x OD |
| Minimum Bend Radius Factor - Flexible | 5 x OD |
