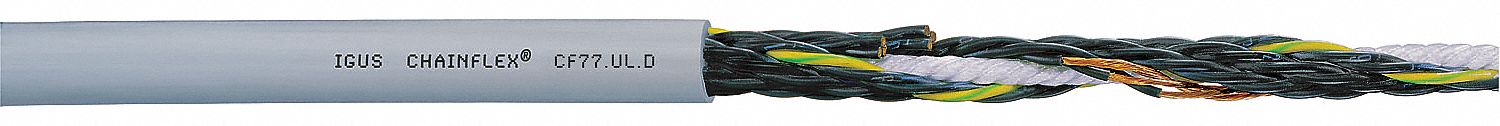

Chainflex 3G-OTH-49576 — Spesifikasi Teknis
The CHAINFLEX Control Cable (SKU 24C006, MPN CF77-UL-15-18-25) is a continuous flexing control cable from the Chainflex CF77-UL series. It features 16 AWG, 18 conductors, a PUR jacket, and a 1,000 V rating, with copper single conductors, black with white numbers color code, and includes a ground. The cable is flame retardant, CE certified, and has minimum bend radius factors of 4 x OD (fixed), 5 x OD (flexible), and 6.8 x OD (e-chain).
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Brand | CHAINFLEX |
| Series | Chainflex |
| Standards | CE |
| Cable Series | CF77-UL |
| Product Type | Control Cable |
| Includes Ground | Yes |
| Conductor Material | Copper |
| Conductor Color Code | Black with White Numbers |
| Resistance Properties | Flame Retardant |
| Conductor Configuration | Single |
| Manufacturer Part Number | CF77-UL-15-18-25 |
| Minimum Bend Radius Factor - Fixed | 4 x OD |
| Minimum Bend Radius Factor - E-Chain | 6.8 x OD |
| Minimum Bend Radius Factor - Flexible | 5 x OD |
